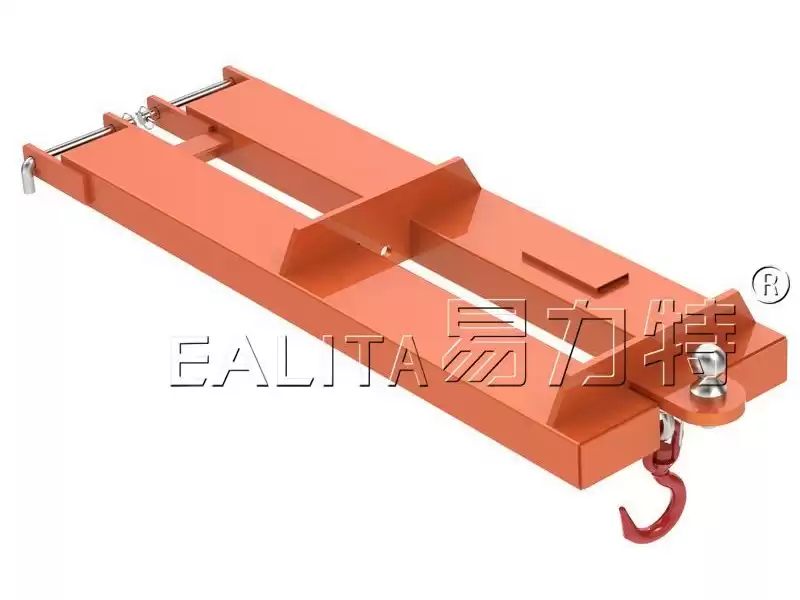

The type F-FST200 Forklift Slip-on Hook Jib has been designed as a simple Slip-on Jib attachment with 2 hook positions 585mm apart and a diameter 50 Tow Ball fitted at the front of the Jib.

- Both hook positions have a WLL of 2000kg – refer diagram below. When using the Tow Bar, the Tow

weight is not to exceed 500kg and the minimum capacity of the Forklift is to be 2 Tonne.

- The Unit is supplied with 2 Fork Arm Retaining Toggle Pins to prevent the Jib from moving off the fork arm.

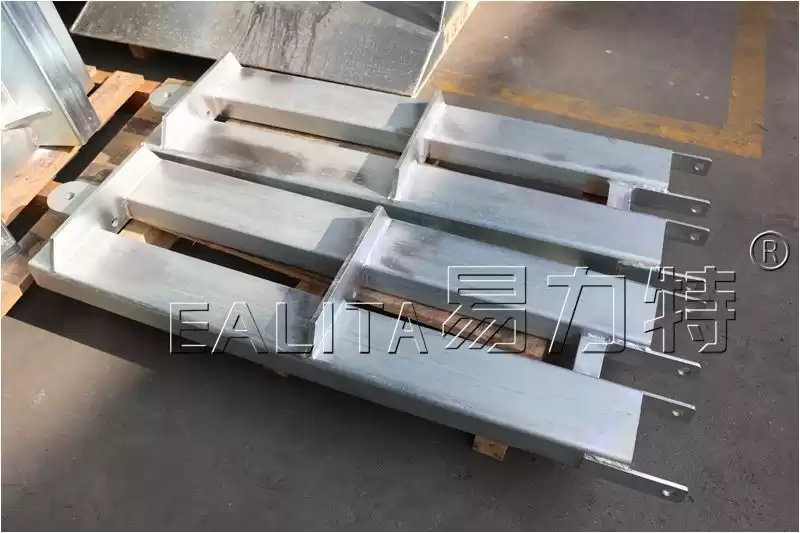

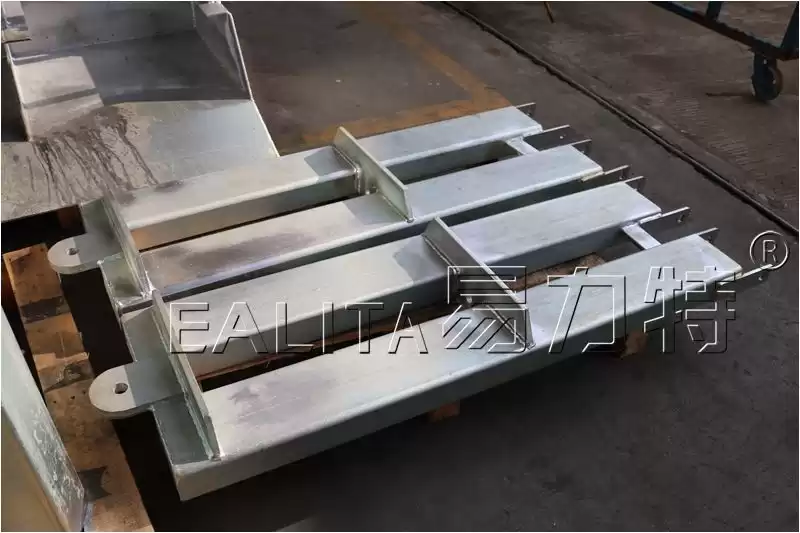

- The Standard Finish on the Type FST200 Forklift Slip-On Jib is Galvanized.

Specification

· Code: 03.01.04.0011

· Working Load Limit (WLL) 2000kg

· Maximum Towing Capacity 500kg

· Unit Weight 45kg

· Load Centre 1160mm

· Pocket Size 140 x 65

· Pocket Centres 250 mm

· Horizontal C of G 655mm

· Vertical C of G -30mm
