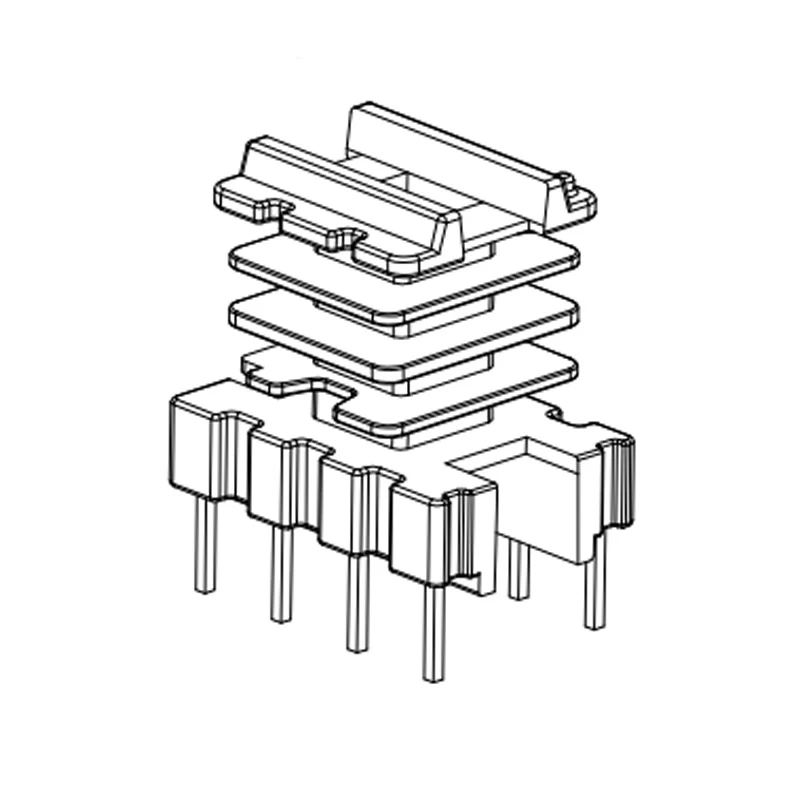

Four Slots EE16 Vertical Transformer Bobbin With 4+4 Pins

4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=5mm Parallel Distance=10mm

Size=17.8mmX12.5mmX17.7mm



EE16 Horizontal bobbin ,four slots,phenolic material,Dip Bobbin,4+4 pins ,we located in AnHui ,our company covers area of 3000 sqm and we are one of the largest components manufactures in our province.


Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EE1677(V4+4P4F)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name:Four Slots EE16 Vertical Transformer Bobbin With 4+4 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people , huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5

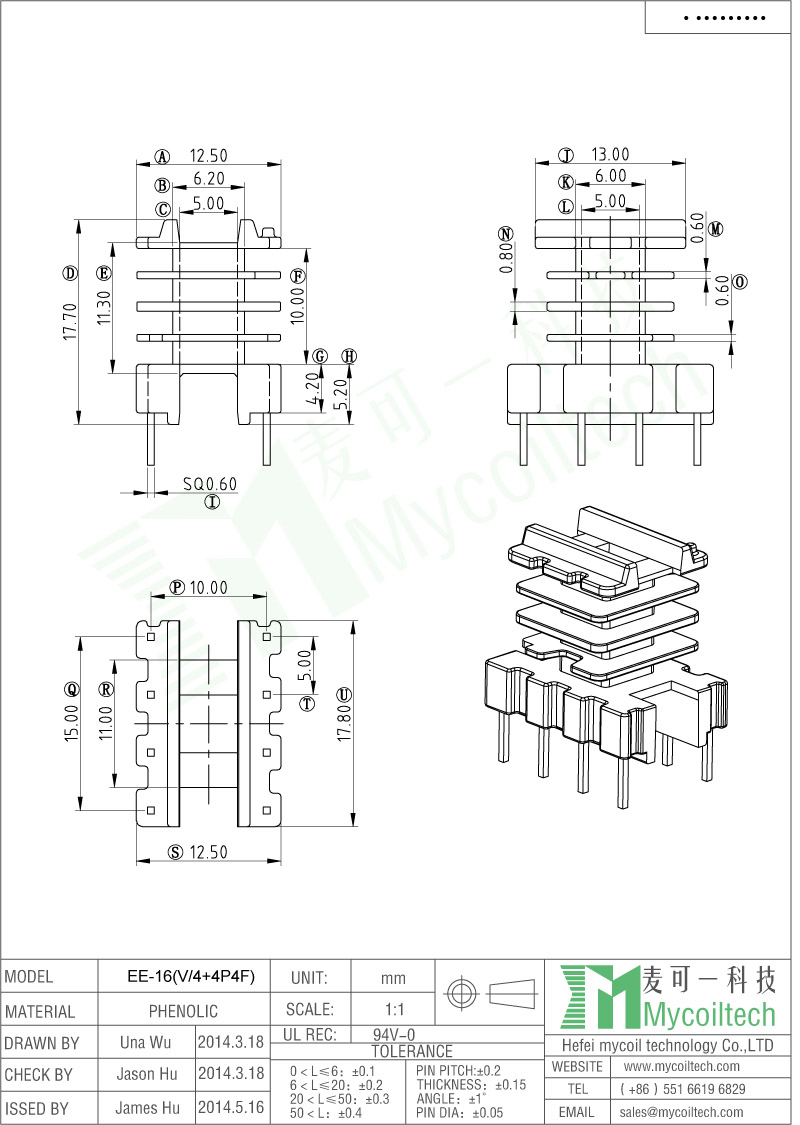

Product Specification

Four Slots EE16 Vertical Transformer Bobbin With 4+4 Pins
