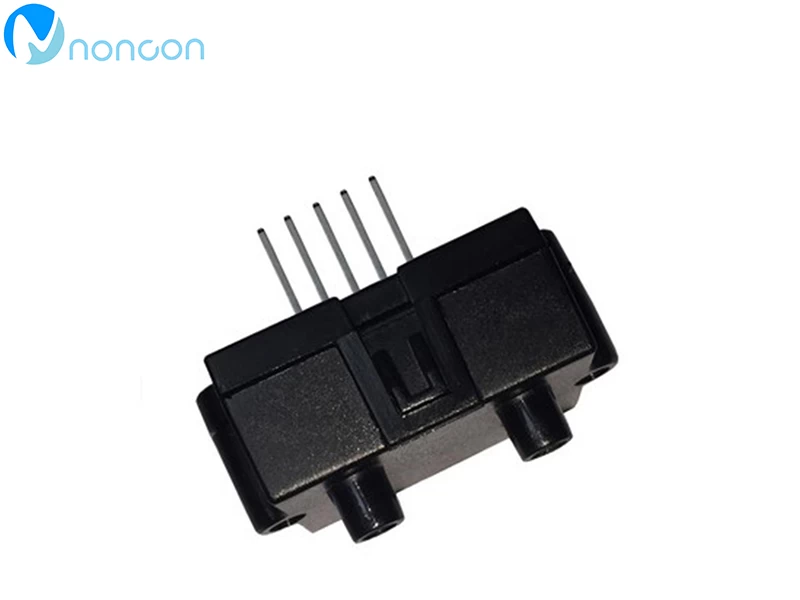

FSP1000 Series Digital Differential Pressure Sensor

Precision:±(2.0+0.2FS)%

Repetitive:±0.5%

Maximum working pressure:0.2MPa



Product features

Designed for HVAC and CPAP equipment.

High sensitivity at low pressure.

Has temperature and altitude compensation.

Fast response time, providing both linearized digital and analog signals.

Package structure compact, low power design.


Technical parameters

parameter

Numerical

Unit

Differential pressure range*

±250±500

Pa

±1.0±2.0

Inch H2O

Working power supply

3.0~3.6

Vdc

Output way

Linear, analog voltage/I2C

Analog output range

0.4~2.4

Vdc

Digital output resolution

12

bit

I2C clock frequency

100

KHz

I2C address

Read 0×a1,write 0×a0

Electrical interface

Five needles2.54mm

Response time

5

ms

Resistance to flow

<95ml/min @500Pa

Precision

±(2.0+0.2FS)

%

Repetitive

±0.5

%

Temperature drift

<0.3%/10

Working temperature

-5~+65

Zero drift

±0.5

Pa

Zero stability

±0.1

Pa/year

Zero repeatability

±0.1

Pa

At an altitude of influence

No (full compensation)

Storage temperature

-40~+85

Maximum working pressure

0.2

MPa

Working humidity

0~100(No ice, no dew)

%RH

Warm up time

50

msec

Vibration standard

20g;MILSTD883E,Method 2002.4

compliance

RoHS and REACH
