Product Identity

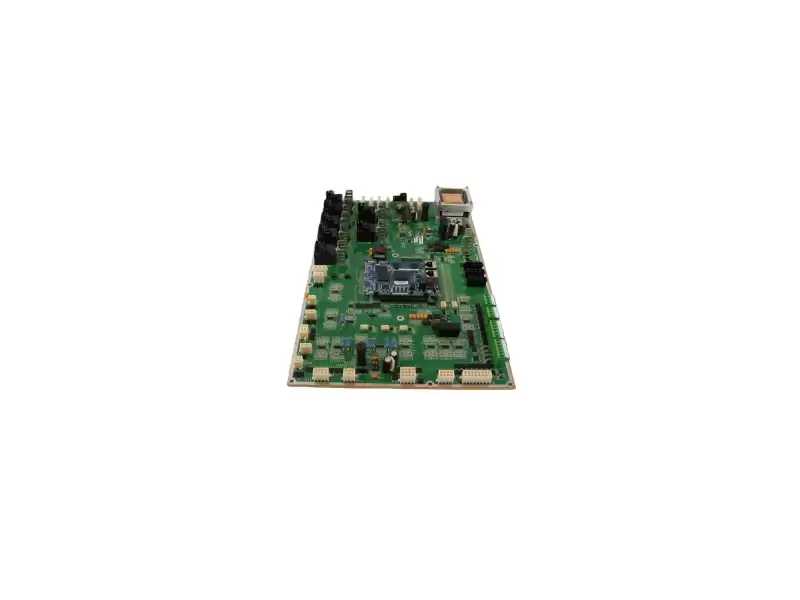

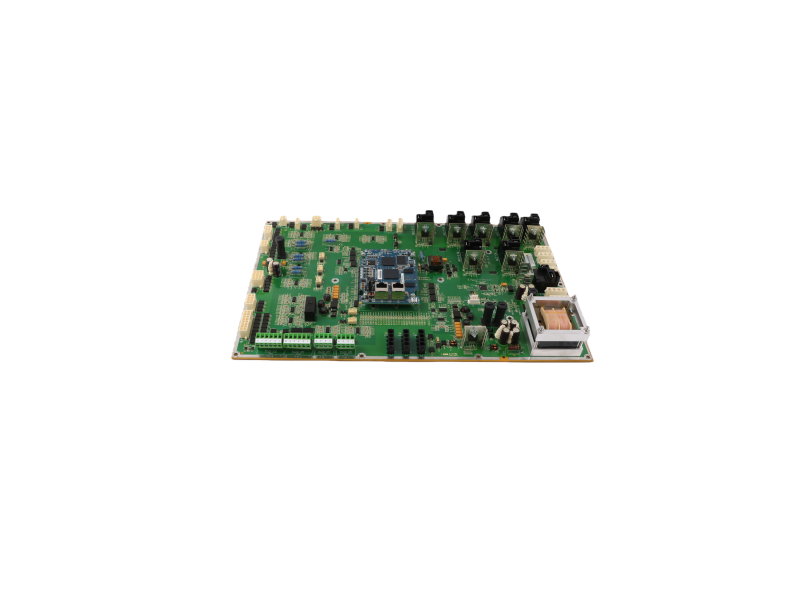

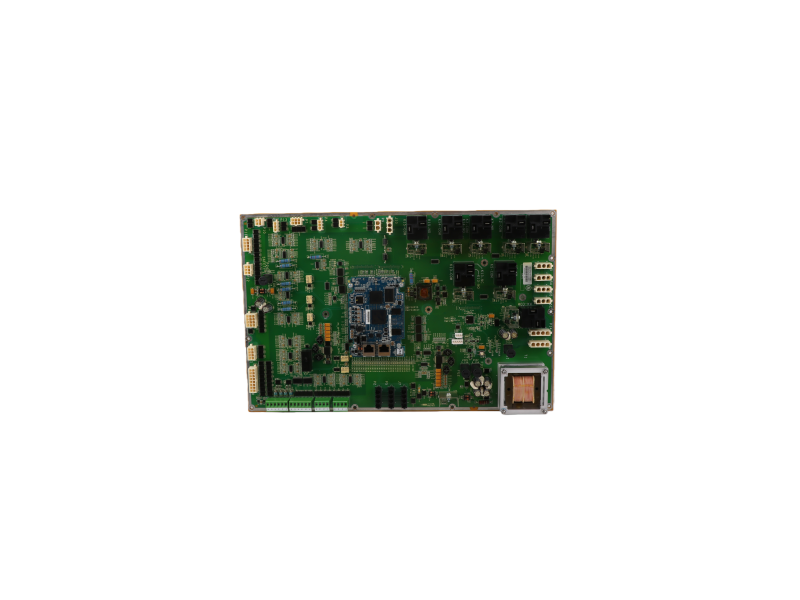

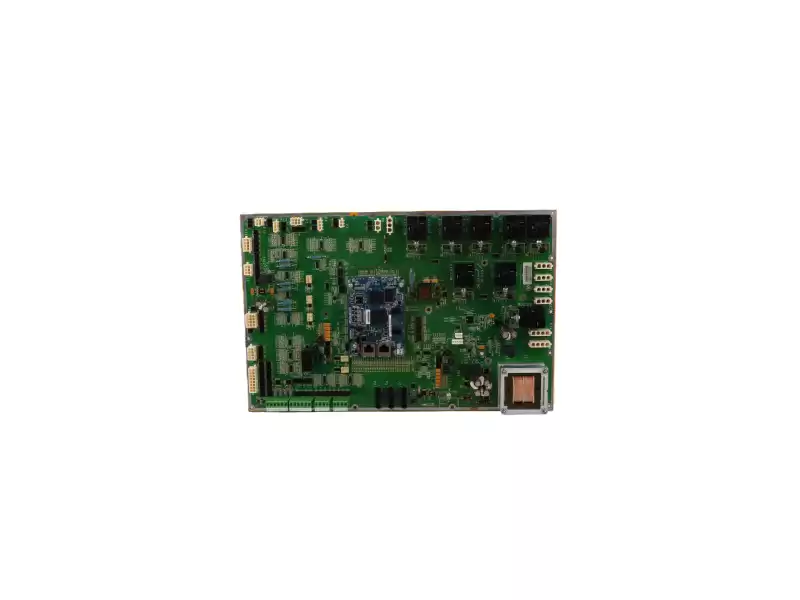

IS200WEMAH1AEA: original WEMA board for Mark VI (Simplex / TMR)
IS215WEMAH1BB: hardware-revision upgrade, Mark VI & VIe compatible, rated to +85 °C
Core Specifications
|
Key item
|
IS200WEMAH1AEA
|
IS215WEMAH1BB
|
|
Function
|
Wind-turbine “local brain” – acquires wind-speed, nacelle temp, vibration, pitch & yaw feedback; distributes 24 VDC commands to actuators
|
Same, plus reinforced filtering & dual-supply support
|
|
Digital inputs
|
27, 24 VDC, opto-isolated
|
27, isolation 1.5 kV
|
|
Analog inputs
|
2 × PT100 / 4-20 mA
|
2, 16-bit, improved CMRR
|
|
Relay outputs
|
9 (C/O, 5 A, 250 VAC)
|
9, silver-alloy contacts, 100 k ops @ 5 A
|
|
Solid-state outputs
|
3 (1 A, 60 V)
|
3, short-circuit proof
|
|
Operating temp
|
30…+70 °C
|
40…+85 °C
|
|
Coating
|
Std. acrylic
|
Thick polyurethane, 1 000 h salt-spray
|
|
MTBF
|
>300 kh @ 40 °C
|
>400 kh @ 55 °C
|
|
Hot-swap
|
Yes, <30 s swap time
|
Same, LED health ring added
|
|
Firmware
|
≥G.03.04
|
≥H.01.05 (auto-detect)
|
Application Notes
1. Onshore retrofit: IS215WEMAH1BB drops into the same slot and terminal block; only a minor tool-less firmware push is required.
2. Offshore/new towers: choose IS215 for its wider temperature window and conformal-coat thickness.
3. Both boards support dual-power feed (18-32 VDC) for redundant battery segments.
Summing up
PLC Autocontroller product is 100 % original product made by the manufacturer.
We distribute PLC, DCS, FANUC, ABB and much more; we have over 20 000 automation parts available.
If you want to know more details, please call May +86-18106909650 or e-mail ab@mooreplc.com for more products.
