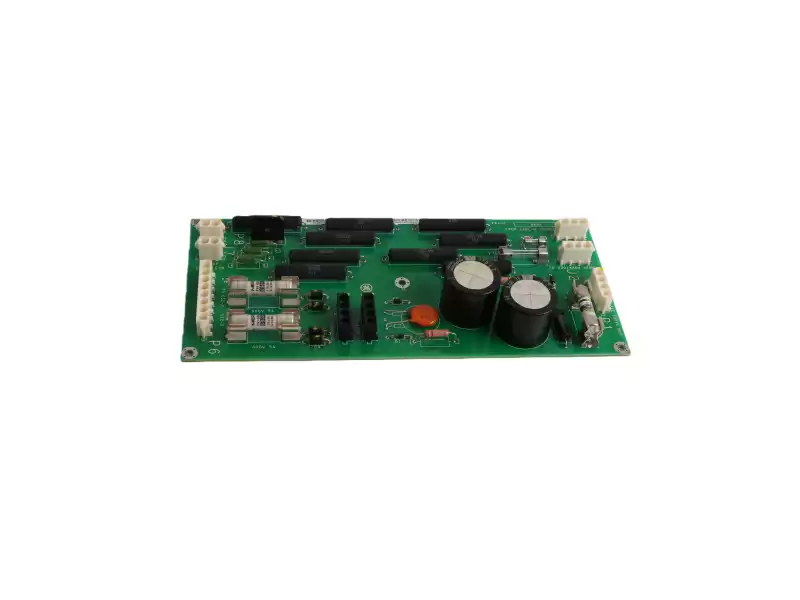

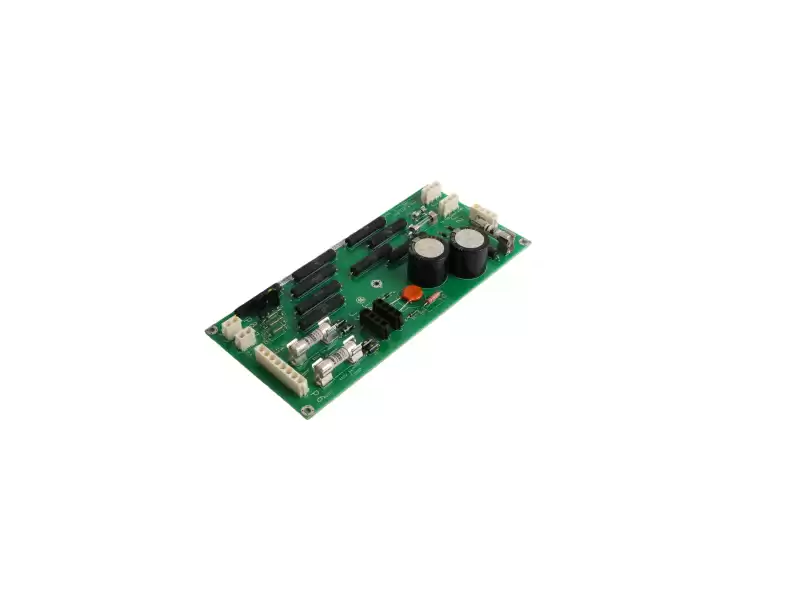

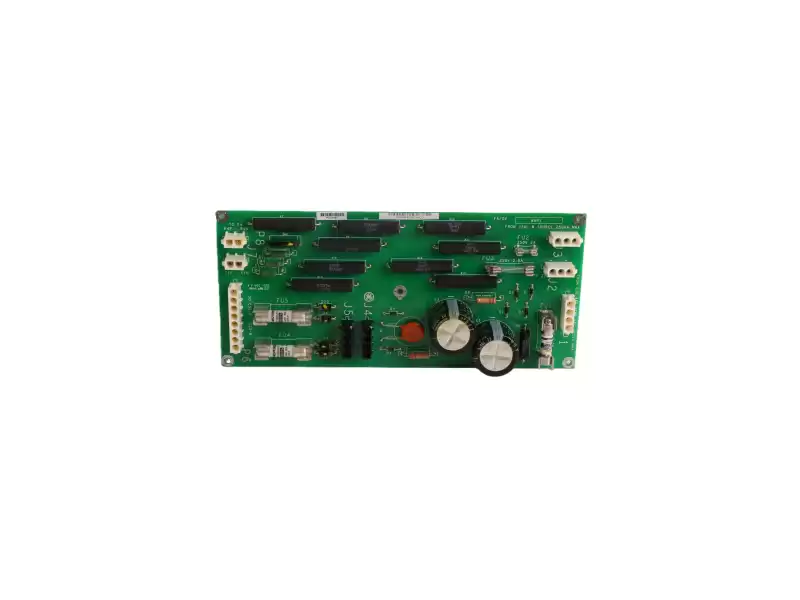

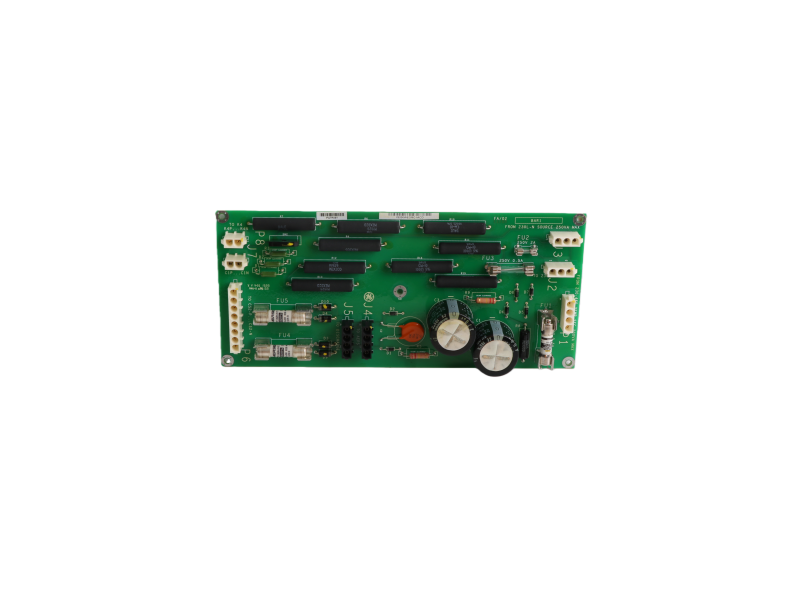

GE IS200WEORG1ACD Relay Output Terminal Board

1. Quick Facts

Part number: IS200WEORG1ACD

Series: Mark VI / VIe

Function: 12 Form-C relay outputs, contact rating 250 Vac / 5 A, 30 Vdc / 3 A

Field terminals: 37 rising-clamp, max. 6 mm²

Coil drive: 28 Vdc via J1/J2 from I/O pack

Isolation: 1 500 V rms contact-to-ground

Surge: IEC 61000-4-5 2 kV common mode

Operating temp.: –25 … +70 °C

Certifications: CE, UL, RoHS

2. Key Features & Application

Plugs directly into Mark VIe I/O carrier—no external jumper cables needed.

Built-in RC snubber & varistor on each coil for EMI suppression and longer contact life.

LED indicator per relay (red = energised) visible through clear cover.

Ideal for breaker trip/close, solenoid drivers, alarm annunciation in gas/steam turbines, compressors and HRSG plants.

3. Compatible I/O Packs

IS200WROBH1A – 12-channel relay output pack (preferred)

IS200DSPXH1B – when used with external driver board

4. Typical Wiring (each channel)

COM : common contact

NO : normally-open

NC : normally-closed

Coil : 28 Vdc driven by I/O pack
