Quick Identification

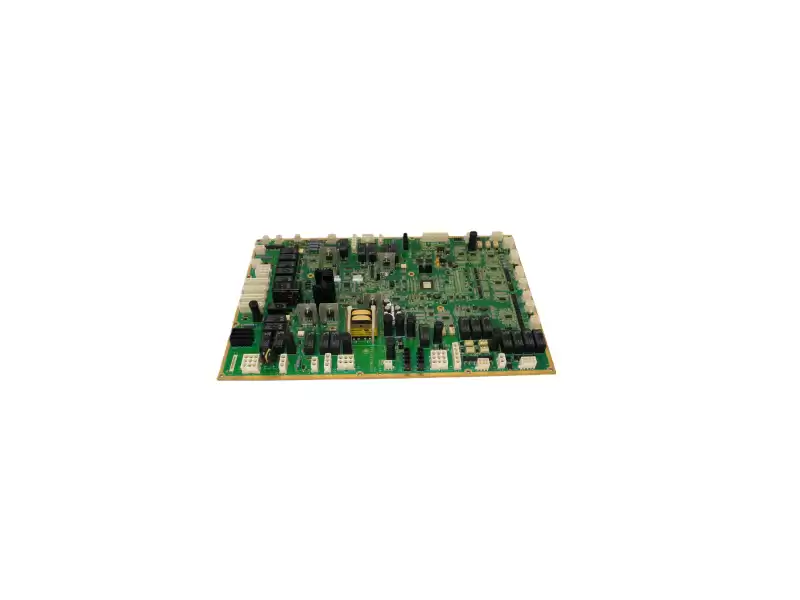

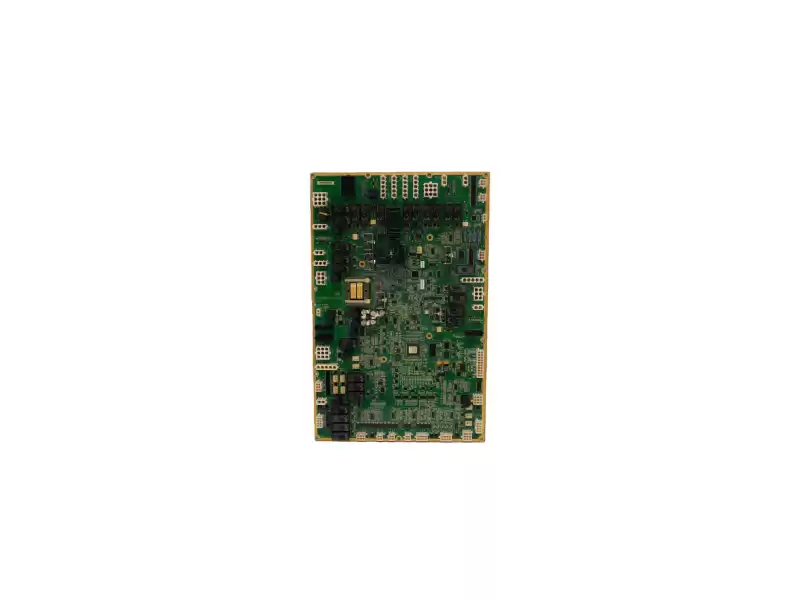

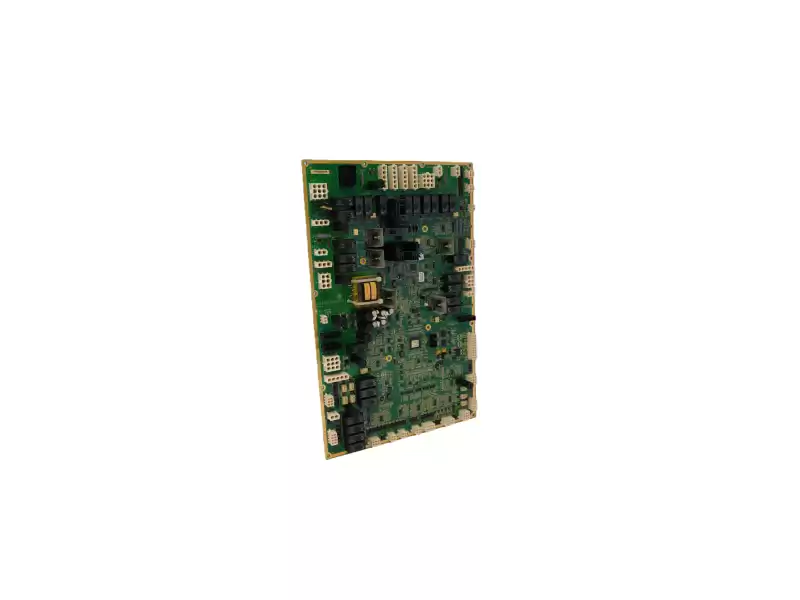

Model: IS200WETBH1BAA
Series: GE Speedtronic Mark VI / VIe
Function: 16-ch Isolated I/O & Comms Carrier
Condition: Brand-new, factory-sealed, one-year global warranty
Key Specifications (25 °C unless noted)
|
Parameter
|
Value / Range
|
Remark (test ref.)
|
|
Input power
|
24 VDC ±10 %, 120 mA max
|
Galvanically isolated
|
|
I/O channels
|
16, software-configurable
|
AI/AO/TC/RTD/DI/DO
|
|
Isolation
|
Ch-ch 250 V; ch-bus 1.5 kV
|
Reinforced, 1 min withstand
|
|
Accuracy
|
±0.05 % F.S. (analog)
|
25 ppm/°C drift
|
|
Update time
|
5 ms all ch.
|
Simultaneous sampling
|
|
Comms ports
|
10/100 Mb Ethernet, Profibus-DP, P2P
|
Triple-redundant capable
|
|
Operating temp.
|
–40 … +70 °C
|
Conformal-coated
|
|
Storage temp.
|
–40 … +85 °C
|
IEC 61131-2
|
|
Shock / Vibration
|
15 g / 3 g
|
5 Hz … 150 Hz sweep
|
|
Dimensions (PCB only)
|
160 × 160 × 12 mm
|
Fits standard VME slot
|
|
Weight
|
0.14 kg (board) / 1.56 kg (w/ clam-shell)
|
Shipping weight shown in quote
|
Mechanical & Connectors
65-plug array: 2×20, 4×12, 4×6, plus P1(10-pin), P2(6-pin), P3(4-pin) vertical headers
30+ relays, 9 regulators, 10 fuses, 7 heat-sinks, 1 isolation transformer
IP20 front; optional IP54 metal cover for offshore cabinets
FAQ
Q1: Is your product new or refurbished?
A1: All our products are 100% original and brand new, with a one-year warranty.
Q2: How long will it take for the goods to arrive after placing an order?
A2: We ship the products immediately after receiving payment.
Delivery from China usually takes 3–5 business days.
Q3: Could you offer a discount?
A3: Please contact May to discuss bulk or special discounts.
Q4: Do you provide datasheets?
A4: Yes. Please contact May to receive the datasheets.
Q5: Can you provide a certificate for the items?
A5: Yes. Please contact May to verify and obtain the certificate.
