1. Quick Facts
|
Item
|
Specification
|
|
Part number
|

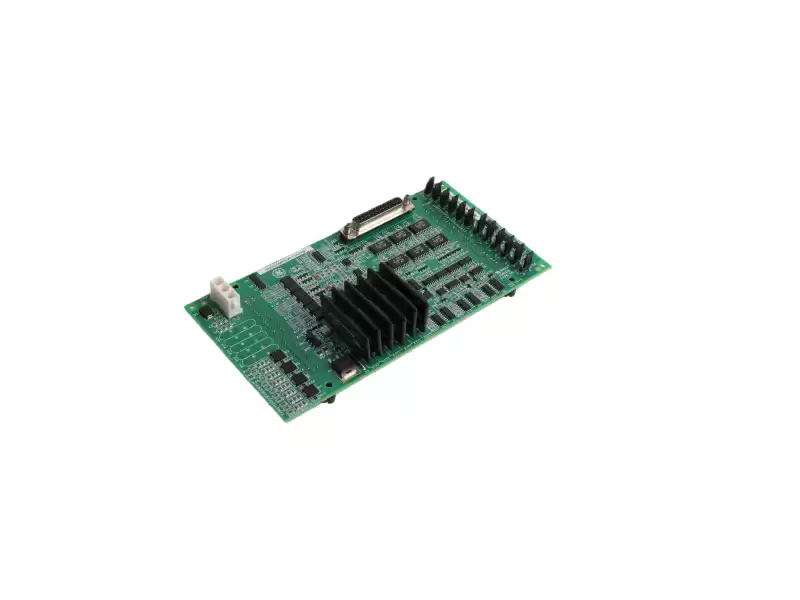

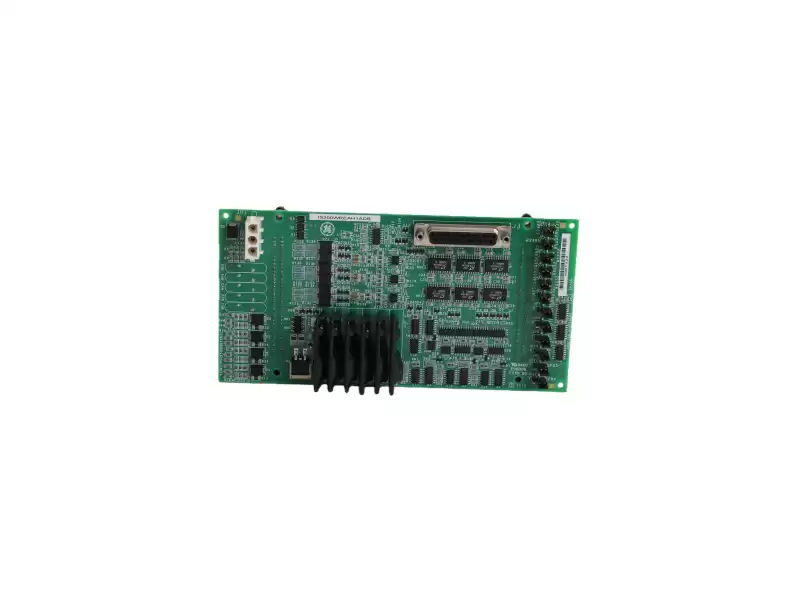

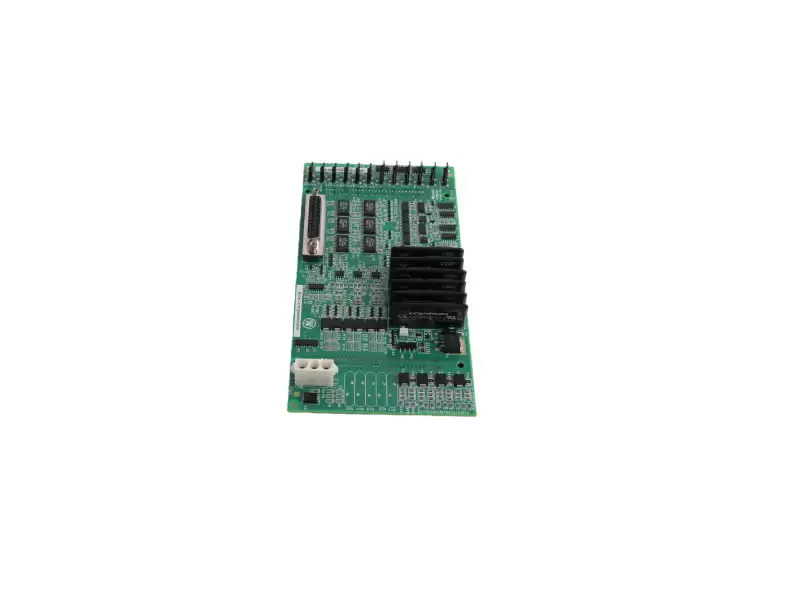

GE IS200WREAH1ADB
|
|
Series
|
Mark VI / VIe
|
|
Function
|
24-ch. digital input terminal board with passive distribution, surge & RFI suppression
|
|
OEM docs
|
GEH-6721 (Mark VIe I/O Manual), GEH-6722 (Installation)
|
|
Dimensions
|
267 mm × 203 mm × 38 mm (W×H×D)
|
|
Weight (packed)
|
0.9 kg
|
|
Connectors
|
3× 40-pin vertical header (J1/J2/J3) to I/O pack
|
|
Field terminals
|
48× rising-clamp, 6 mm² max., 150 V rated
|
|
Isolation
|
1 500 V rms channel-to-ground
|
|
Surge withstand
|
IEEE C37.90.1 (4 kV fast transient)
|
|
Temperature
|
-25 … +70 °C operating
|
|
Humidity
|
5 … 95 % RH non-condensing
|
|
Certifications
|
CE, cULus, RoHS
|
2. Key Features & Application
· Plug-and-play replacement for legacy IS200WREAH1A or IS200WREAH1ACB in Mark VI steam/gas turbine panels.
· High-density DIN-rail footprint – saves 30 % cabinet space versus older boards.
· Built-in MOV & gas-tube surge protection extends DI pack life in harsh power-plant environments.
· Gold-plated contacts ensure <5 mΩ resistance after 500 mating cycles.
· Compatible with both 125 V dc and 24 V dc wetting voltages (field selectable via jumper JP1).
3. Ordering & Logistics
|
Service
|
Detail
|
|
Condition
|
Factory-sealed, original GE box
|
|
Warranty
|
12 months from B/L date
|
|
Shipment
|
DHL/FedEx/UPS/TNT, 3-5 days worldwide
|
|
Payment
|
T/T, Alipay
|
