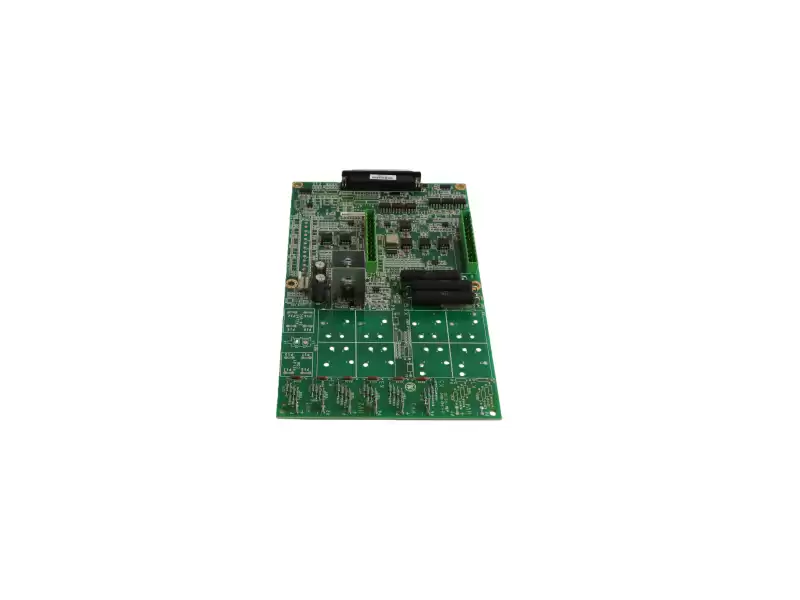

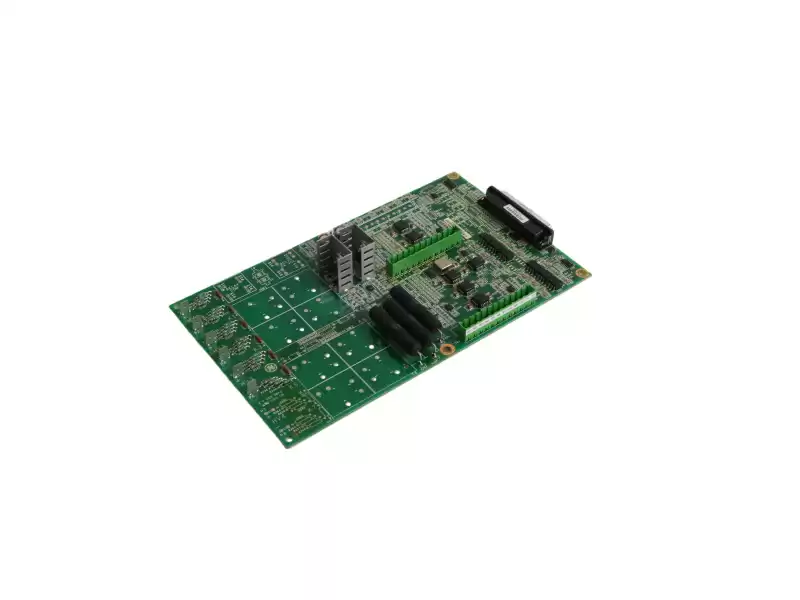

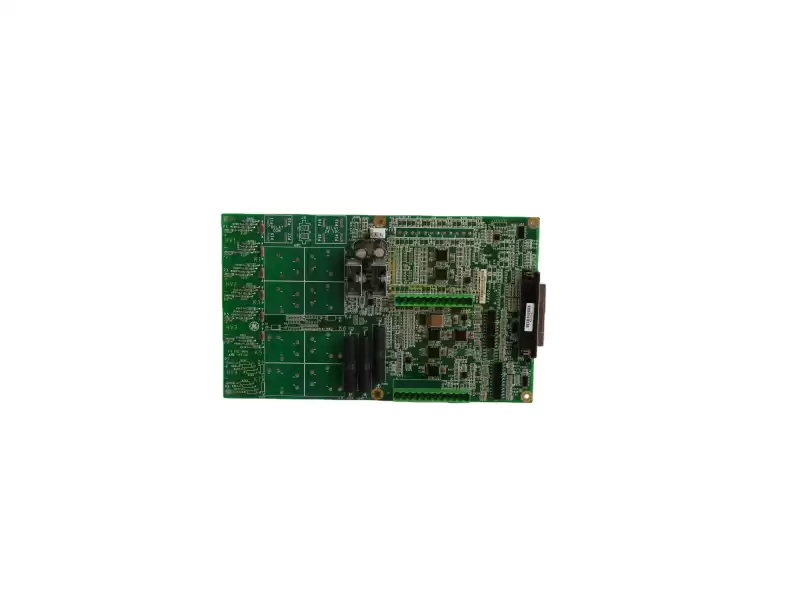

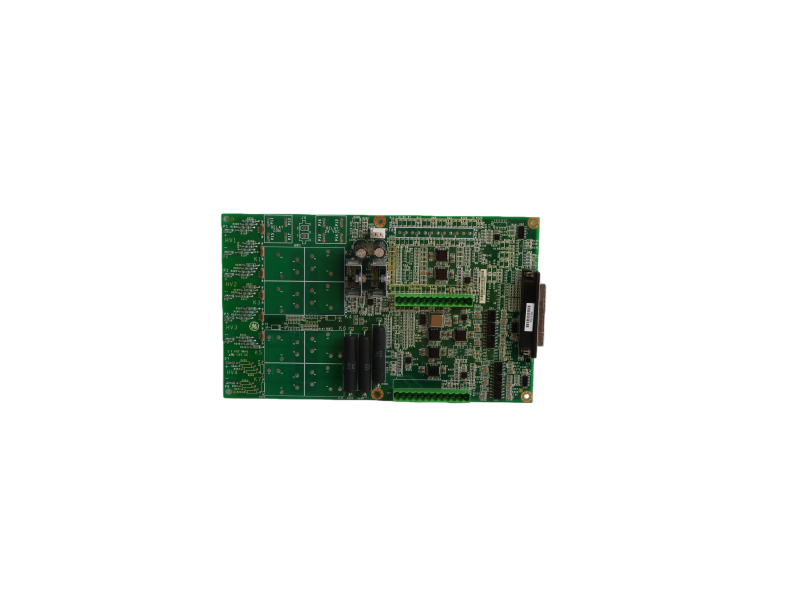

GE IS210AEAAH1BKE (short name: IS210AEAAH1) is an RST analog I/O terminal board used in GE Mark VI turbine/generator control systems.
Mounted in the core of the I/O cabinet, it routes field analog signals (temperature, pressure, valve position, etc.) to the corresponding I/O Pack and provides surge protection, shield grounding and signal isolation.
The board is an essential link in both the turbine control loop and the protection system.
Key Specifications
|
Item
|
Description
|
|
Part number
|
IS210AEAAH1BKE
|
|
Series
|
Mark VI / VIe
|
|
Type
|
RST analog I/O terminal board
|
|
Dimensions
|
26 cm × 15.2 cm × 3 cm
|
|
Weight
|
0.52 kg
|
|
Field terminals
|
48 rising-clamp points, max. 6 mm²
|
|
Connectors
|
3×40-pin header (J1/J2/J3) to I/O Pack
|
|
Channels
|
up to 24 differential analog inputs (depends on I/O Pack)
|
|
Isolation
|
1 500 V rms channel-to-ground
|
|
Operating temp.
|
–25 … +70 °C
|
|
Certifications
|
CE, UL, RoHS
|
Typical Applications
· Gas & steam turbine Mark VI control cabinets
· Excitation system analog acquisition
· Power-plant protection system (PPS) analog expansion
Compatible I/O Packs
|
I/O Pack
|
Function
|
|
IS200DSPXH1B
|
14-bit differential analog input
|
|
IS200AEPAH1B
|
16-bit high-precision analog input
|
|
IS200EPSMG1A
|
28 Vdc power distribution
|
Service & Support (PLC Autocontroller)
100% brand-new original units, in stock in Xiamen
One-year warranty
GE official manual
Worldwide DHL/FedEx delivery in 3–5 days
