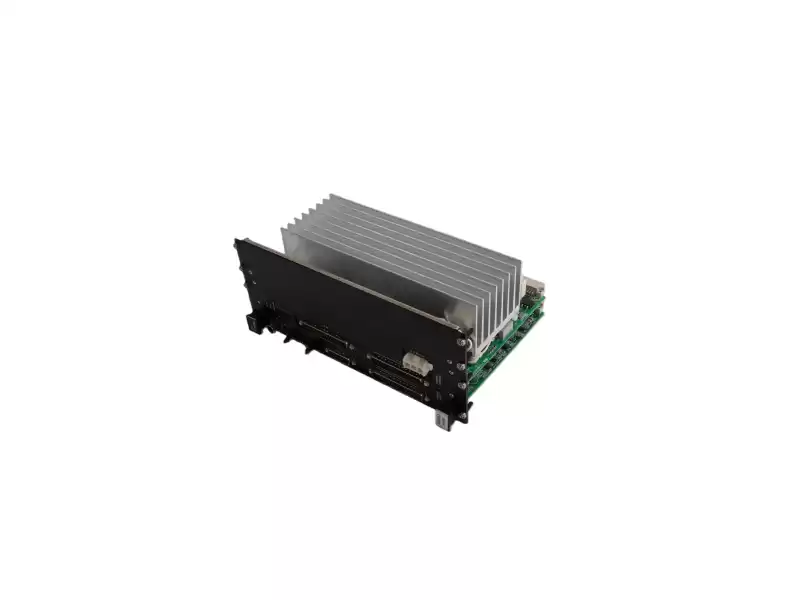

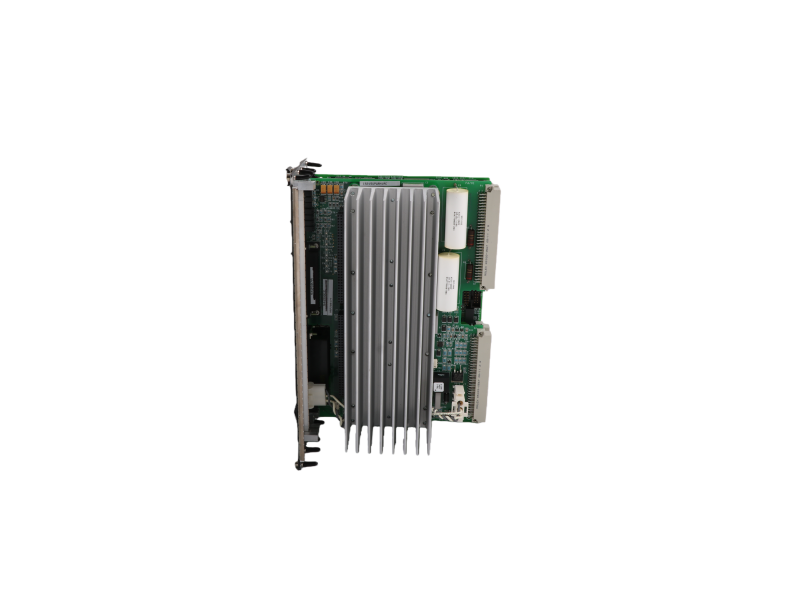

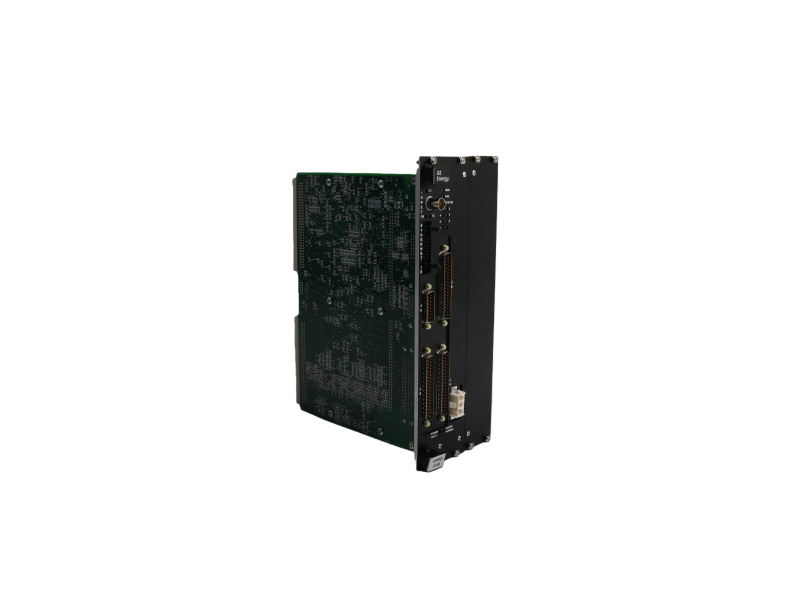

IS215VPROH1BE is the Emergency Overspeed Protection (EOS) / Main Protection Processor module—commonly called VPRO—within the GE Mark VI turbine control system.
It mounts inside a dedicated "Protection Module P" enclosure that is physically separate from the main control rack and communicates via IONet, delivering triple-modular-redundant (TMR) emergency trip, speed monitoring and synchronizing-check functions.
1. Hardware Outline
|
Item
|
Specification
|
|
Processor
|
PowerPC 8245, 533 MHz
|
|
Memory
|
256 MB DDR SDRAM (expandable to 512 MB)
|
|
Storage
|
16 MB Flash + optional CompactFlash
|
|
Power
|
24 VDC redundant inputs, ≈ 15 W consumption
|
|
Temperature
|
–40 °C … +85 °C
|
|
Form factor
|
6 U VME, 267 × 165 × 88 mm, ≈ 2.3 kg
|
|
Front panel
|
4 × LEDs (Run / Fail / Status / Reset)
3 × BNC (IONet 10 Base2)
1 × RS-232C diagnostic port
1 × USB 2.0 service port
|
2. Core Functions
Emergency Overspeed Protection (EOS)
Accepts signals from 3 passive magnetic speed pickups (MPU), calculates wheel speed independently; when speed > set-point (typically 110 % rated) it energizes trip relays instantly, de-energizing trip solenoids—response < 20 ms.
Triple-Redundant Architecture
Three fully independent VPRO boards (R / S / T) reside in the same enclosure; any two simultaneous alarms produce a trip. Boards can be extracted/inserted on-line without process disturbance.
Back-up Synchronizing Check
Via the TPRO terminal board it samples generator & bus PT (115 V); a phase-locked-loop algorithm allows closing only when phase difference ≤ ±1° and frequency difference ≤ 0.05 %.
Analog & Temperature Acquisition
On-board 9 thermocouple channels and 3 × 4-20 mA inputs for exhaust over-temperature, vibration, pressure lock-outs.
Trip Solenoid Drive
Through TREG terminal board it controls 3 × 125 VDC trip solenoids (ETD); supports on-line pulse testing and manual emergency-stop push-button.
3. Typical Applications
Gas turbines Frame 5/6/7 and steam turbines 150 MW – 600 MW
Combined-cycle plants, pipeline compressors, large industrial drives
Any rotating machine requiring hardware-level overspeed / over-temperature / synchronizing protection independent of the main controller
4. Ordering & Support
|
Part Number
|
Description
|
Stock
|
Lead-time
|
|
IS215VPROH1BE
|
VPRO Protection Module
|
YES
|
≤ 24 h
|
