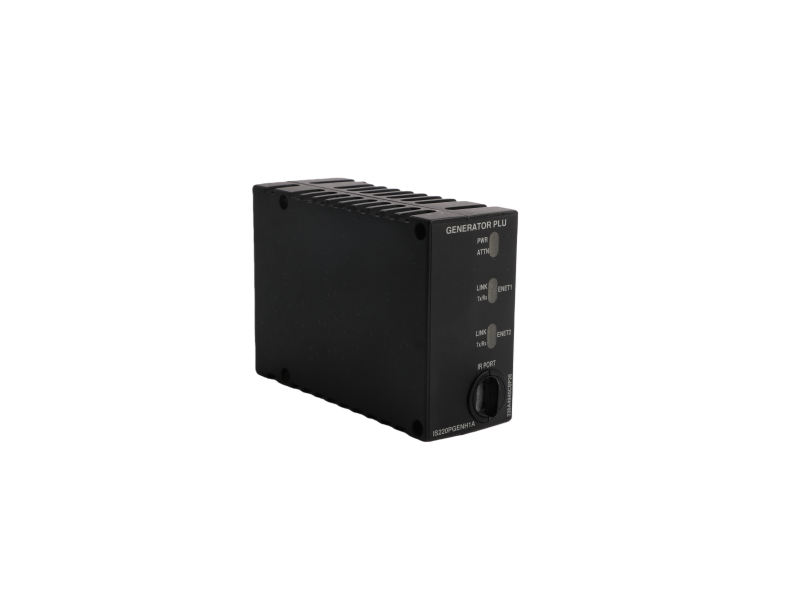

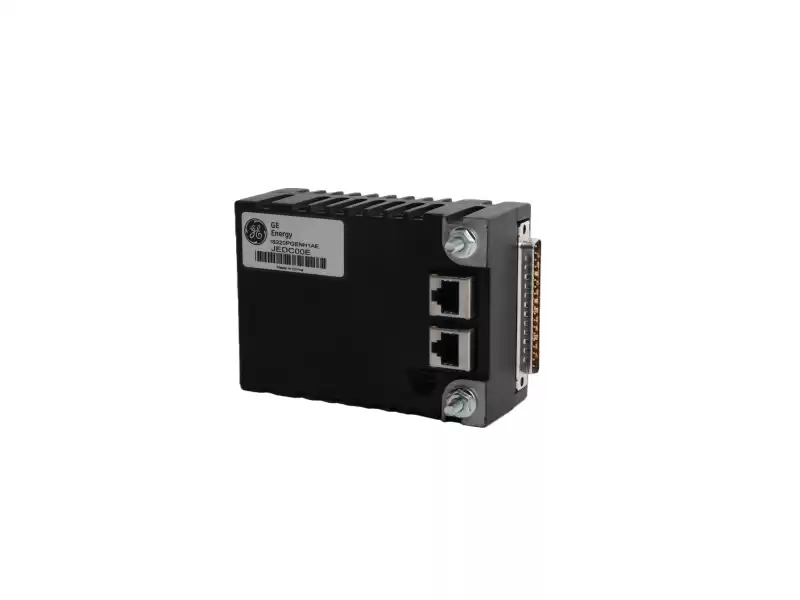

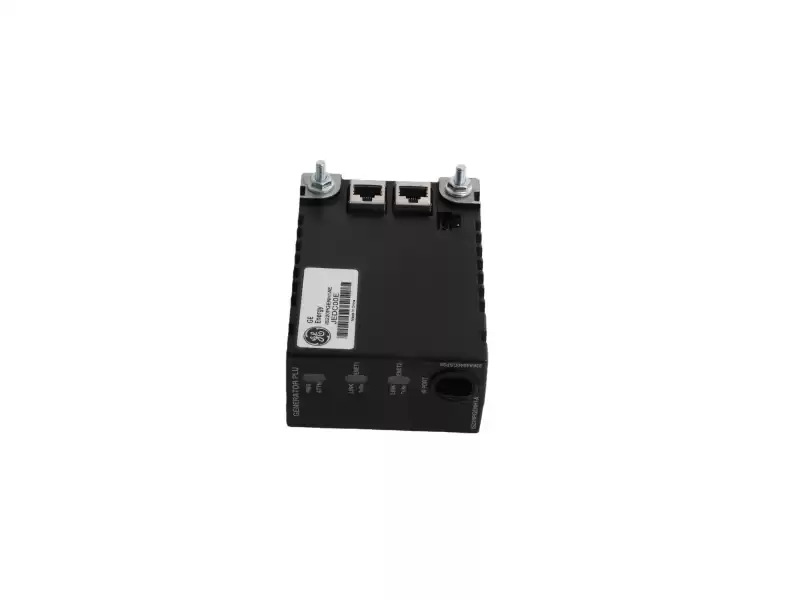

GE IS220PGENH1AE Power/interface module

Quick Spec

Value

Input range

18–36 VDC, redundant diode OR-ing

Output power

120 W continuous, 150 W for 5 s

Efficiency

92 %, <25 W self-dissipation

Protection

OTP, OVP, 2 A electronic fuse, hot-swap

Ethernet

2×RJ-45 100BASE-TX + 1×100BASE-FX (LC)

Ring recovery

<15 ms (RSTP)

Dimensions / mass

131 mm H × 64 mm W, 270 g

MTTR

<5 min (front insertion, tool-free)

Product Family

Short Description

Key Specifications

IS220PAOCH1A

Mark VIe

8-ch 0-20 mA analog output

IS220PAOCH1BE

Mark VIe

SIL-2 8-ch analog output

IS220PGENH1AE

Mark VIe

Power & Ethernet gateway

IS220PVIBH1A

Mark VIe

Vibration input (proximitor)

IS220PTURH1A

Mark VIe

Turbine I/O pack

IC695CPU320

RX3i PACSystem

1 GHz dual-core CPU

IC695CHS007

RX3i

7-slot universal back-plane

IC200ALG326

Series 90-30

12-bit 4-ch analog output

IC200CPUE05

Series 90-30

CPU with Ethernet

PVX012A0X3-SRZ

Critical Power

66 W DC-DC converter

APTS006A0X-SRZ

Critical Power

33 W PoL converter

IC694APU300

Series 90-30

High-speed counter
