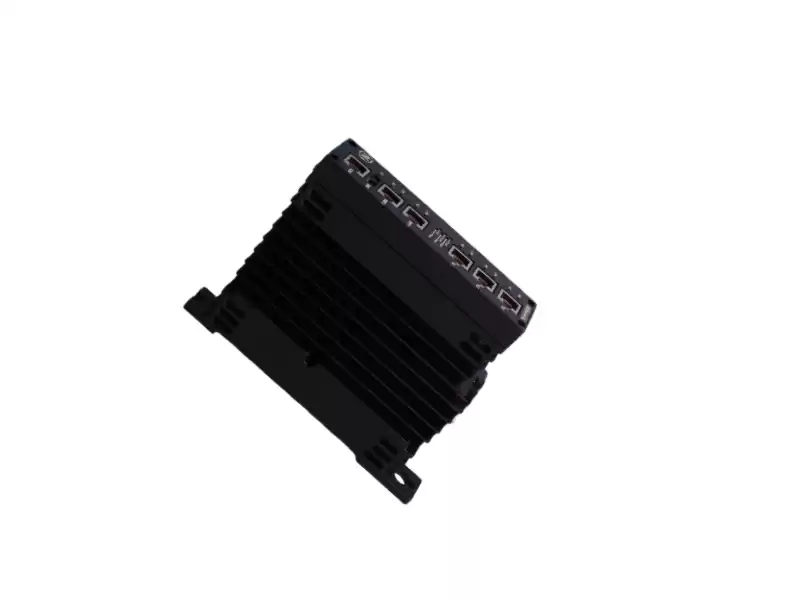

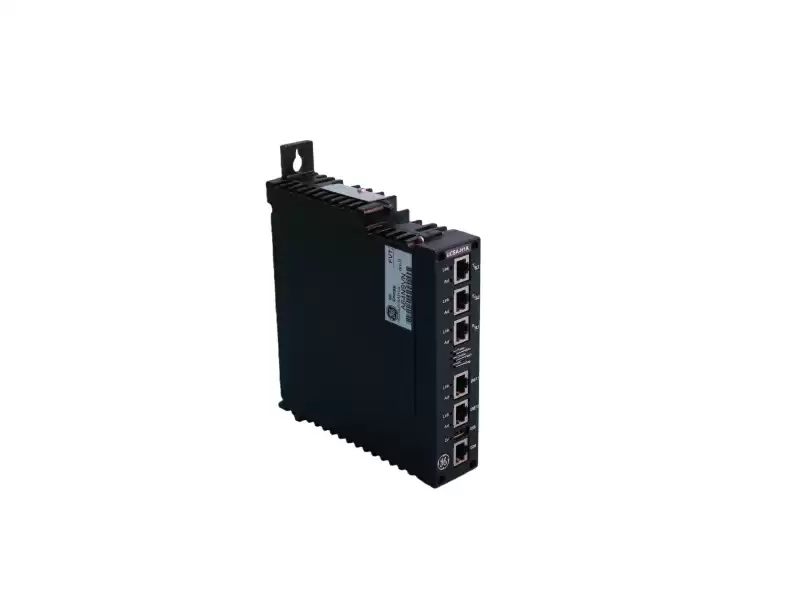

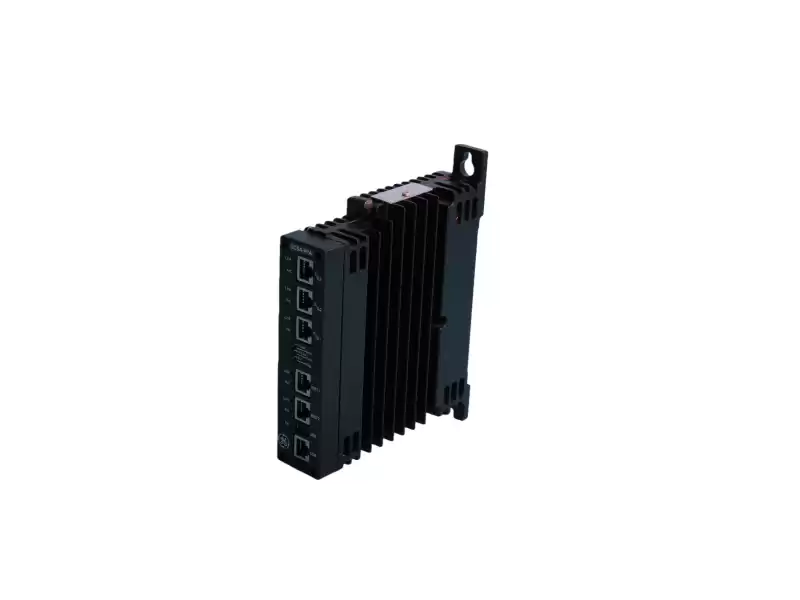

GE IS220UCSAH1A TMR main controller module

To 3,196,226 customers in 151 countries.

Can’t find the parts you need?

If your search doesn’t return the items you require, contact us—our team will help you locate the right components quickly and efficiently.

PLC Autocontroller sets the standard in service.

---Enjoy our professional support time and time again.

---A honest and trustworthy partner for all your automation needs.

---We believe fair pricing builds long-term customer relationships.

GE IS220UCSAH1A – What it is

IS220UCSAH1A is the “super-brain” of GE’s Mark VIe / Mark VIeS safety-rated control family—a Triple-Modular-Redundant (TMR) main-controller pack.
Located in the controller rack, it executes real-time control algorithms, protection logic and communication management for gas / steam turbines and delivers SIL 3 functional safety through three-way voting.

Key data

Highlights

1. Native TMR: three modules run and vote in parallel—single failure does not affect outputs

2. Deterministic: millisecond loop times for speed control, anti-surge, load sharing

3. On-line self-check: CPU, memory, comms and I/O continuously monitored; hot-swap keeps MTTR low

4. Multi-protocol: Modbus-TCP, EtherNet/IP, IEC 61850 built-in for easy DCS/SCADA/IT integration
