Product Positioning

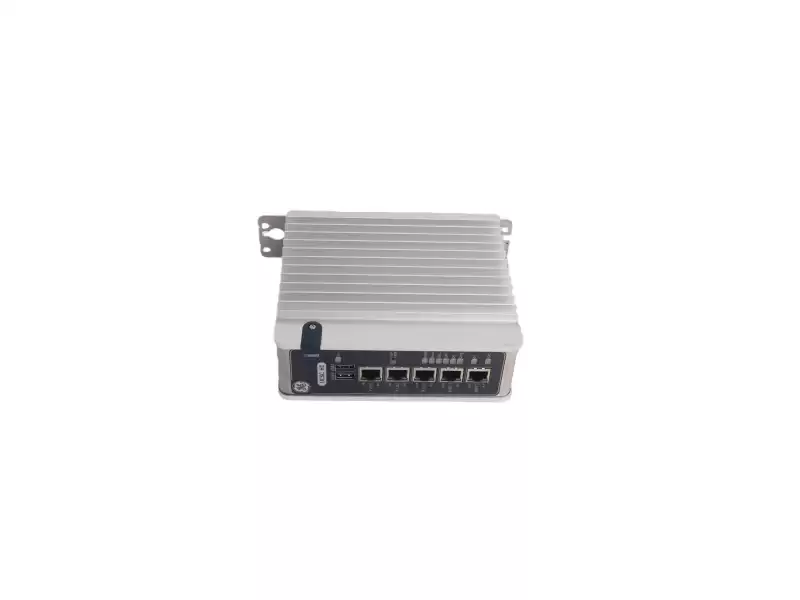

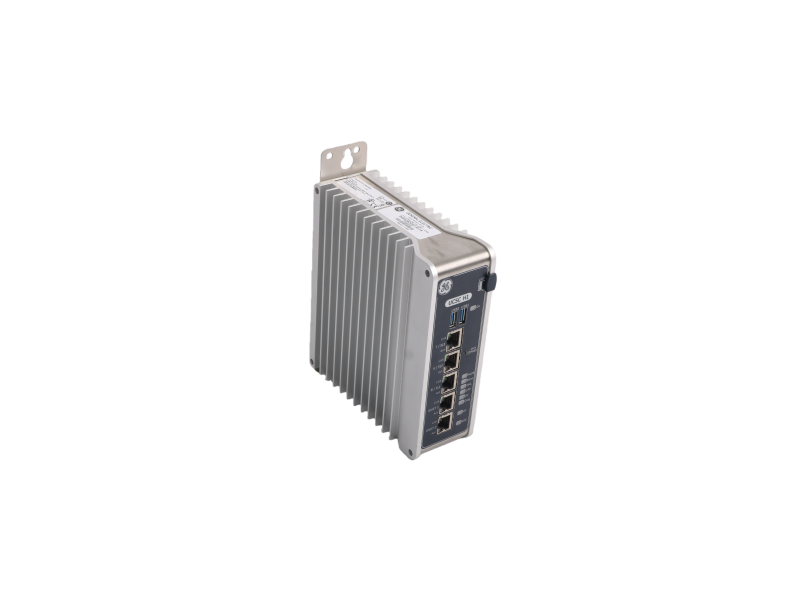

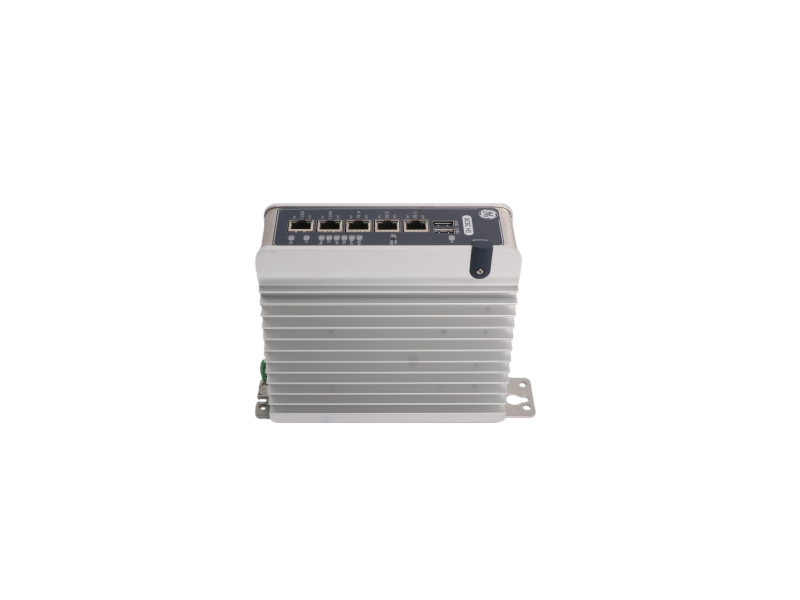

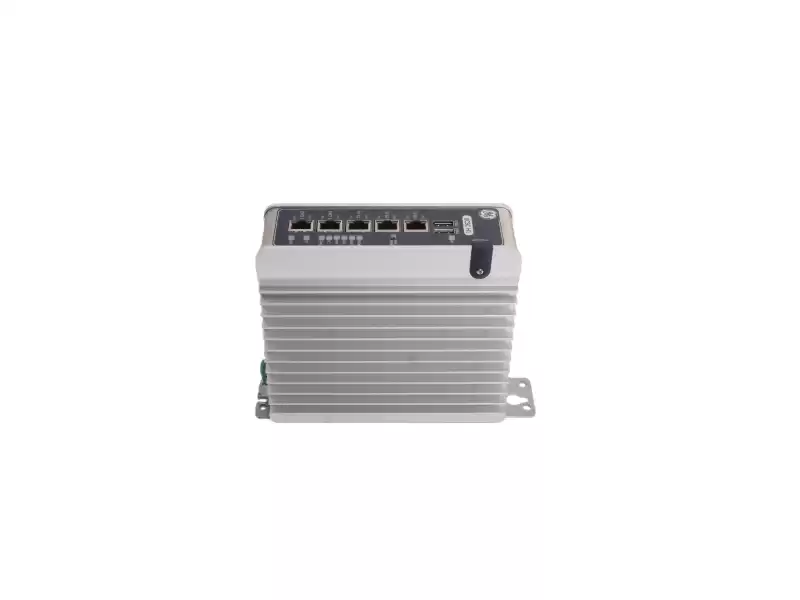

1 Device Type: Mark VIe quad-core industrial controller
2 Application Domain: High-performance real-time control & protection for gas/steam turbines, generators, compressors, pumps, pipeline stations, and chemical processes
3 Safety Level: SIL3-capable; supports TMR (Triple Modular Redundant), Dual and Simplex architectures
Hardware Architecture
|
Item
|
Specification
|
|
CPU
|
AMD V1000 family 64-bit quad-core 1.6 GHz (2.0 GHz option)
|
|
Memory
|
1 GB DDR3-1600 ECC
|
|
Storage
|
4 GB SLC Flash (2 GB system, 2 GB user)
|
|
On-board I/O
|
6 AI (±20 mA / ±10 V), 2 AO (0–20 mA / ±10 V), 4 DI/DO (24 VDC)
|
|
Communication
|
LAN 1 / LAN 2: 10/100/1000 Mbps Ethernet; Profinet, Modbus TCP/IP, Ethernet/IP, IONet, IEEE 1588 PTP
|
|
Power & Consumption
|
18–36 VDC isolated, redundant terminals; ≤ 15 W @ 24 VDC
|
|
Mechanical
|
134 mm × 200 mm × 65 mm (DIN-rail); ≈ 0.9 kg
|
|
Operating Temperature
|
–40 °C … +70 °C
|
|
Protection
|
IP 20 (EN 60529)
|
|
Cooling
|
Fan-less, aluminium chassis natural-convection
|
