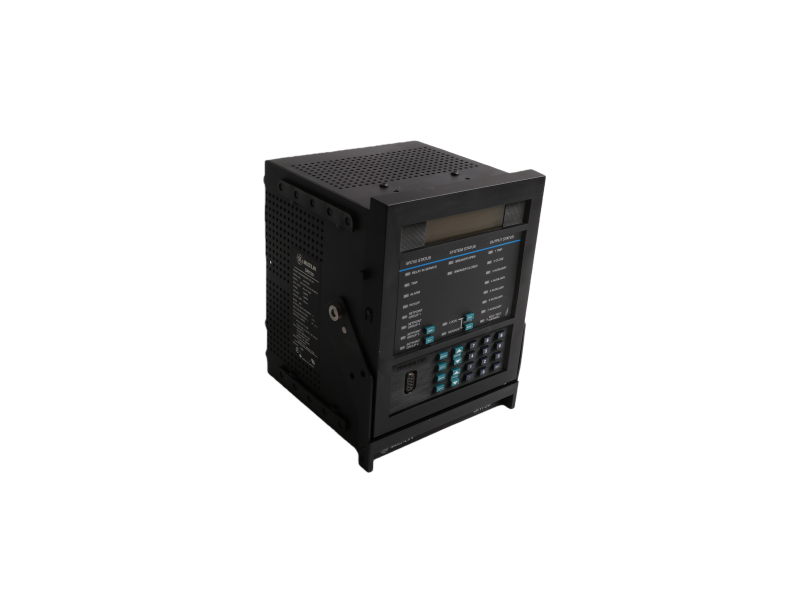

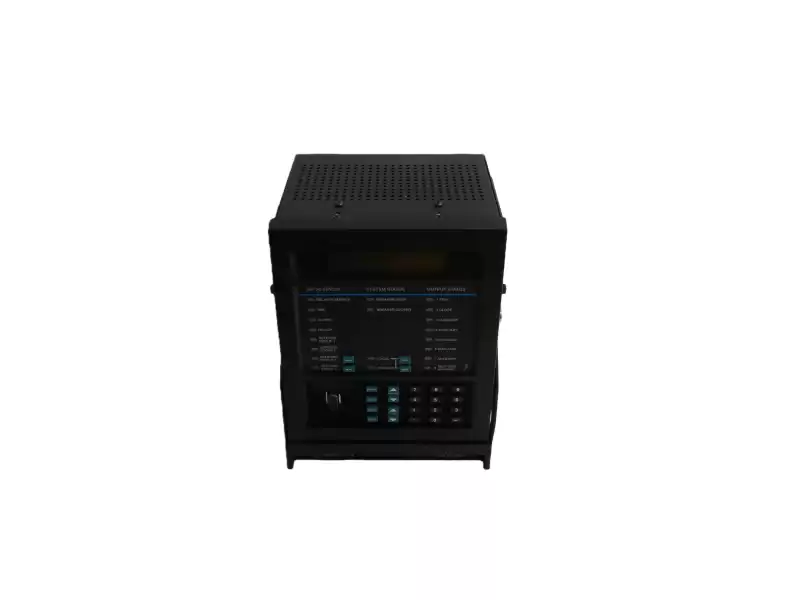

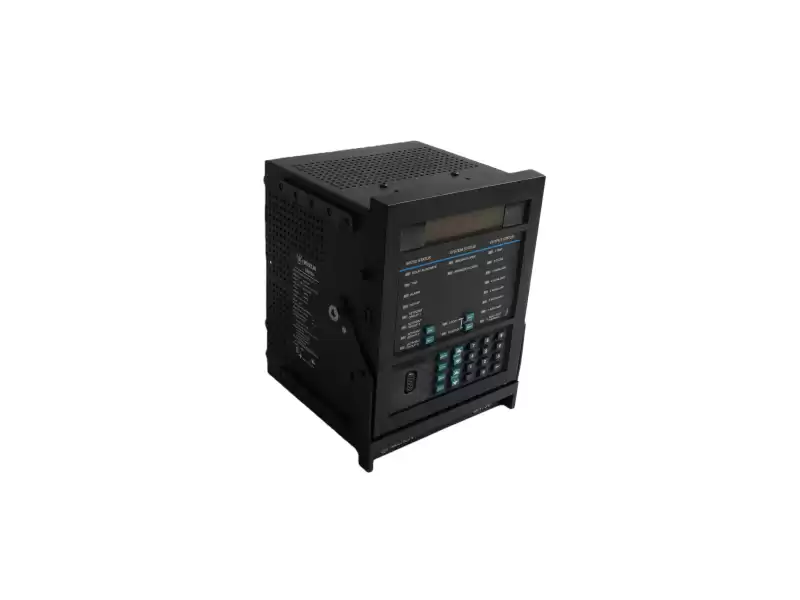

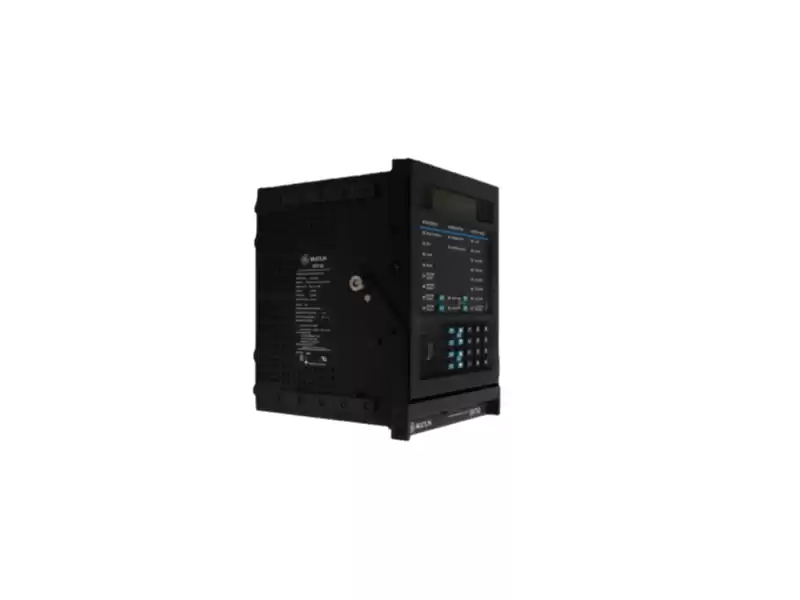

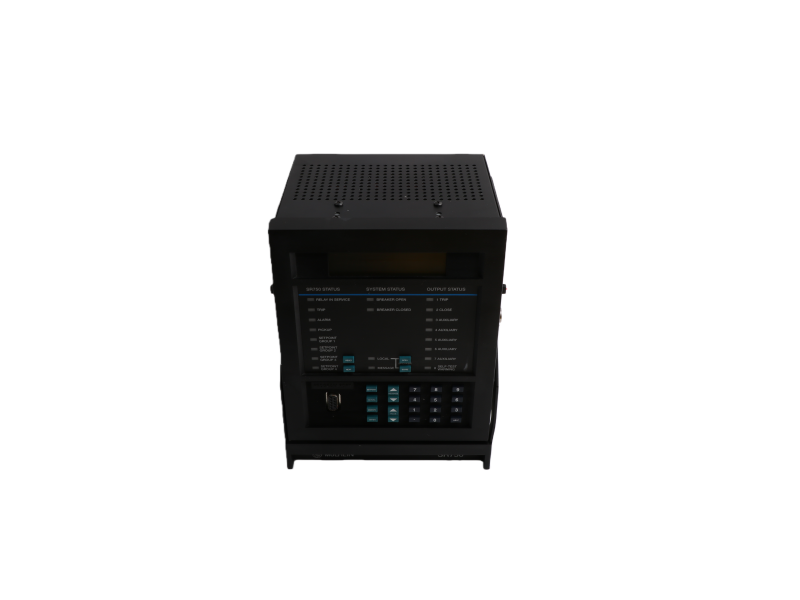

The GE Multilin SR750-P5-G5-S5-HI-A20-R is a high-performance Feeder Management Relay designed for comprehensive feeder protection, metering, monitoring, and control.
It belongs to the GE Multilin 750/760 Series, which is widely used in medium- and low-voltage distribution systems across industrial and utility networks.
Model Breakdown
|
Code
|
Description
|
|
SR750
|
Series type – 750 Series Feeder Protection Relay
|
|
P5
|
Phase current input: 5 A
|
|
G5
|
Ground current input: 5 A
|
|
S5
|
Sensitive ground current input: 5 A
|
|
HI
|
High control power version (88-300 VDC / 70-265 VAC)
|
|
A20
|
8 × 4-20 mA analog output channels
|
|
R
|
Red breaker LED indicator
|
Key Features
1. Feeder protection for industrial and utility power systems
2. Integrated metering, event recording, oscillography, and fault analysis
3. Multiple protection elements: phase, ground, and sensitive ground fault detection
4. 8-channel 4-20 mA analog outputs (A20) for DCS/PLC feedback
5. Wide control power input range (HI = 88-300 VDC / 70-265 VAC)
6. Supports multiple communication protocols: Modbus RTU / DNP3.0 / optional Ethernet
7. Draw-out chassis design for easy maintenance and replacement
8. Wide operating temperature range (-40 °C ~ +60 °C)
Related Models – Quick Comparison
|
Model
|
Phase CT
|
Ground CT
|
Supply
|
I/O Slots
|
DI
|
DO
|
AO
|
Part Number Key
|
|
SR750-P5-G5-S5-HI-A20-R (this sheet)
|
5 A
|
5 A
|
24–48 V DC
|
A20
|
20
|
8
|
4
|
P5-G5-S5-HI-A20-R
|
|
SR750-P1-G1-S5-HI-A1-R
|
1 A
|
1 A
|
24–48 V DC
|
A1
|
8
|
4
|
4
|
P1-G1-S5-HI-A1-R
|
|
SR750-P5-G5-D5-HI-A1-R
|
5 A
|
5 A
|
88–300 V DC / 70–265 V AC
|
A1
|
8
|
4
|
4
|
P5-G5-D5-HI-A1-R
|
|
SR750-P5-G5-D5-HI-A20-R
|
5 A
|
5 A
|
88–300 V DC / 70–265 V AC
|
A20
|
20
|
8
|
4
|
P5-G5-D5-HI-A20-R
|
|
SR750-P5-G5-S1-HI-A10-R
|
5 A
|
5 A
|
24–48 V DC
|
A10
|
16
|
6
|
2
|
P5-G5-S1-HI-A10-R
|
