Brand new and original | 12-month warranty | Xiamen stock
1. Order Codes & Physical

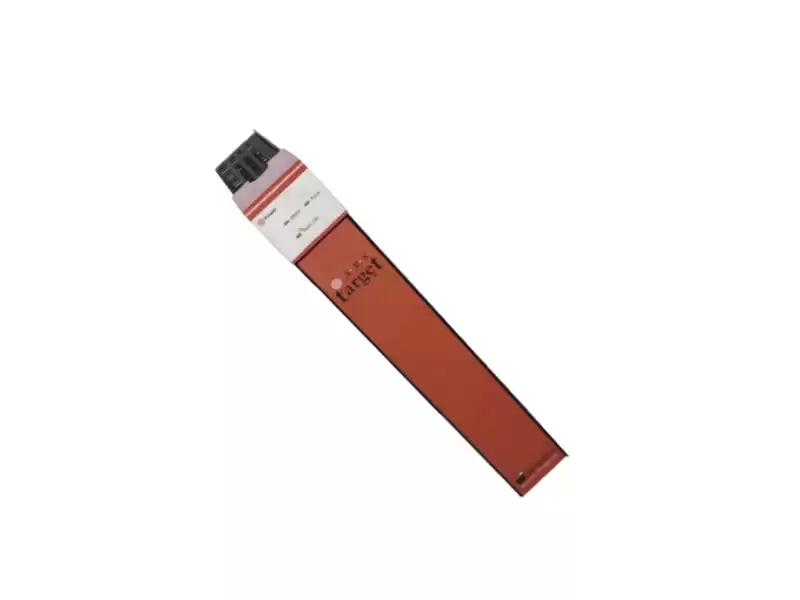

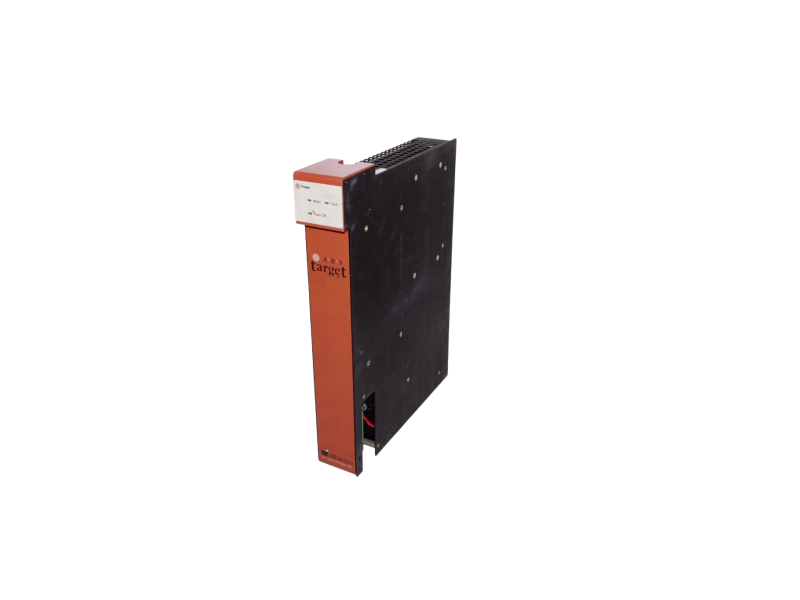

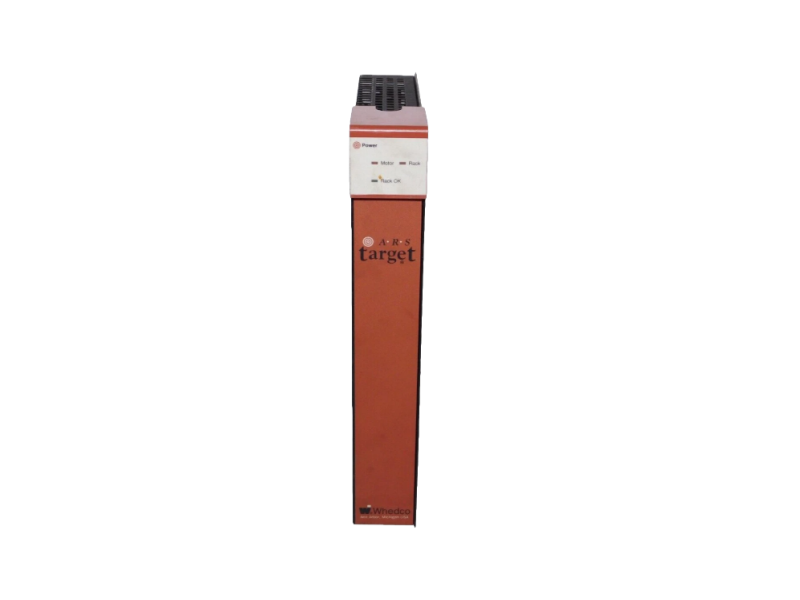

ü Commercial P/N: TGT-3X6L-1-0-BD
ü Internal GE / Whedco P/N: 78004658B
ü Weight: 3.85 kg (8.48 lb)
ü Protection class: IP20
ü Mounting: 35 mm DIN-rail + M4 screws (vertical preferred for airflow)
ü Hot-swap: Supported when rack is powered by redundant PSU
2. Electrical Characteristics
|
Parameter
|
Value (Typ.)
|
Remarks
|
|
Input voltage
|
220 VAC ±15 %, 50 / 60 Hz
|
Single-phase
|
|
Power rating
|
1.5 kW continuous
|
Peak 2.2 kW ≤ 5 s
|
|
Max. output current
|
10 A RMS
|
Derate 2 % / °C above 45 °C
|
|
Power loss
|
≤ 75 W @ 8 A load
|
Integrated heatsink, no external fan needed
|
|
Internal DC bus
|
300 VDC ±10 %
|
Over-voltage clamp 400 V
|
|
Isolation
|
Reinforced 2.5 kVAC (input–earth), 1 kVAC (input–output)
|
|
3. Control & Interface
ü Command interface: ±10 V differential, 0–20 mA, or PWM 10–50 kHz
ü Digital I/O: 6 IN (24 VDC), 4 OUT (100 mA, short-circuit proof)
ü Encoder supply: 5 V / 250 mA + 24 V / 200 mA
ü Feedback types: Incremental TTL, 1 Vpp Sin-Cos, absolute SSI / BiSS
ü Communication port: RS-485 (Modbus-RTU) 38.4 kBd default
ü LED indicators: PWR, RUN, FLT, BUS, I²T |
4. Protective Functions
✓ Over-current (hardware + software)
✓ Over-voltage / under-voltage on AC & DC bus
✓ IGBT thermal model & heatsink thermostat
✓ Motor short-circuit, earth-fault, phase-loss
✓ Stall / overload with adjustable I²t curve
✓ Encoder break-wire detection
All trips are self-latching; reset via digital input or software command.
