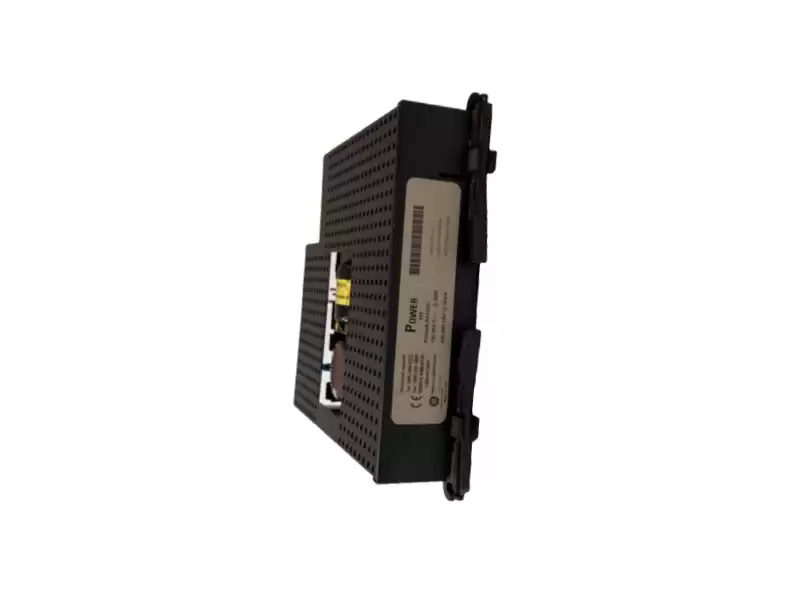

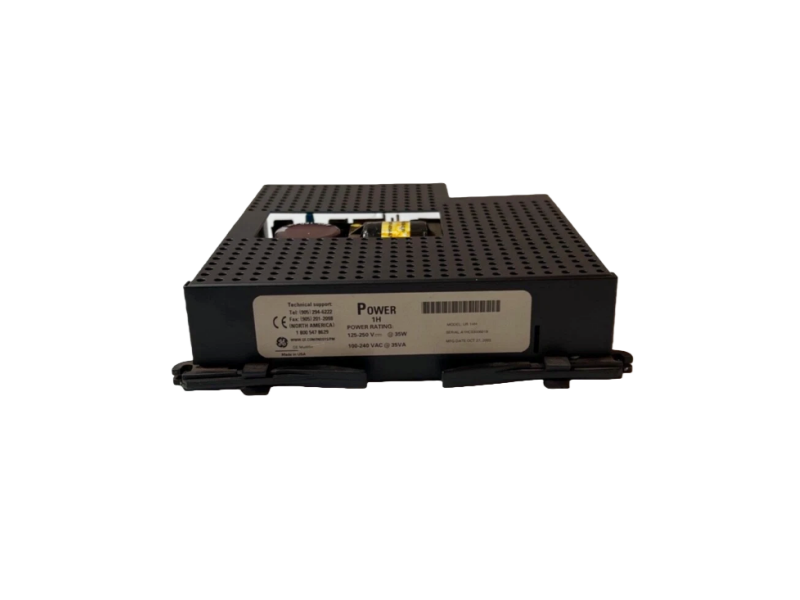

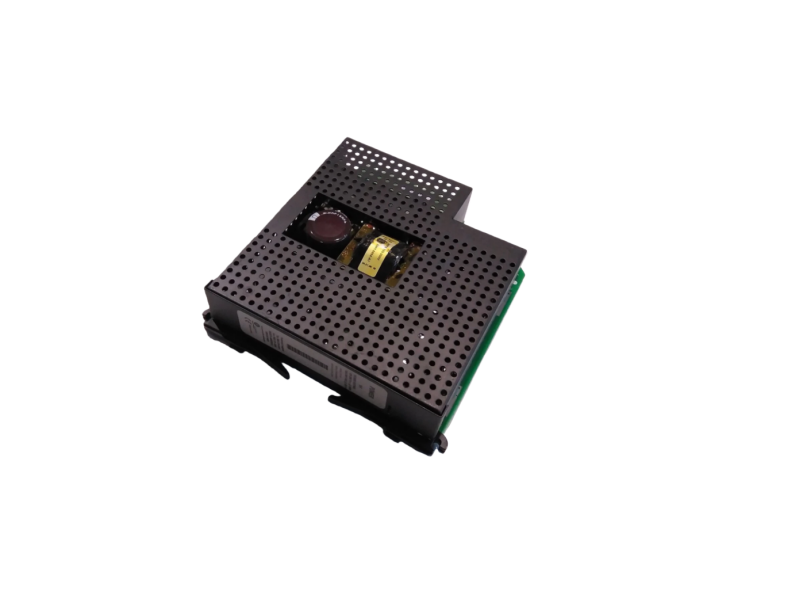

What the UR1HH does
Converts 100-240 VAC (50/60 Hz) or 125-250 VDC into the internal 24 V DC bus that feeds every I/O and CPU card in a GE Multilin UR chassis.
35 W continuous output, cold-swap compatible, overload/short-circuit protected.
One UR1HH is mandatory in every rack; larger racks simply add a second unit for redundancy.
Quick-selection table
|
Part number
|
Input range
|
Output power
|
Back-up time*
|
Mounting
|
Temp rating
|
|
UR1HH
|
85-264 VAC / 125-250 VDC
|
35 W
|
n/a (primary supply)
|
Slot-in, 4 TE
|
0…+60 °C
|
|
UR8CH
|
24-60 VDC (low-volt)
|
35 W
|
n/a
|
Slot-in, 4 TE
|
-40…+70 °C
|
|
UR9EH
|
110-220 VDC (high-volt)
|
50 W
|
n/a
|
Slot-in, 4 TE
|
-40…+70 °C
|
*Back-up time = hold-up with external battery on UR-BATT connector.
Specification snapshot
|
Parameter
|
Value
|
|
Nominal output
|
24 V DC ±2 %
|
|
Ripple
|
< 200 mV pp
|
|
Efficiency
|
> 85 % @ 230 VAC
|
|
Hold-up time
|
20 ms minimum (full load)
|
|
Isolation
|
2 kVrms input-to-output
|
|
Protection
|
OTP, OVP, OCP, UVP
|
|
MTBF
|
300 000 h (MIL-HDBK-217F, GB, 40 °C)
|
|
Agency marks
|
CE, UL 508, IEC 60255-27
|
