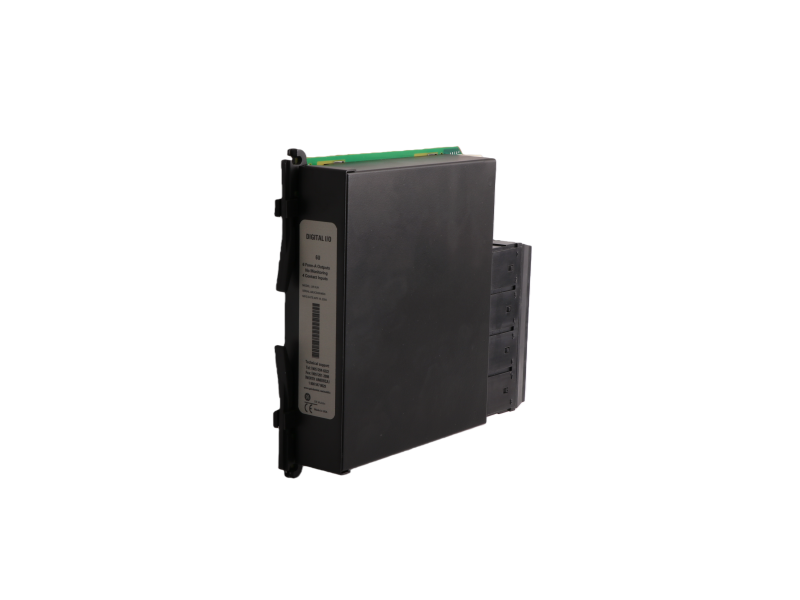

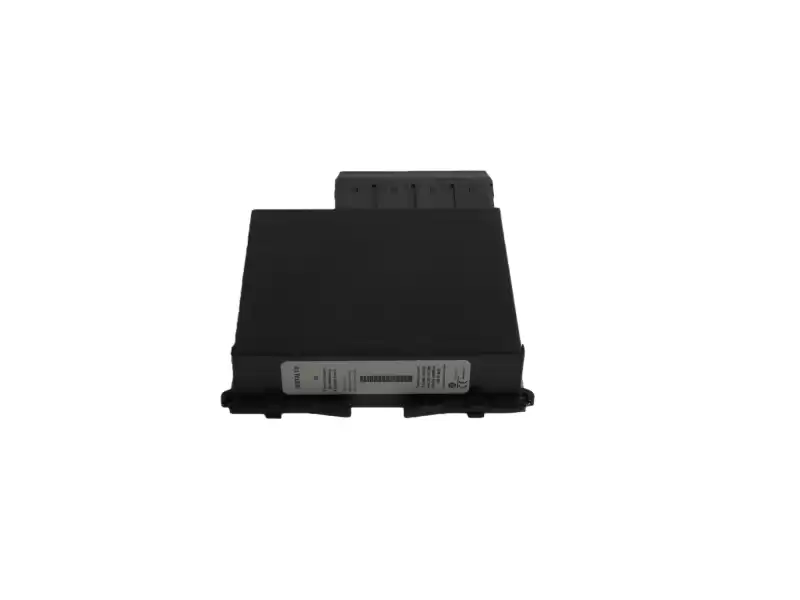

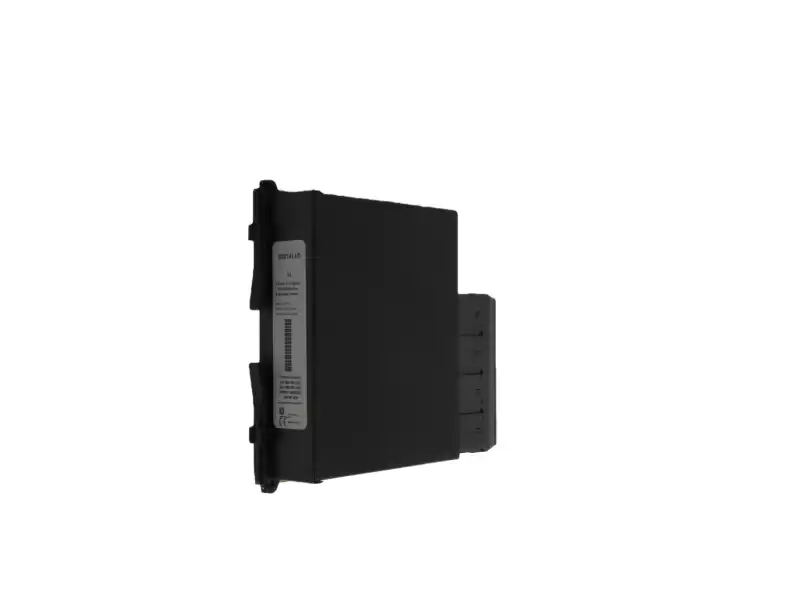

GE UR6UH General digital I/O module

Key Specifications

1. 16 digital inputs, self-adapting 24–250 V DC/AC, dry or wet contacts can be mixed on the same module

2. 8 Form-A (normally-open) relay outputs, 250 V AC/DC 0.5 A per contact, with RC arc suppression

3. 4 × 12-bit analog inputs, software-selectable 0–10 V, 0–20 mA or 4–20 mA, input impedance > 100 kΩ

4. 2 × 12-bit analog outputs, default 4–20 mA, max load 550 Ω, jumper-changeable to 0–10 V

5. Channel-to-channel isolation 2 kV RMS, channel-to-system 1.5 kV RMS, reinforced per IEC 61010-1

6. Dual built-in 10/100 M Ethernet ports, supporting TCP/IP, Modbus-TCP and IEC 61850 GOOSE, redundant ring capable

7. Plug-in module, occupies one standard UR slot, hot-swappable without powering down; optional DIN-rail enclosure

8. Full performance over –40 °C … +70 °C, 10 … 95 % RH non-condensing, altitude 0 … 2 000 m

9. Response time < 1 ms (digital input to UR backplane), output contact operate time < 5 ms

10. Configured and diagnosed via EnerVista UR Set-up; online firmware upgrade and waveform trigger supported

11. Certified to CE, UL 508 and IEC 60255-5; EMC meets IEEE C37.90.2 (4 kV EFT / 2.5 kV surge)
