General Purpose Household Appliances Power Electromagnetic Relay

Contact capacity2C/3C:7A 250VAC/30VDC 4C:5A 250VAC/30VDC, Coil power(W)0.9W,1.2VA, Dielectric Strength(VAC):1500VAC



General power relay is one type of relay, it’s a switch that use an electromagnetic coil to close or open the circuit, it includes armature, spring and many contacts. If you design the power relay to be normally opened, when it powered, the electromagnet attracts the armature and pull it in the coil's direction, when it reaches to the contact, the circuit will be closed. If you design the power relay to be normally closed, the electromagnetic coil will pull the armature away from the contact, then disconnect circuit.


Hefei mycoil technology Co.,TLD produce and design series general power relays for power electromagnetic, mainly used in automotive electronics, air conditioning, fridge, washing machine and other household appliances. We are ISO9001:2008 certification factory, which located in Anhui province(near to Shanghai). We have a research team consists of five engineers, engineering and technical personnel can quickly respond to make general power relays drawings and samples, to ensure that customers can complete the sample machine test at the first time and provide strong technical and service support. The materials we used are ROHS and REACH compliant.


Quick Details

Part NumberMCT-BAET Relay

Brand name: MCT

Place of Origin: Hefei,China(Mainland)

Custom made: Available

Long service endurance, high reliability

Logo: Can be customized

Low coil power consumption with high sensitive.

Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE

MOQ: Any quantity

Lead time: 25 days after payment

OEM: Available


Part Information

Product Name: General Purpose Household Appliances Power Electromagnetic Relay

Product Features: 2pole ,3pole ,and 4 poles types available with switching current 7A(2/3 poles) and 5A(4 poles). PCB terminal, socket and flange case types available for different mounting consideration.

Applications: Air Conditioning, Fridge, Washing Machine, Household Appliances.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

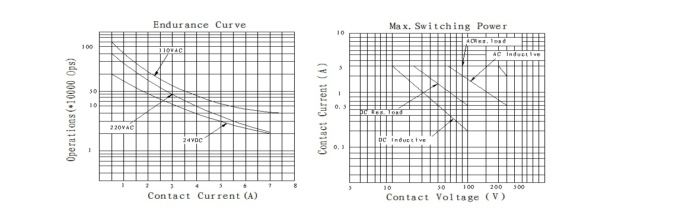

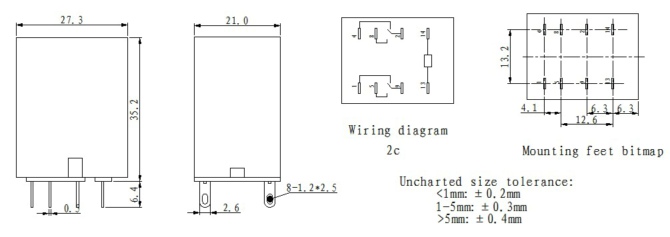

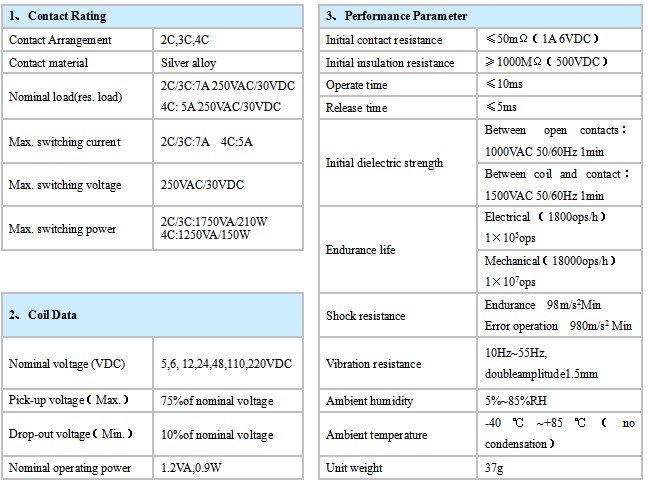

Product Specification

General power relay

If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Lily Yu
