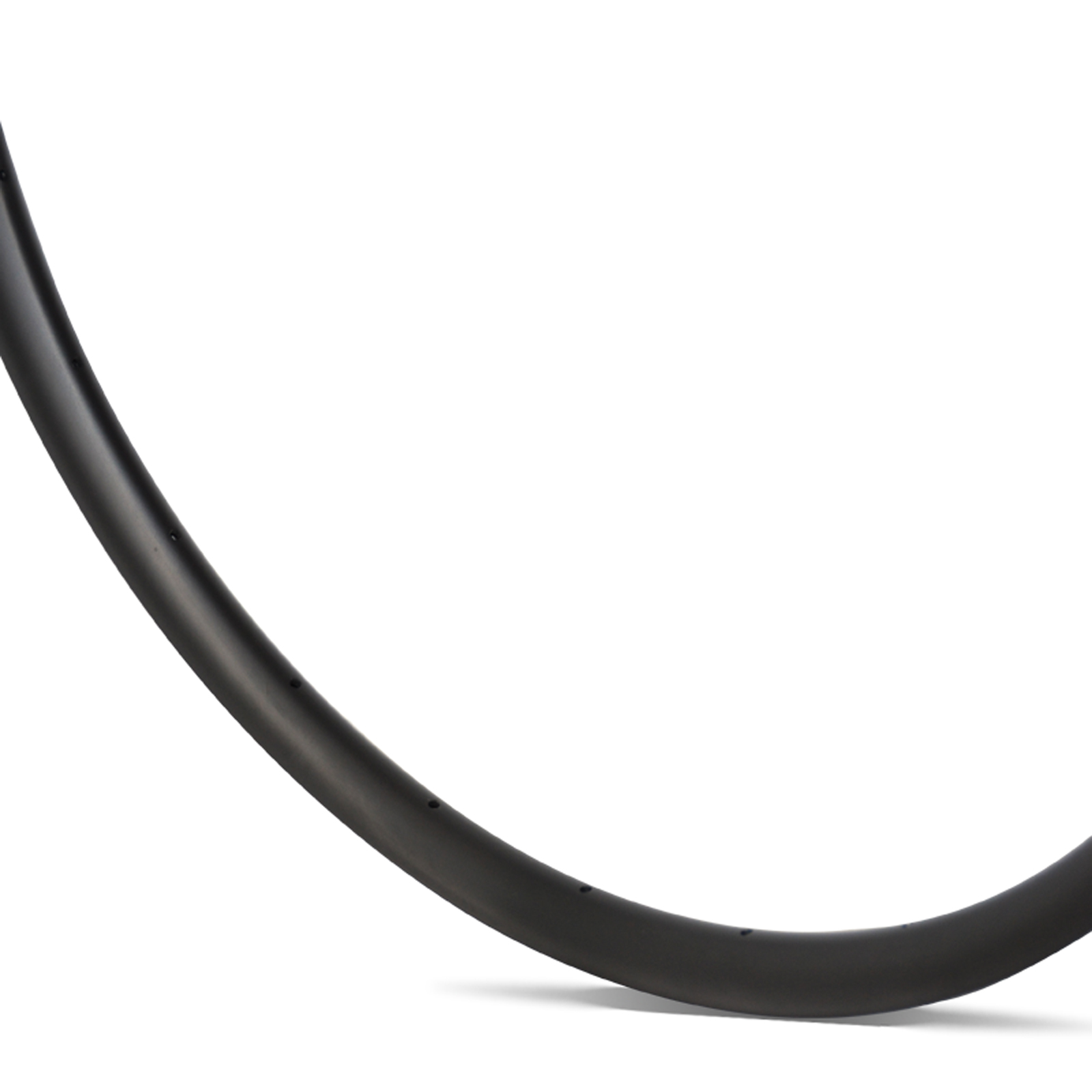

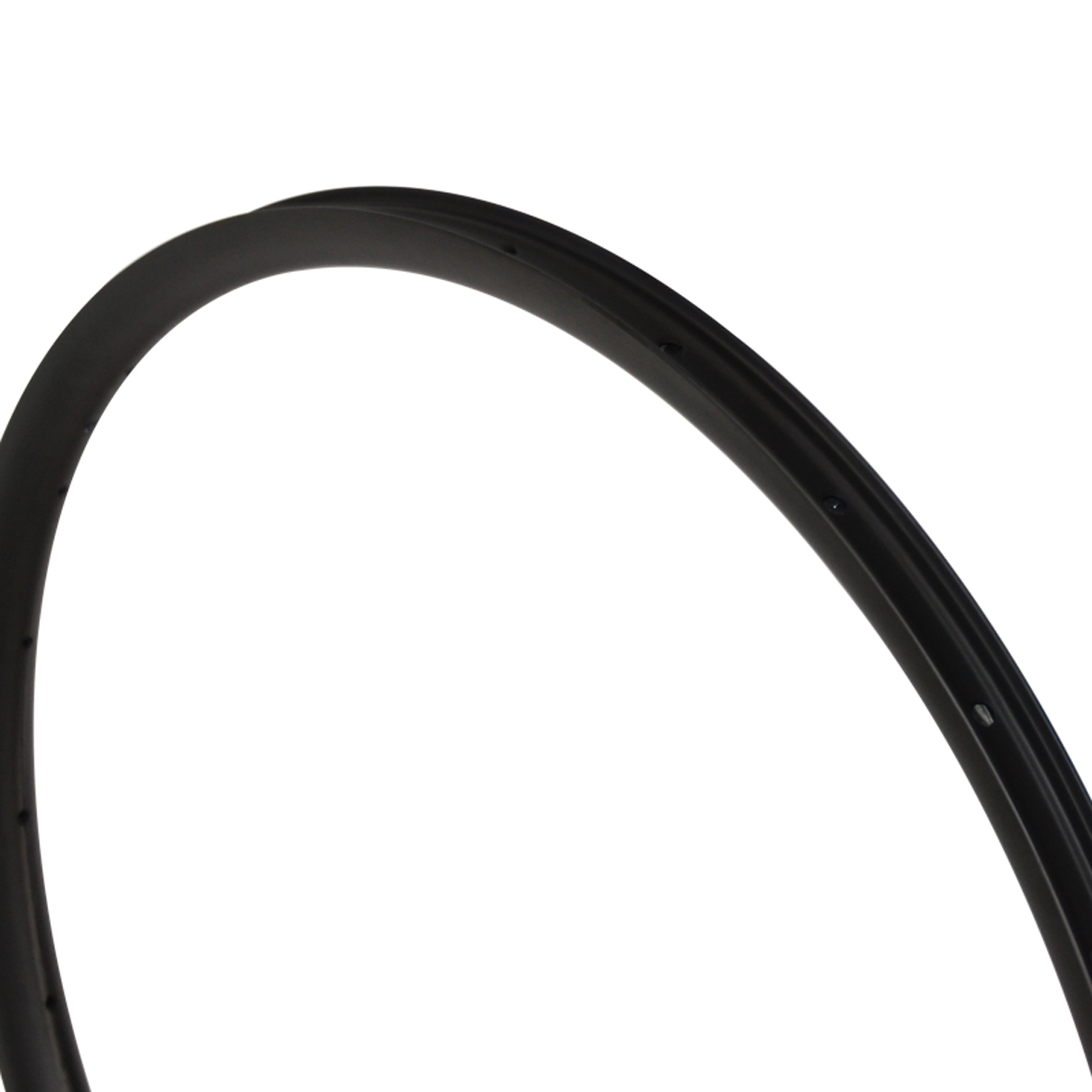

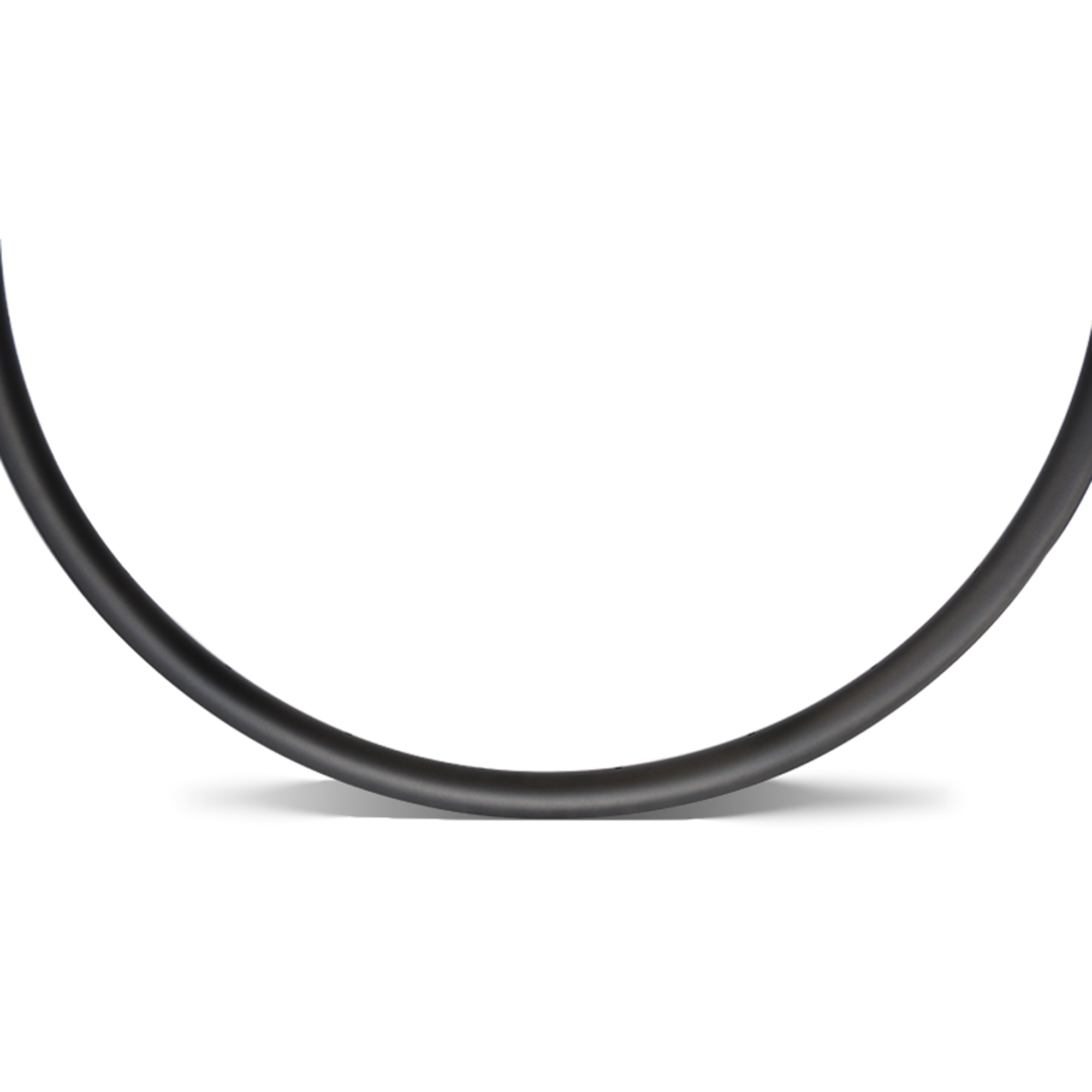

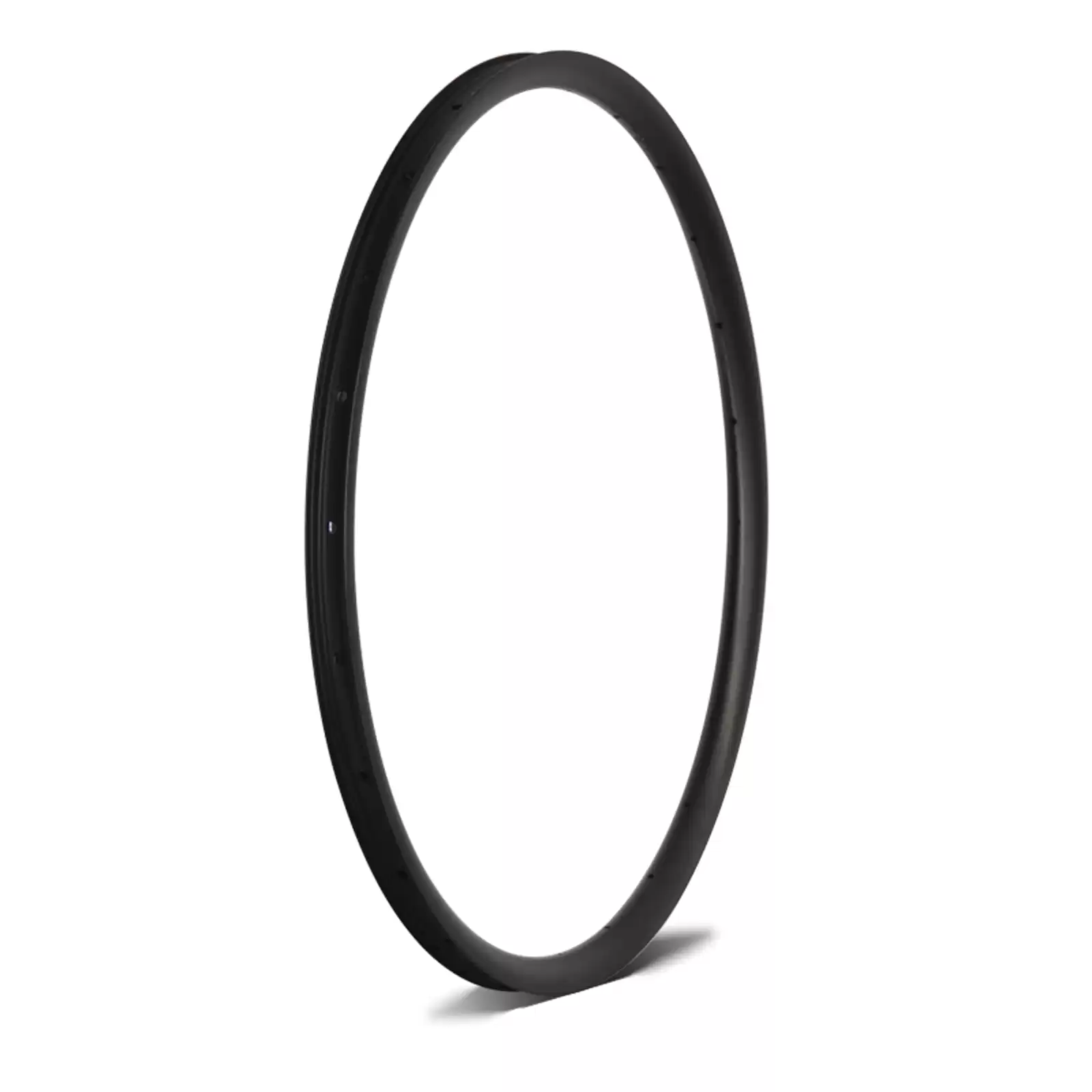

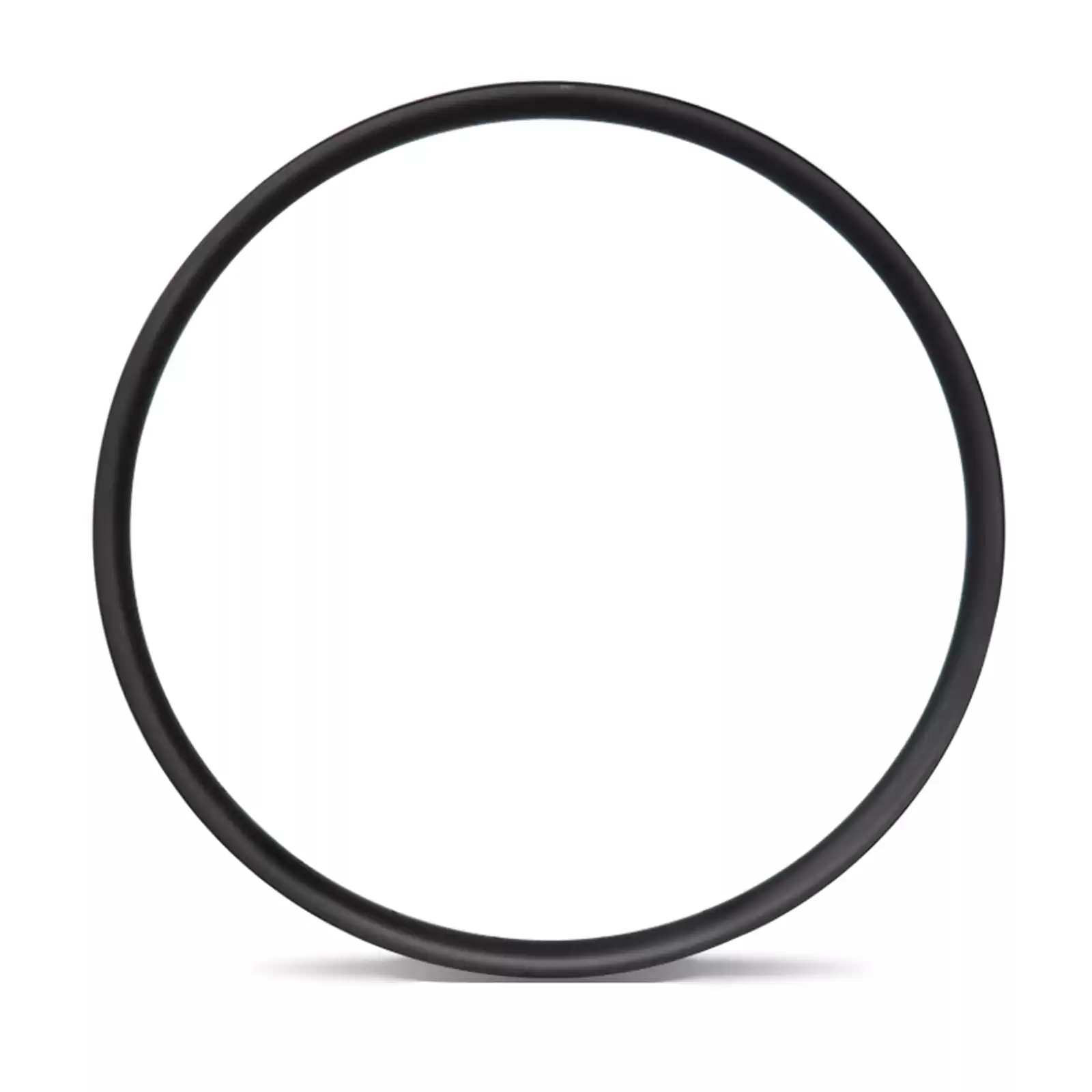

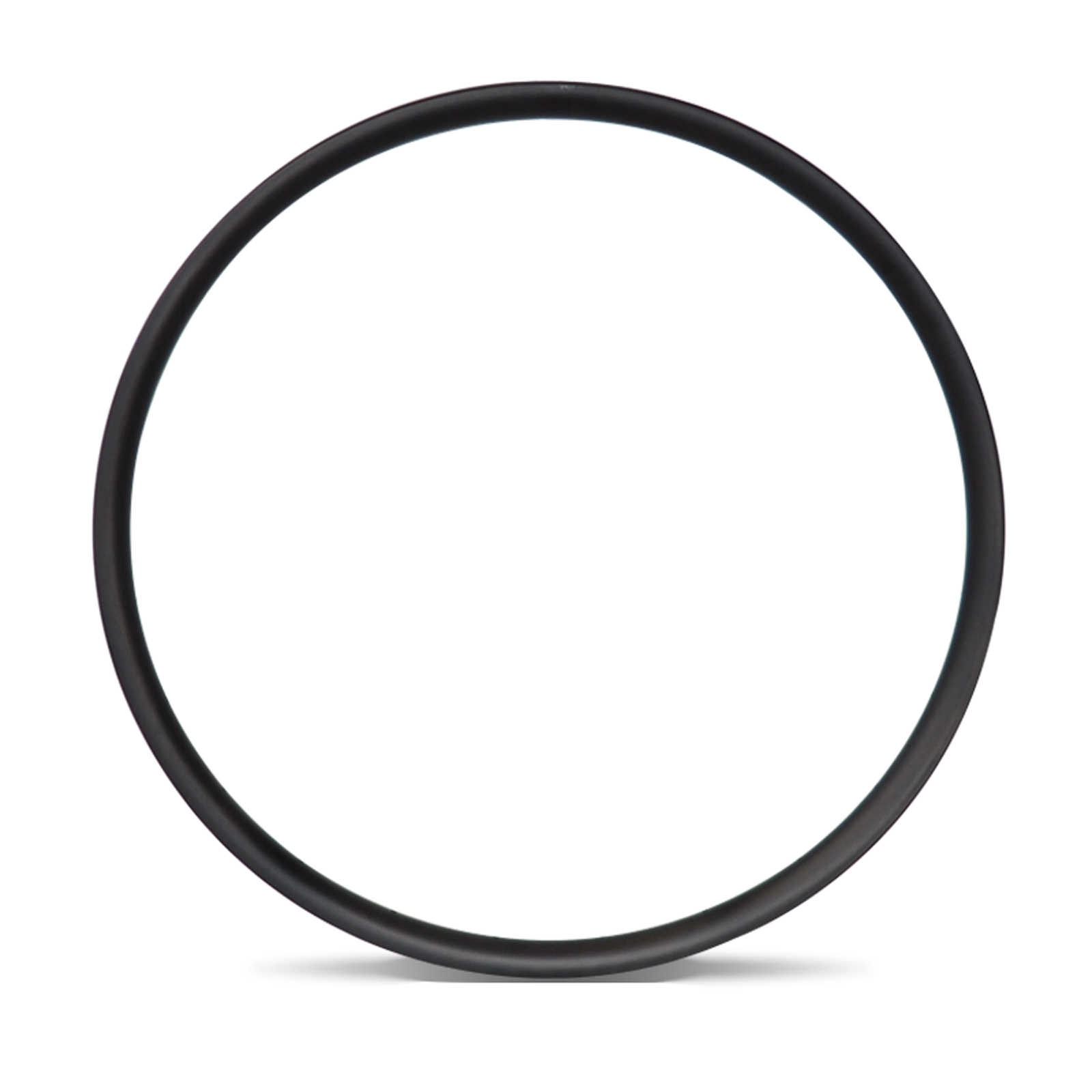

GoFast 26er 30mm Width 25mm Depth Lightweight XC Rims

26er 30mm  wide 25mm deep carbon xc rims are cosntructed from Toray T700&T800.The max rider weight of 26 mtb rims is 110kg.




GoFast 26er 30mm Width 25mm Depth Carbon XC Rims



Product Feature

  • 30mm wide 25mm deep carbon mtb rims 26er are constructed from Toray T700&T800 that structure minimize the rotational weight.
  • Tubeless mtb rims are used for cross-country and fit 1.8-2.5" tire.
  • Lightweight xc carbon rims have flywieght version(280±15g),but only UD.
  • Imposite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.

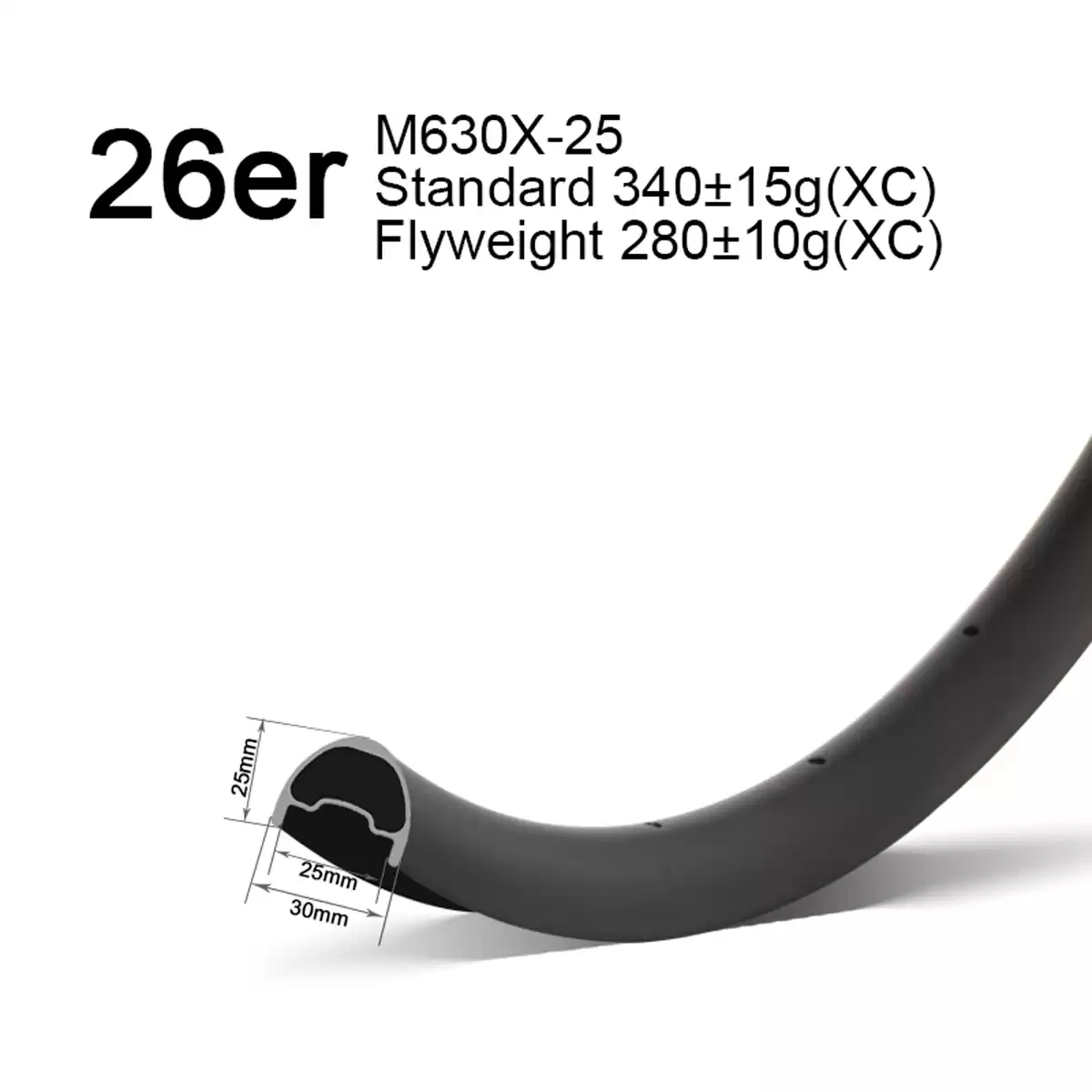

Specification

Item NO.:
M630X-25
Size:
26er
Terrain:
Cross Country
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:

Full carbon fiber (Toray T700+T800)

Spoke Hole:

24/28/32/36H

Outer width:
30mm
Depth:
25mm
ERD:
525mm
Type:
tubeless

Weight:


Standard:340±15g

Flyweight:280±15g(only UD

Standard:

En Standard

Tyre Size:
1.8-2.5"
Max Tire Pressure:
60psi

Max Rider Weight:

110kg

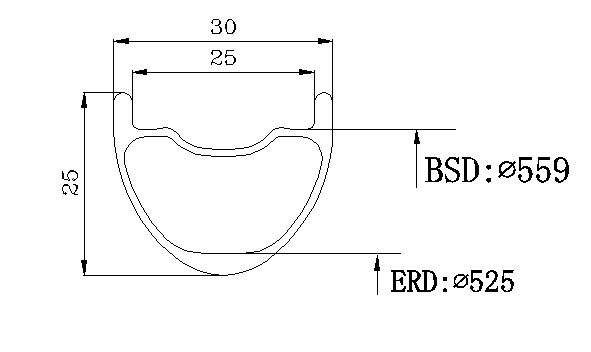

Geometry

carbon xc rims 26er



Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
