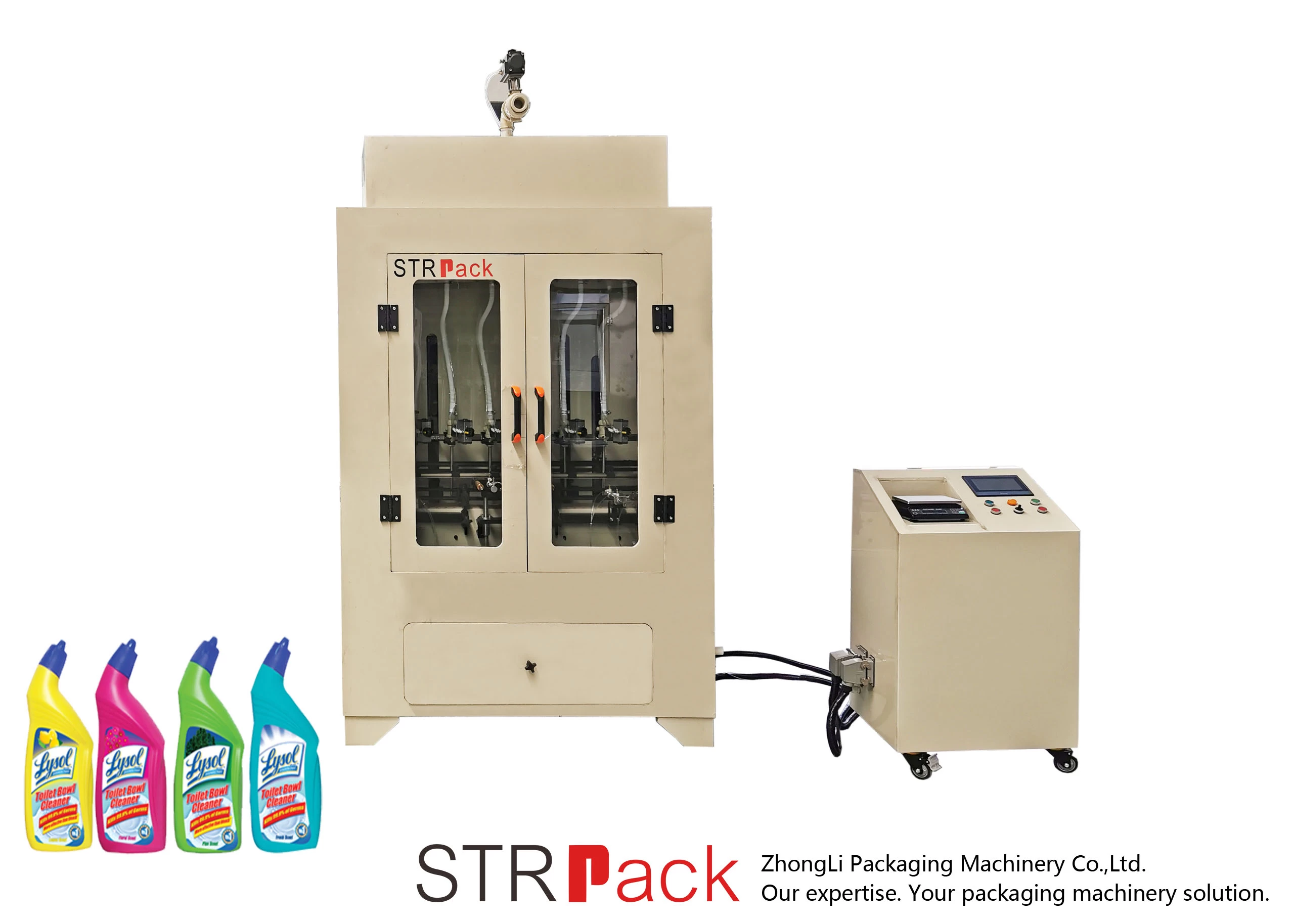

Gravity Type Toilet Cleaner Liquid Filling Machine
Brief Introduction:
This gravity type filling machine is special made for filling corrosive liquid such as bleach, sulphuric acid, 84 disinfectant, gel water, toilet cleaner etc.
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 6/8/10/12/16 /20 heads.
The filling volume is controlled by filling time, with weight feedback of each filling nozzle to PLC to assure good filling accuracy.
All product contact parts is made with strong plastic material to avoid corrosion.
Features:
Suitable material: Bleach, acid liquid, 84 disinfectant, gel water, toilet cleaner, especially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal.

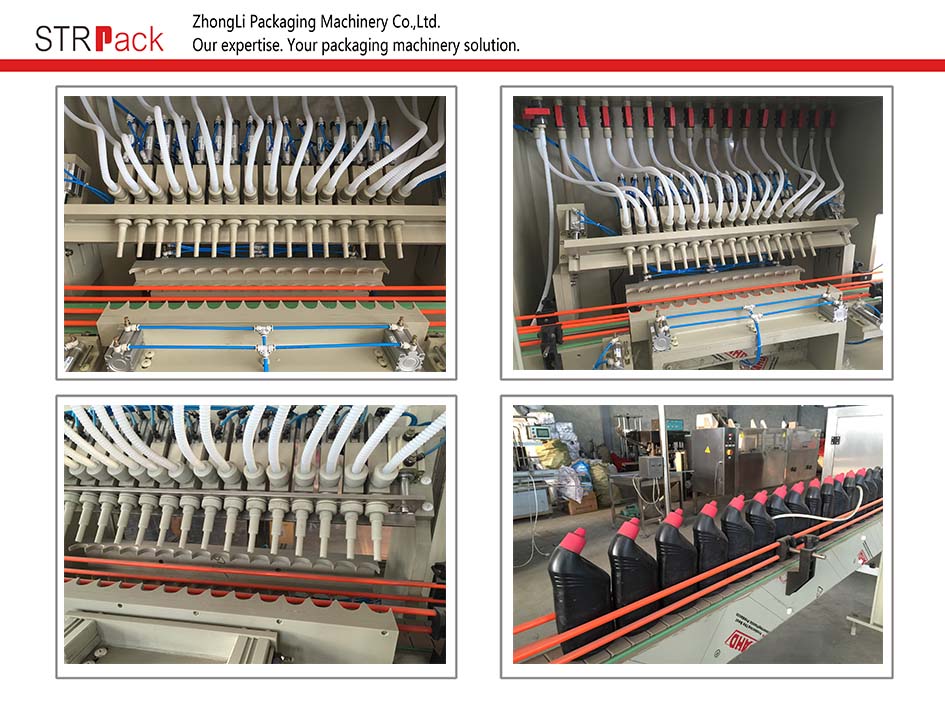

Contact liquid parts are use anticorrosive non-metallic material and with diving function.
This Vertical filler is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action.
The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes. Short filling circle, high production capacity.
User may choose the filling volume and decide the filling heads per own production capacity.
The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.
Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.
The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.
More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.
Main Parameter:
|
Model
|
Unit
|
STRFG
|
|
Nozzle Number
|
PCS
|
8
|
10
|
12
|
16
|
|
Filling volume
|
Ml
|
100-5000
|
|
Production capacity
|
Bottle/h
|
1000-5000pcs(Depends on filling volume)
|
|
Quantitative error
|
%
|
100-1000ml:≤±2% , 1000-5000ml:≤±1%
|
|
Voltage
|
V
|
AC220V 380V ±10%
|
|
Consumed power
|
KW
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Air pressure
|
MPA
|
0.6-0.8Mpa
|
|
Air consumption
|
M3/min
|
0.8
|
1
|
1.2
|
1.2
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
