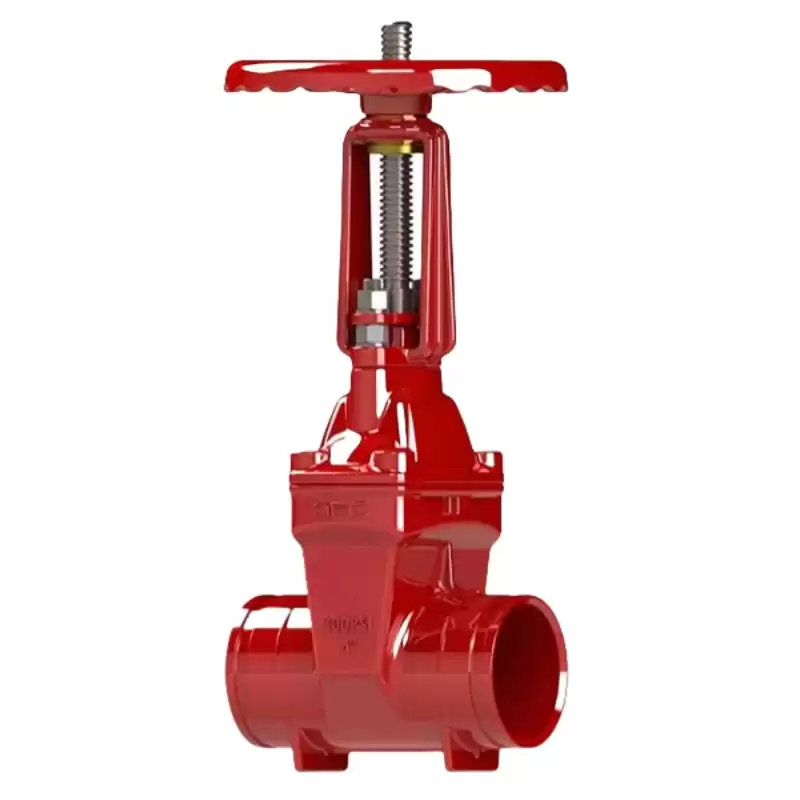

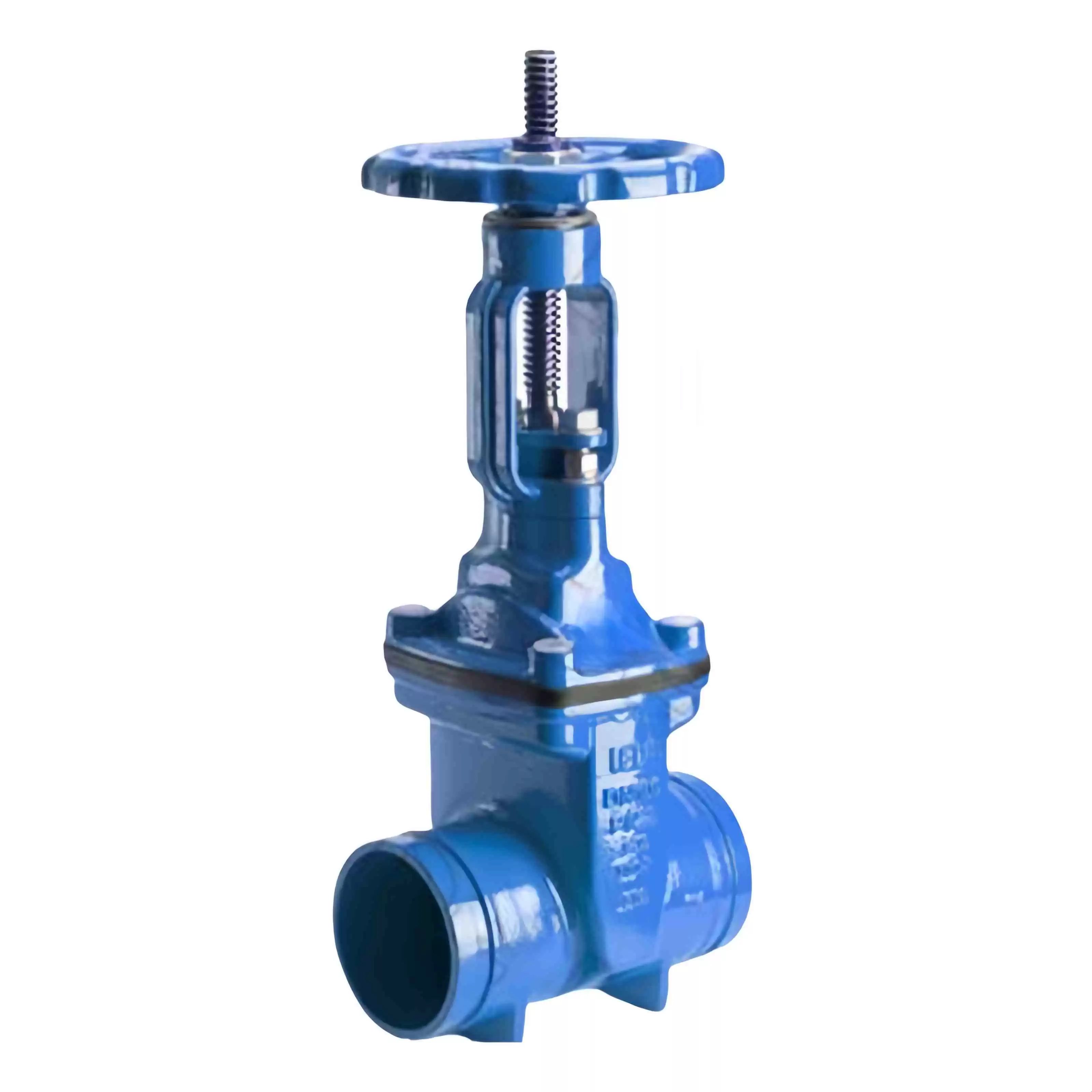

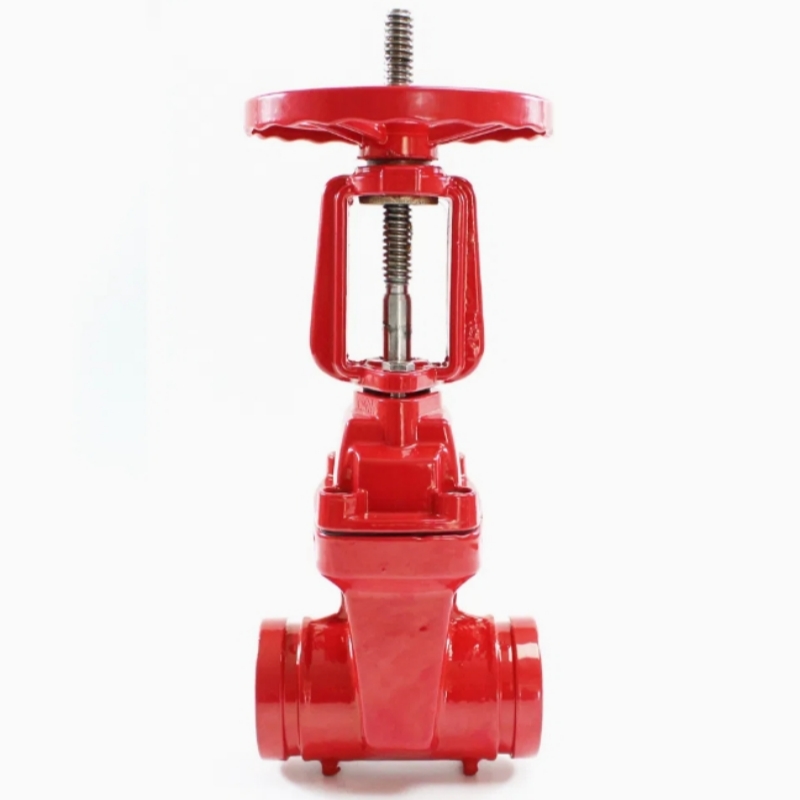

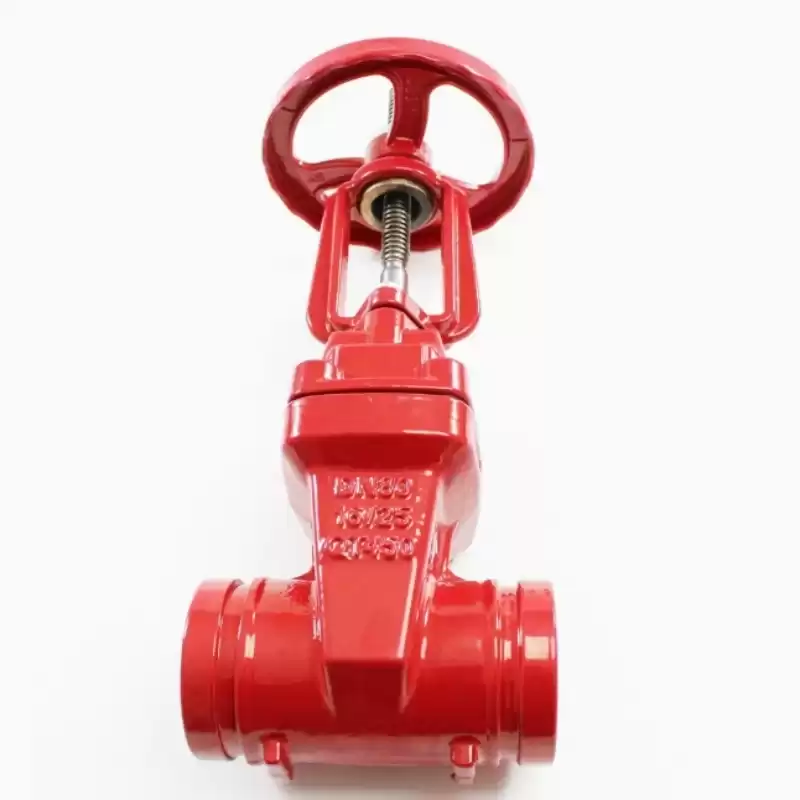

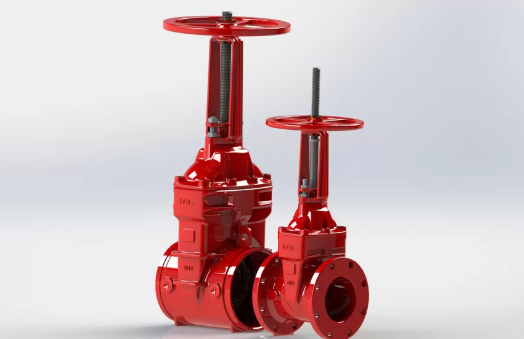

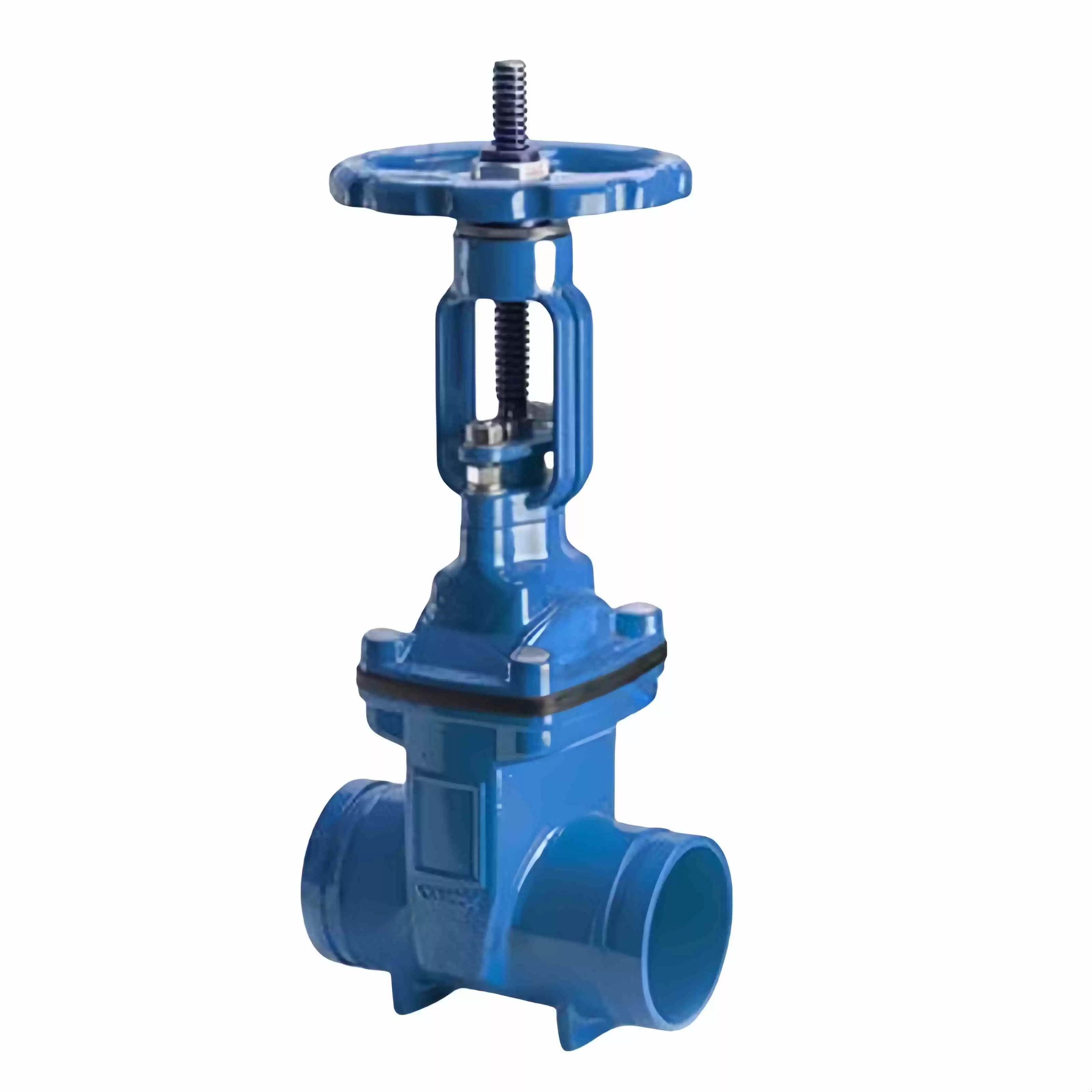

Grooved Resilient Seated OS&Y Gate Valve

Grooved fire gate valves are a new type of valve that combines the reliable control function of traditional gate valves with the quick installation advantage of grooved pipe fittings.



Product Description

The grooved resilient seat fire gate valve is a high-performance valve that integrates multiple advanced features such as quick grooved installation, visible visible stem status, elastic sealing with zero leakage, and remote signal monitoring. It is not only a control device for fluid on-off, but also a key component to ensure the safe, reliable and intelligent operation of the fire protection system.

The valve stem and gate plate are driven to move up and down vertically by rotating the handwheel, thus achieving the opening and closing of the flow channel. The soft seal at the bubble level is achieved by using the elastic rubber valve seat squeezed by the gate plate to produce elastic deformation. And it is quickly and reliably combined with the pipeline system through the grooved clamp connection method.

Features

 • The new type of soft-sealed gate valve adopts a full-through flow channel design, which is equivalent to a straight pipe, with low flow resistance and ensuring smooth fluid flow

 • The valve plate is covered with rubber both inside and outside to guaranteed good sealing. It has strong connection to avoid fall off after long-term use.

 • Corrosion resistance:Non-toxic powder epoxy resin spraying on botn inside and outside of the valve to enhance corrosion resistance and improve water quality.

Product Parameter

Normal Diameter 50 65 80 100 125 150 200 250 300
Nomianl Pressure PN10、PN16
Shell strength 1.5 Mpa、2.4 Mpa
High Pressure Liqiud Sealing 1.1 Mpa、1.76 Mpa
Low Pressure Gas Sealing 0.6 Mpa
Medium Temperature -10℃~80℃
applicable Medium Water etc.

FAQ

Q:Why is the Open Pole mode (OS&Y) recommended?

A:The Outside Stem & Yoke mode is a mandatory requirement and safety feature of fire protection systems. The valve stem rises and falls along with the gate plate. Operators can visually determine whether the valve is in the open or closed state by the extended length of the valve stem, avoiding the risk of fire protection system failure due to misjudgment of the state.


Q:What’s the MOQ for your fire gate valve?

A:10 Sets


Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.


Q:Why choose us?

A:With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!


Q:How can I get my oeder?

A:We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder,all with tracking number.
