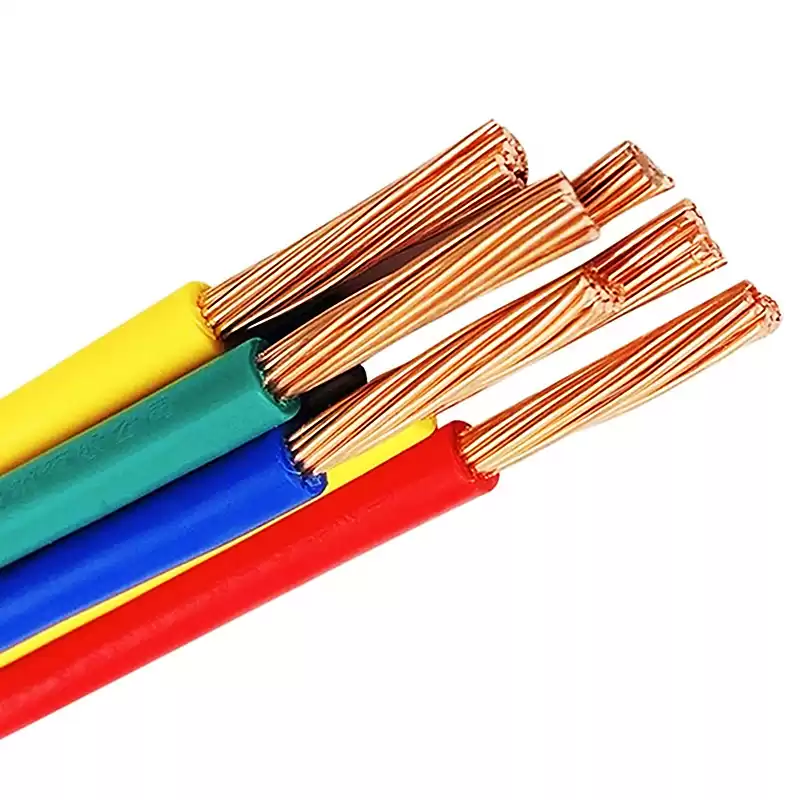

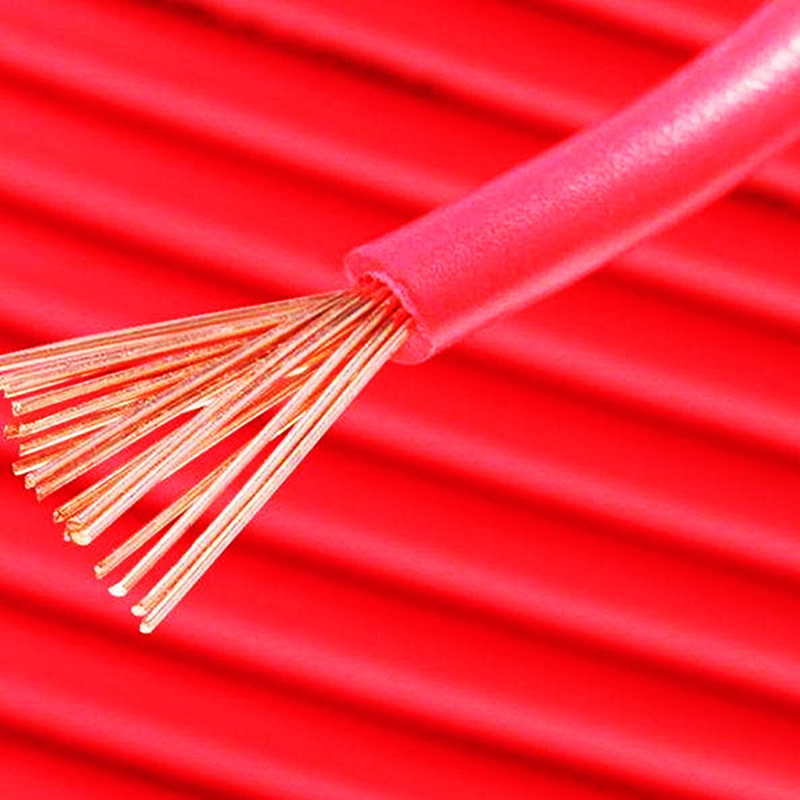

H07V-R, 450/750V Copper Conductor PVC insulated Wire
PRODUCTS NAME
H07V-R, 450/750V Copper Conductor PVC insulated Wire
PRODUCTS KEYWORDS
H07V-R, 6491X, NYA, BV, stranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
H07V-R, 450/750V Copper Conductor PVC insulated Wire, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

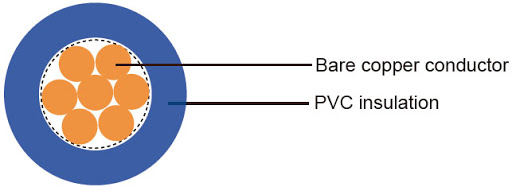

PRODUCTS STRUCTURE
H07V-R, 450/750V Copper Conductor PVC insulated Wire, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 2.
---Insulation Material
PVC(polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS DIMENSIONS
|
Description of Cable
|
Description of Products
|
|
Products Name
|
H07V-R,450/750V Copper Conductor PVC insulated Wire
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 2.
|
|
Conductor Structure
|
7/0.68 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.8 mm.
|
|
Insulation Colour
|
Red, yellow, blue, green, black, grey, white, yellow/green, or others.
|
|
Sheath Material
|
Non-sheath.
|
|
Conductor Cross-section
|
2.5 mm².
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
3.6 mm.
|
|
Voltage Rate
|
450/750V (U0/U).
|
|
About Net Weight
|
32 kg/km.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
7.41 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.009 MΩ.km.
|
|
Max. Ampacity
at 40℃ in air
|
29A.
|
