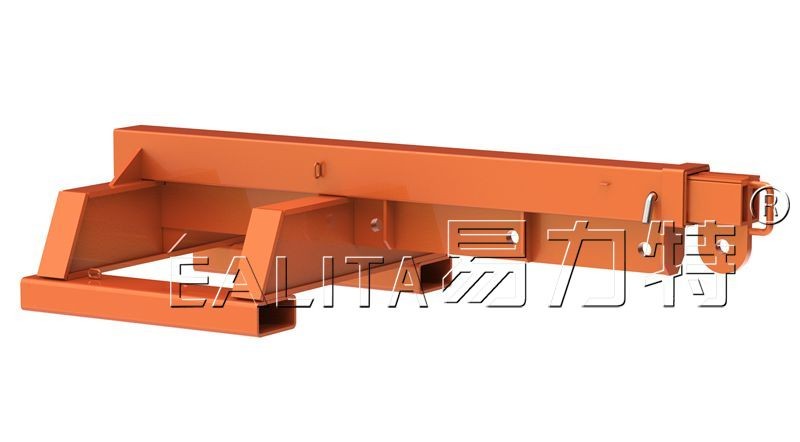

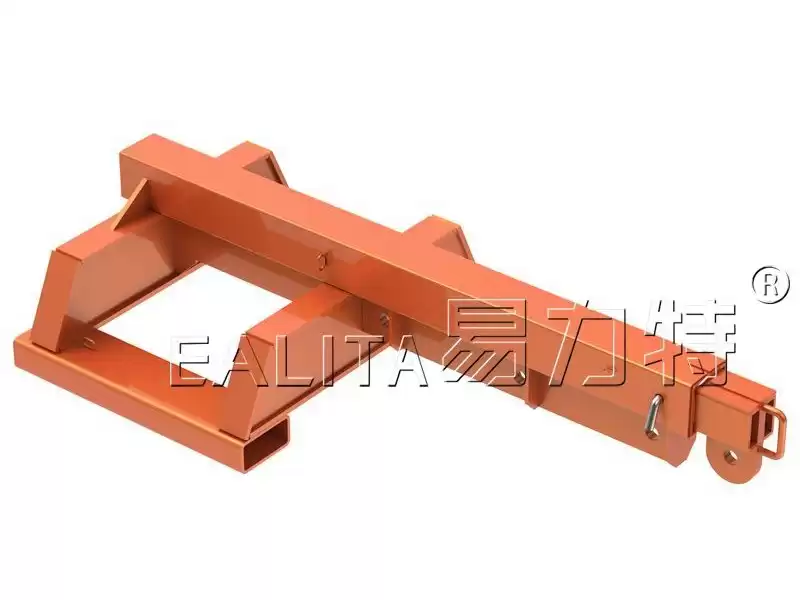

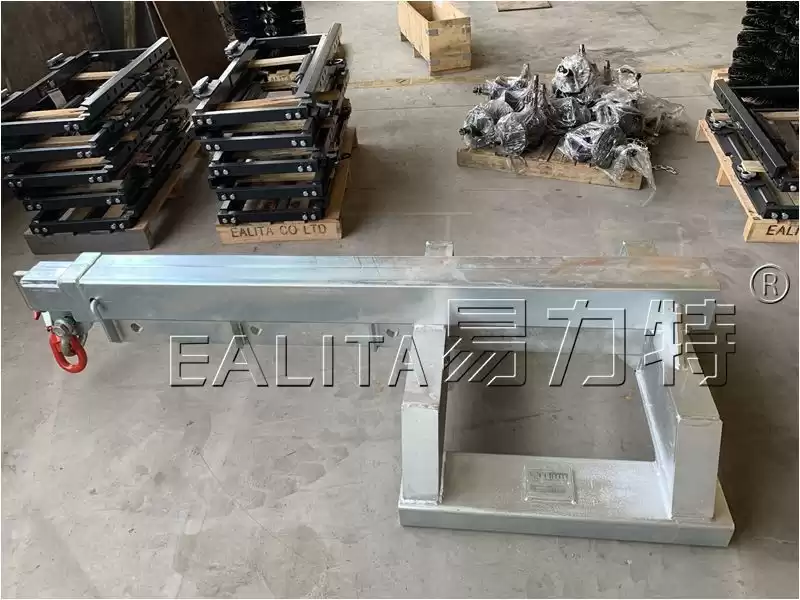

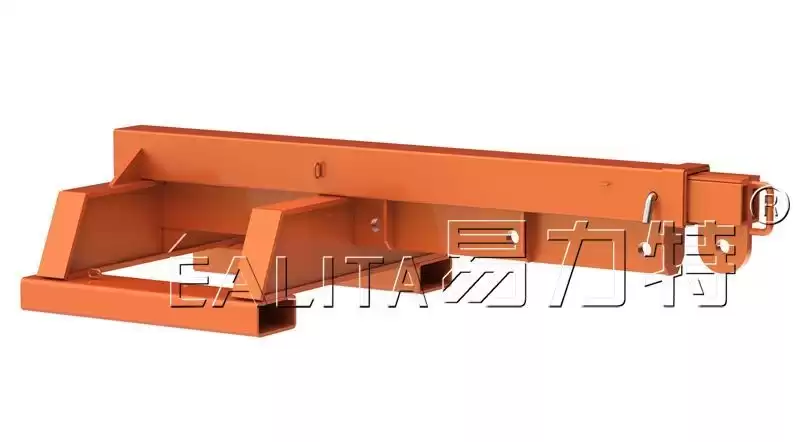

The type F-SFJL7.5 Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.56 metre reach when fully extended.
- This Jib has been designed with wide pockets suitable for Forklifts with special hydraulic Tine Positioners.

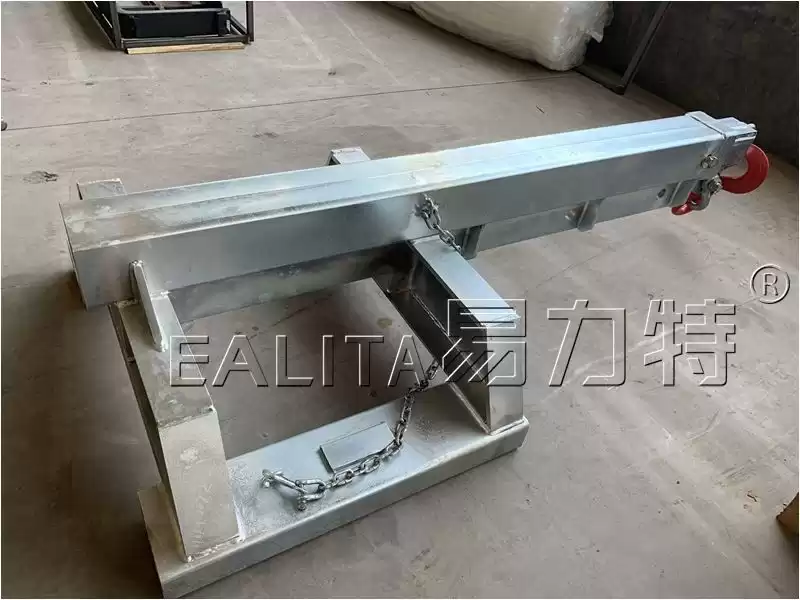

- This slip-on Forklift attachment is held to the Forklift by a safety chain.

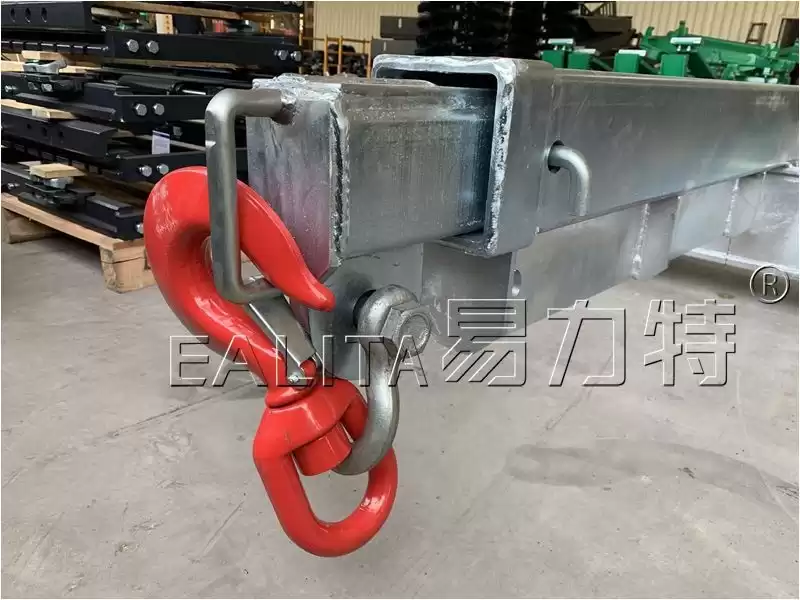

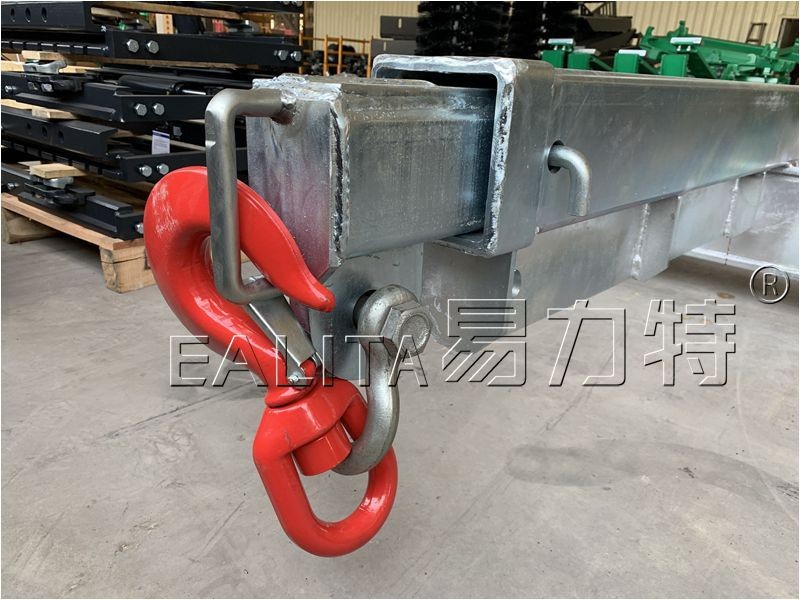

- The Jibs overall length when closed is 2.19 metres. Supplied with safety swivel Hook and Shackle.
Specification
· Code: 03.01.04.0030
· Safe Working Load (SWL) 7500kg Max.
· Unit Weight 450kg
· Load Centre 920mm
· Pocket Size 180 x 80
· Pocket Centres 875 mm
· Horizontal C of G 1200mm
· Vertical C of G 100mm
· Zinc Finish
