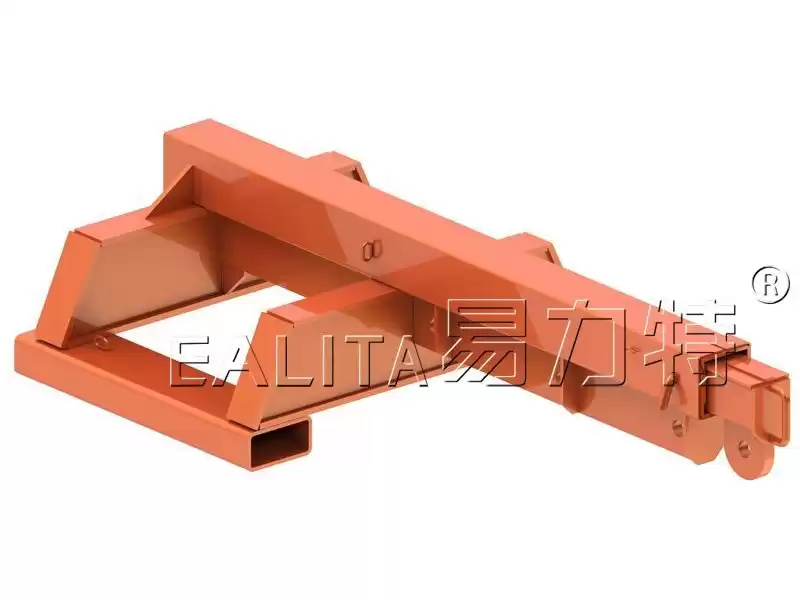

The type F-SFJS7.5 Fixed Jib (Short) is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.0 metre reach when fully extended.

- This Jib has been designed with wide pockets suitable for Forklifts with special hydraulic Tine Positioners.

- This slip-on Forklift attachment is held to the Forklift by a safety chain.

- The Jibs overall length when closed is 1.39 metres. Supplied with safety swivel Hook and Shackle.

Specification

· Code: 03.01.04.0044

· Safe Working Load (SWL) 7500kg Max.

· Unit Weight 320kg

· Load Centre 930mm

· Pocket Size 180 x 80

· Pocket Centres 875 mm

· Horizontal C of G 740mm

· Vertical C of G 100mm

· Zinc Finish
