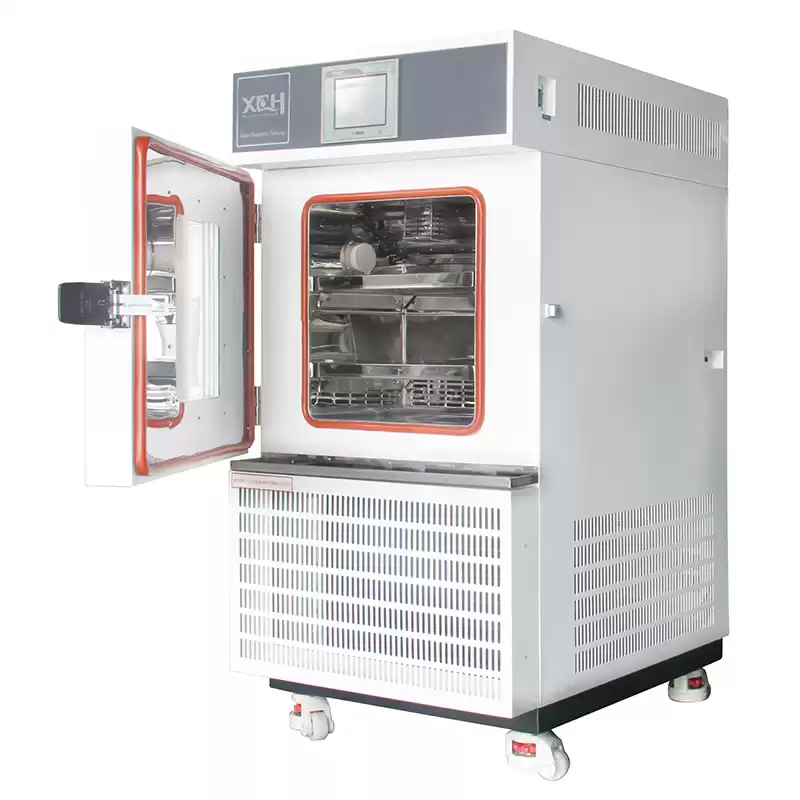

High and Low Temperature Test Chamber
The High and Low Temperature Test Chamber used for adaptability test of electrical and electronic products, components and materials in storage, transportation and use under high temperature and low temperature environment.
Key Features:
• Airduct System: Adopt the latest airduct system design achieves good uniform of temperature form different parts inside the chamber.
• Chamber Materials：The exterior is coated with high quality steel plate，The liner is made of mirror stainless steel 304
• Refrigeration System: The imported fully enclosed industrial compressor, high efficiency, low noise, stable continuous operation.
• Control system: Programmable chromatic touch screen controller，With multi - segment program and constant value function.
• Data management: With electronic data storage function,Data can be exported by USB flash drive.
• Safety Device: Compres or overheat protection and overload protection，Fan overheating protection,overtemperature protection alarm.
• Sound-light alarm: Temperature upper and lower limit deviation alarm.
• Temperature control accuracy: Temperature Fluctuation ＜ ±0.5℃ ,Temperature Deviation ＜ ±2.0℃
• Temperature control rate: Heating Rising Rate: 1 ～ 3℃ /Min,Cooling Fall Rate: 0.7 ～ 1℃ /Min
• Environment temperature: +5 ～ 35℃
• Power: AC220V±10% 50HZ
Model & Parameters:
| MODEL
|
TEMP CONTROL RANGE( ℃ )
|
CAPACITY(L)
|
INTER DIMEN
W×D×H(mm)
|
EXTER DIMEN
W×D×H(mm)
|
Shelf
(Standard)
|
REMARK
|
|
XCH-100GDB
|
-40 ～ 150
|
100
|
450×450×500
|
680×1040×1570
|
2
|
Customized for
different TEMP
ranges
|
XCH-250GDB
|
-40 ～ 150
|
250
|
600×600×700
|
1100×1000×1900
|
2
|
XCH-500GDB
|
-40 ～ 150
|
500
|
800×700×900
|
1280×1180×2000
|
3
|
|
XCH-1000GDB
|
-40 ～ 150
|
1000
|
1000×1000×1000
|
1500×1500×2200
|
4
|
Application:
Used for adaptability test of electrical and electronic products, components and materials in storage, transportation and use under high temperature and low temperature environment.
Advantages:
Sensitive, small system error
Programmable color touch screen controller
No pollution source and is easy to clean
Easy to operate
