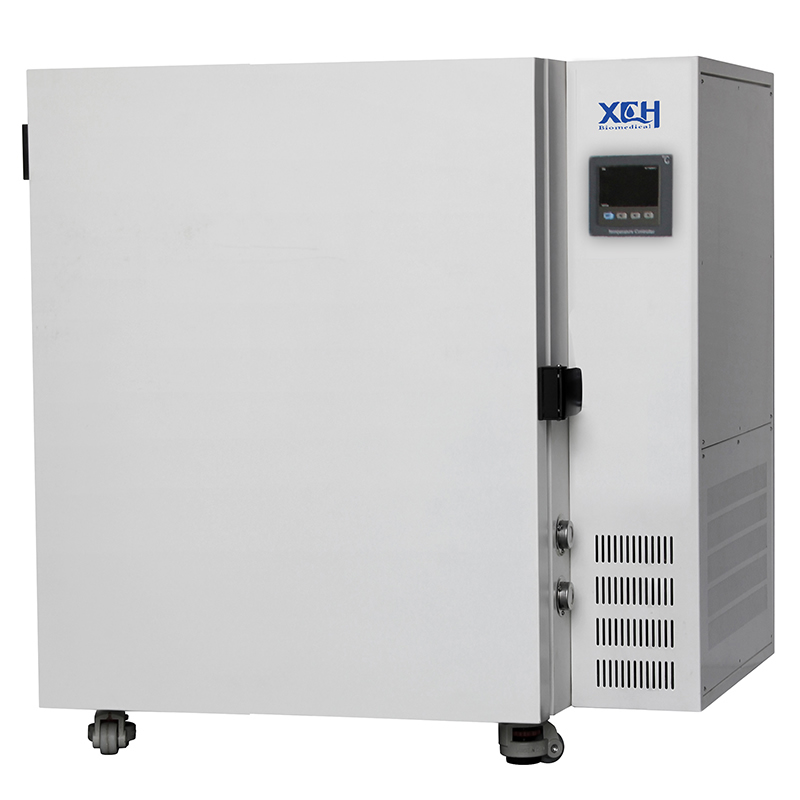

High Temperature Constant Temperature Test Chamber

The high temp high humidity test chamber simulates harsh weather conditions to test the product's ability to withstand extreme temperatures and humidity, analyze and evaluate whether components and materials can be stored, transported and used at high and low temperatures for a long time in the terminal market without damage.


The XCH benchtop environmental chamber has a capacity range from 100L to 1000L

Model: 100GW-1000GW/GWH

TEMP Range: 10~200℃

Fluctuation: <±0.5℃

Deviation: <±2.0℃(200)
Deviation: <±3.0℃(200~300)




High temperature testing chamber

The high temperature chamber is mainly used to test the adaptability of electronics, electrical appliances, food, automobiles, rubber and plastics, metals and other products, parts and materials in high temperature alternating humid and hot environments during storage, transportation and use.

It is a reliable temperature chamber for cold, hot, wet, dry resistance, quality control and other tests on various electronics, electrical appliances, electronics, plastic materials and devices.


Key Features:

• Adopt the latest structure design, good temperature uniformity inside the chamber.
• Imported executive components ensure stable and reliable performance.
• The original imported temperature controller,High temperature control accuracy.
• Low noise motor and stainless steel multi - wing centrifugal wheel are used.
• The circuit control panel and other components are fixed in a position convenient for inspection and maintenance.
• Safety Device: Fan overheating protection,Independent overtemperature protection alarm system.
• Sound-light alarm: Temperature upper and lower limit deviation alarm
• Temperature Control: Temperature Fluctuation ≤ ±0.5℃,Temperature Deviation ≤ ±2.0℃(@200℃)
• Installed Power: AC220V±10% 50HZ(Above 500L:AC380V±10%)

TEMP Range: 10~200℃

Fluctuation: <±0.5℃

Deviation: <±2.0℃(200)
Deviation: <±3.0℃(200~300)



Model & Parameters:


MODEL TEMP CONTROL RANGE CAPACITY INTER DIMEN
W×D×H(mm)
EXTER DIMEN
W×D×H(mm)
POWER TRAYS
XCH-100GWH RT+10 ~ 200 100L  450×450×450  1100×700×800 2.0KW 2
XCH-250GWH
RT+10 ~ 200
250L 600×600×700
1250×850×1000
3.0KW 2
XCH-500GWH
RT+10 ~ 200
500L 800×700×900
1450×1200×1200
4.0KW 2
XCH-1000GWH RT+10 ~ 200 1000L 1000×1000×1000 1650×1650×1300 4.5KW 4

Application:


Electronic parts. Home appliances. Auto parts. Telecommunications. Aerospace. Packaging. Pharmaceuticals. Photovoltaic industry. Materials, textiles, pharmaceutical packaging.

Suitable for high temperature test of electrical and electronic products and materials.


Advantages:


Sensitive, small system error
Programmable color touch screen controller
No pollution source and is easy to clean
Easy to operate
