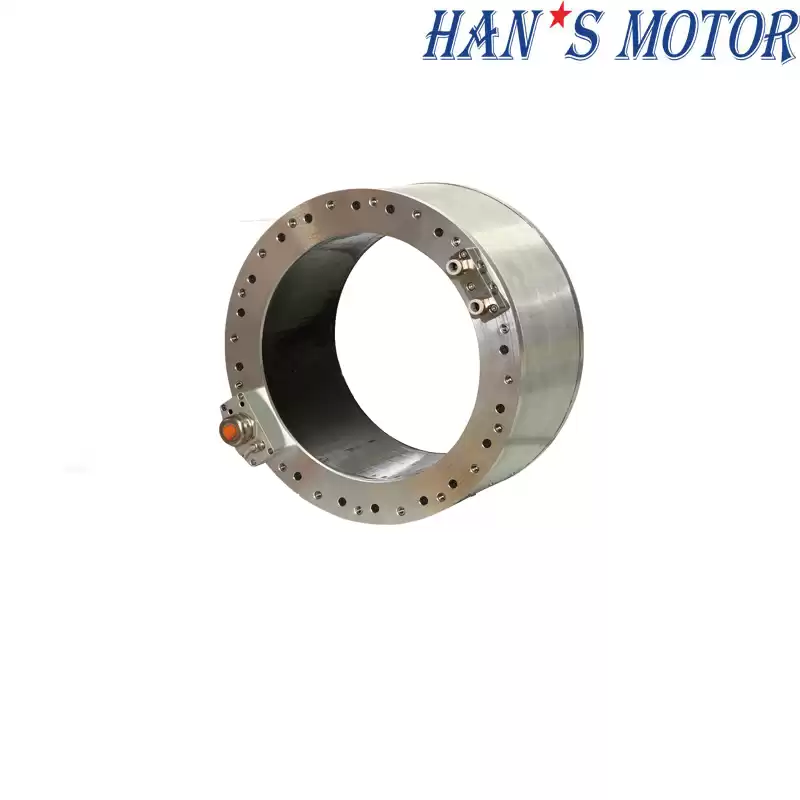

High Efficiency DDR BI10 Series Frameless Inner Rotor Torque Motor

High Torque Frameless Inner Rotor Torque Motor BI Series

DDR BI10 Series

Features:

1. Direct drive, high dynamic response;

2. Inner rotor/outer rotor structure;

3. High speed/low speed winding design;
4. HEIDENHAIN absolute encoder;

5. It can be divided into stator and rotor, the maximum peak torque is 5500Nm;
6. Reliable performance, mature process, fast delivery

Product types

Water cooling motor

Better heat dissipation with water cooling device, added double times of torque for the same size of motor, suit for machine tools area.

Natural cooling

Flexible usage, used in nonstandard and compact applications, such as Robot joint.

Products Name: High Torque Frameless Inner Rotor Torque Motor BI Series

Product Specifications

Torque Motor BI10 Series Specification
Motor Model No.：BI10-xxx-S-x-0-0			003-S-A-0	005-S-A-0
Performance Parameters	Symbol	Unit
Pole pairs	p	—	16	16
Max.Working Bus Voltage	Vdc	V	310	310
Peak torque	Tp	Nm	75	150
Continuous torque (Water cooling)	Tcw	Nm	--	—
Continuous torque (Natural cooling)	Tc	Nm	25	50
Peak Current	Ip	Arms	11	11
Continuous current (Water cooling)	Icw	Arms	--	—
Continuous current ((Natural cooling)	Ic	Arms	3.5	3.5
Torque Constant	Kt	Nm/Arms	7.3	14.5
Back EMF Constant	Ke	Vrms/rad/s	2.4	4.8
Back EMF Constant	Ke	Vrms/(1000r/min)	438.0	877.0
Line Resistance	R	Ω	4.4	8.0
Line Inductance	L	mH	11.0	18.0
Max.speed,Tcw	Nmax,Tcw	rpm	--	—
Max.speed,Tc	Nmax,Tc	rpm	410	200
Max.speed,Tp	Nmax,Tp	rpm	300	115
Max.speed,0	Nmax	rpm	450	240
Power consumption, output Tcw	Plw	W	--	—
Power consumption, output Tc	Plc	W	113.0	206.0
Motor constant	Km	Nm/√W	2.4	3.5
Cooling water flow	dV/dt	L/min	--	—
Cooling water temperature difference setting	△θ	k	--	—
Rated winding temperature	θ	℃	120	120
Motor Mass	Ms	Kg	7.0	10.0
Rotor Mass	Mr	Kg	2.4	4.4
Rotor Moment of Inertia	Jm	Kg*m2	0.0110	0.0209
Cable length (Can be extended optional)	L	M	3.0	3.0
Cable Minimum bending radius	R	mm	37.5	37.5

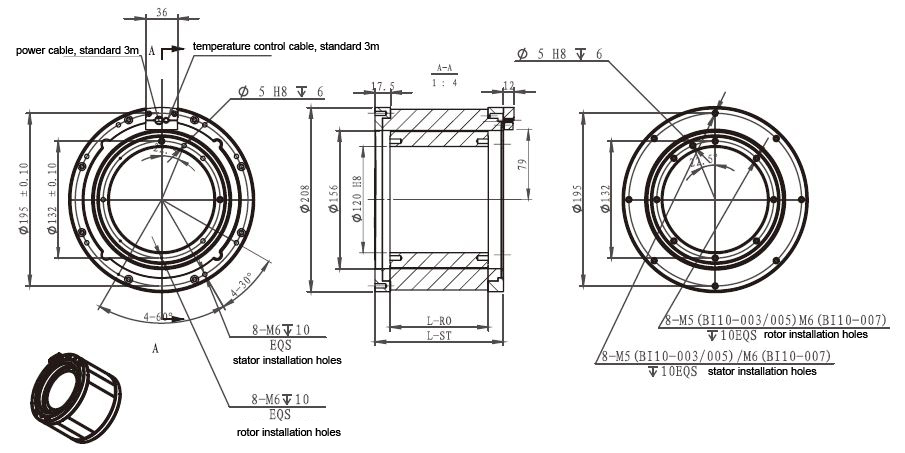

Dimension

Characteristics:
• Low-noise, and insulation of high temperature
• High-torque

• CE and EMC quality certification

Running smoothly, high quality and excellent performance

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
