High Frequency Coil Former EF25 5+5 Pins Bobbin

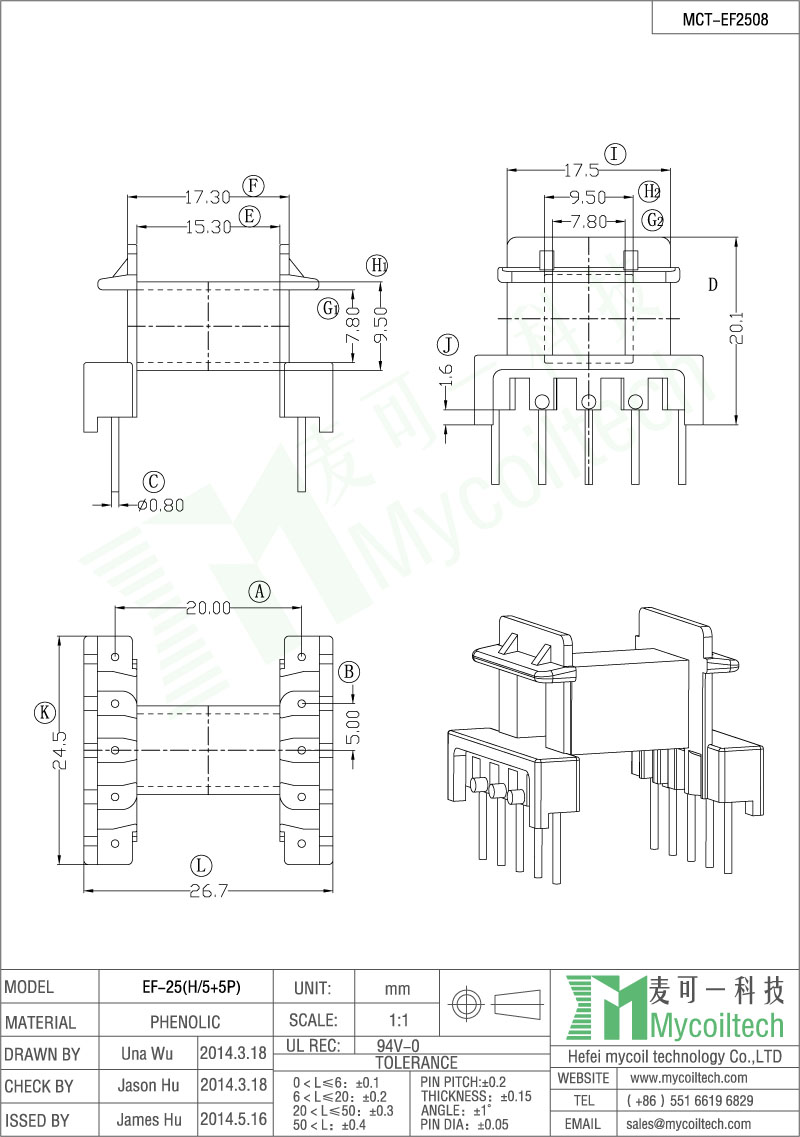

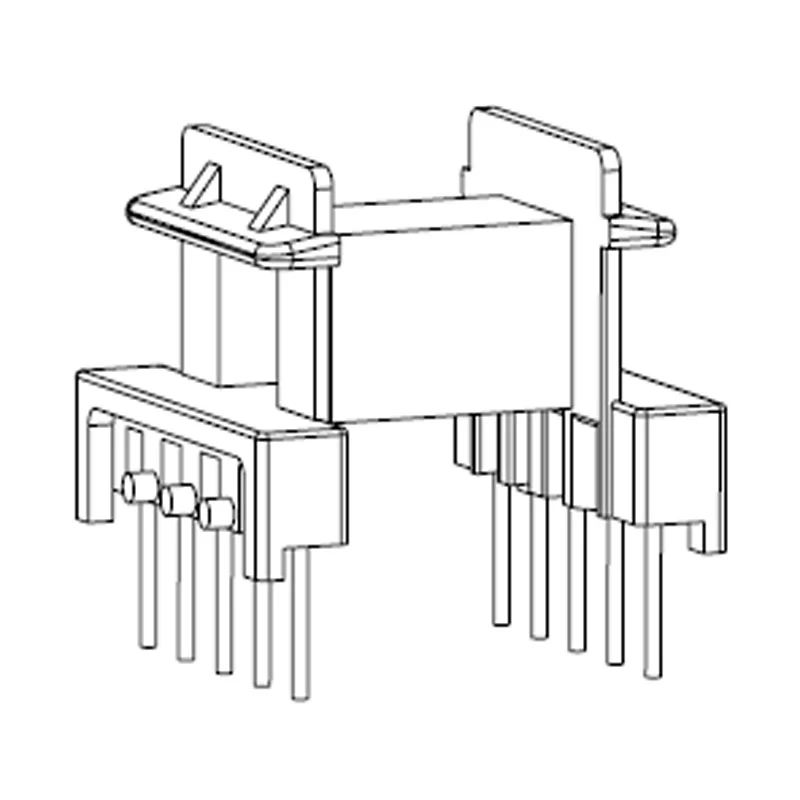

EF25 horizontal winding bobbin. 5+5 pins  coil former. Bobbin Size=26.7mmX24.5mmX20.1mm. Parallel Distance=20mm. Pin pitch=5mm. We can make bobbin tooling. DIP transformer bobbin.



Professional transformer bobbin factory, 5+5 pins EF25 coil bobbin, we can send samples in d days, custom design also acceptable.


Quick Details

Part No: MCT-EF2508

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: High Frequency Coil Former EF25 5+5 Pins Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

EF25 horizontal coil former supplier
