High Frequency Ferrite Core ETD and EC Series Ferrite Core

ETD and EC ferrite core coupling position is good,center column is circular,easy to winding and increase winding areas,used inlarge power small leakage inductance transformer.



Quick Details

Part Number: ETD & EC Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: High frequency,low power lossHigh value

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: High Frequency Ferrite Core ETD and EC Series Ferrite Core

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: Electronic ballasts. Switching power transformers. Pulse transformers. Switching power transformers. Power Conversion Transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

ETD and EC Series Ferrite Core for High Frequency Transformers and Inductors

latest top quality EC ferrite core    Best price ETD series ferrite core

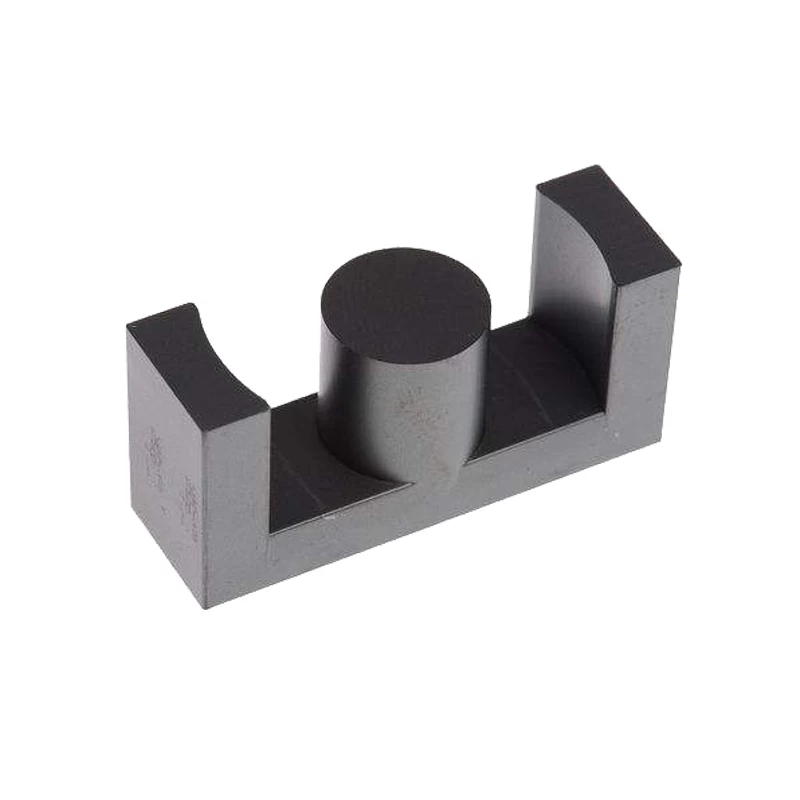

   Fig 1: EC type Ferrite Core                          Fig 2: ETD Type Ferrite Core


ETD and EC Ferrite Series Core Materials: M10P, M7P, M5P, MP4

TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

ETD19

19.6±0.4

13.65±0.25

7.40±0.25

14.40

7.40±0.2

9.40±0.15

14

ETD24

24.7±0.6

14.95±0.25

8.50±0.3

18.8

8.50±0.3

10.1±0.1

20

ETD29

30.6-1.6

15.8±0.2

9.8-0.6

22.0

9.8-0.6

11.0±0.3

28

ETD34

33.4+1.6

17.5-0.4

11.1-0.6

25.6

11.1-0.6

12.1±0.3

40

ETD39

38.2+1.8

19.8±0.2

12.8-0.6

29.3

12.8-0.6

14.2+0.8

60

ETD44

43.0+2.0

22.5-0.4

15.2-0.8

32.5

15.2-0.8

16.5±0.4

94

ETD49

48.6±1.1

24.7±0.2

16.7-0.6

36.1

16.7-0.6

17.7+0.8

124

ETD54

54.5±1.3

27.6±0.2

18.9±0.4

40.1

18.9±0.4

20.2±0.4

180

ETD59

59.8±1.3

31.0±0.5

21.65±0.5

43.6

21.65±0.5

22.5±0.5

260

EC35

34.5±0.8

17.3±0.15

9.8-0.6

22.2

9.8-0.6

11.9+0.7

36

EC41

40.6±1.0

19.65-0.3

11.9-0.6

26.3

11.9-0.6

13.5+0.8

52

EC52

52.2±1.3

24.2±0.15

13.4±0.35

32.1

13.4±0.35

15.9±0.4

110

EC70

70.0±1.7

34.5±0.15

16.4±0.4

43.3

16.4±0.4

22.75±0.45

258

EC90

90.0±1.8

45.0±1.3

30.0±1.0

68.5

30.0±1.0

35.5±0.5

698

EC120

120.0±2.0

50.5±0.1

30.0±1.0

94.3

30.0±1.0

35.5±0.5

780


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

ETD19

1.32

41.3

54.6

2260

1720

ETD24

1.14

56.3

61.9

3480

2125

ETD29

0.985

73.6

70.6

5193

2670

ETD34

0.810

97.1

78.6

7640

2850

ETD39

0.737

125

92

11500

3240

ETD44

0.588

175

103

18000

4110

ETD49

0.534

213

114

24200

4570

ETD54

0.454

280

127

35500

4400

ETD59

0.378

368

139

51200

5400

EC35

0.918

84.3

77.4

6530

2400

EC41

0.735

121

89.3

10800

3200

EC52

0.581

180

105

18900

3400

EC70

0.514

279

144

40200

3900

EC90

0.346

624

216

135000

6000

EC120

0.332

753

250

188250

6300
