High Frequency Low-loss and Big UU Series Ferrite Core

UU series ferrite core has small impedance deviation,big output current,high inductance.Used in filter common mode transformer,choke coils,electronic devices.



China electronic components manufacture Hefei Mycoil Technology Co., LTD. We are skilled at producing and designing electronic transformers, filter inductors, relays, magnetic cores and other electronic components. All magnetic cores design meets the UL certification.


Quick Details

Part Number: UU Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core/ High permeability core

OEM: Available

Features: switching power supplytransformers,choke coils

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: High Frequency and Low-loss Big UU Series Ferrite Core

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Filter common mode transformers. Color TV sets. Inverter welding machine, Plating Power Supply. Computers, monitors and other electronic equipment.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Details

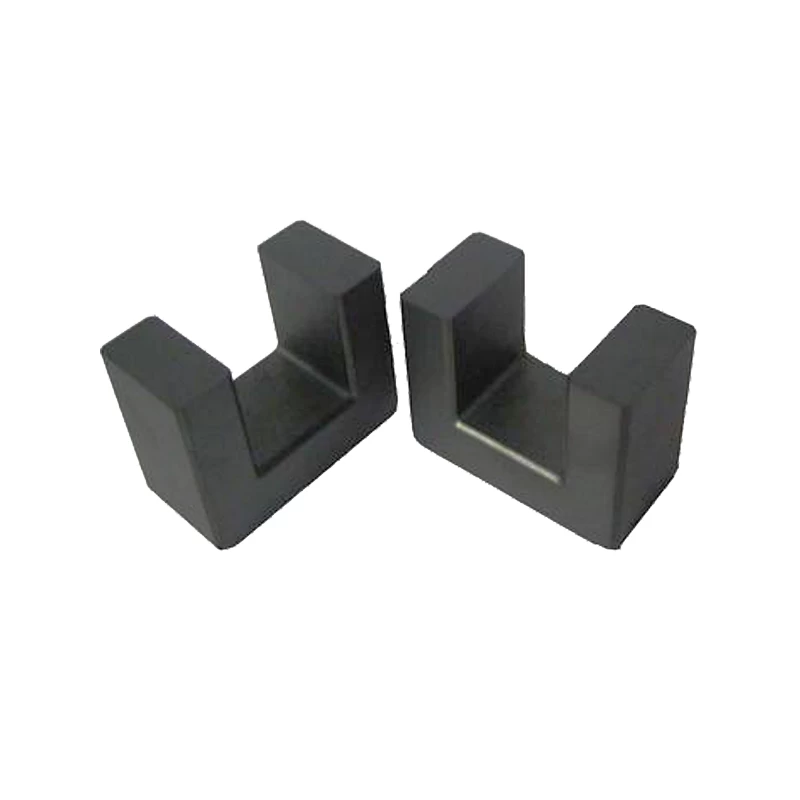

UU Series Ferrite Core


TYPE

Dimension:mm

Weight: g

A

B

C

D

E

F

UU64

65.0±1.5

63.5±1.0

40.0±0.5

20.0±0.5

24.4min

43.0±0.7

1130

UU66

66.0±1.5

55.0±1.0

39.6±0.6

19.5±0.5

25.0min

36.5±1.0

960

UU80

80.0±3.0

85.0±1.0

40.0±1.0

20.0±0.5

40.0min

65.0±1.0

1600

UU93

93.0±2.0

76.0±1.0

30.0±0.6

28.0±0.6

34.6min

48.0±1.0

1440

UU101

101.0±2.5

57.0±1.0

25.4±0.8

25.4±0.6

49.5min

31.95±1.0

1000

UU120

120.0±3.0

117.5±1.5

40.0±0.8

30.0±0.6

59.0min

87.5±1.5

3300

UU126

126.0±4.0

91.0±1.0

20.0±0.8

28.0±0.6

68.0min

63.0±2.0

1360


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

UU64

0.355

806

286

230000

7000







UU66

0.343

759

260

197000

6800







UU80

0.543

801

435

348000

5500min







UU93

0.409

860

351

302000

5500







UU101

0.484

637

309

197000

5060min







UU120

0.470

1200

564

677000

5200







UU126

0.850

560

480

268800

2679
