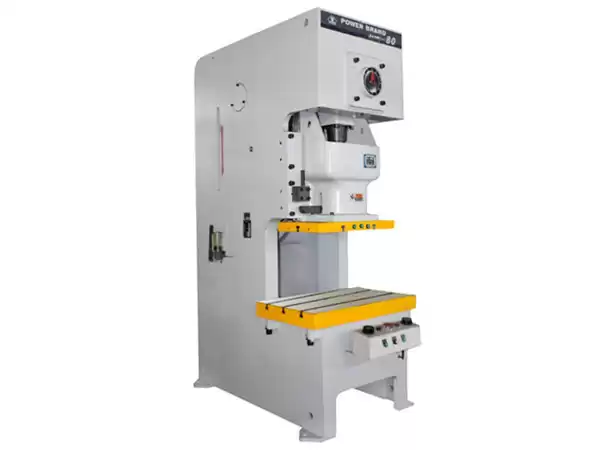

High Performance Fixed Table
Pneumaulic dry friction clutch-brake with flexible movement and reliable performance;
Imported PLC centralized control electric system,safety dual valve control air system realize flexible move,single and continuous stamping,urgent stop and other operations safety and reliable;
Optional photo-electronic safety device,transmission output axle,feeder,air cushion and other optional accessories are available for this power press subject to user's demands.
|
Nominal Pressure: 2000kN
|
|
Nominal Pressure Stroke: 6mm
|
|
Stroke of Slide: 180mm
|
|
Strokes: 35per / Score
|
|
The maximum die height: 450mm
|
|
Die height adjustment: 110mm
|
|
Table size: 760×1130×160mm
|
|
Slider bottom size: 650×850mm
|
|
Side hole size: 800×370mm
|
|
Worktop Plane to ground distance: 1030mm
|
|
The distance between the columns: 1200mm
|
|
Main motor power: 18.5KW
|
|
Air pressure: 0.55MPa
|
|
Temperature: -10℃—40℃
|
|
Relative humidity: ≤90%RH
|
|
Voltage: 380V/50Hz±10%
|
|
Control voltage: 220V/50Hz±10%
|
|
Processing materials: Cold-rolled or hot-rolled steel
|
|
Basic configuration
|
|
No.
|
Name
|
Brand
|
|
1
|
Steel welded frame/Fireplace annealing
|
Own production
|
|
2
|
Dry clutch
|
High performance and high torque clutch
|
|
3
|
Bearing
|
HRB
|
|
4
|
Skeleton oil seal
|
NAK
|
|
5
|
Safety double valve
|
Toyooki
|
|
6
|
Hydraulic overload protection
|
SHOWA
|
|
7
|
Hydraulic overload high pressure oil seal
|
DICHTOMATIK
|
|
8
|
Modem motor
|
Fute/Yuejin/Feida
|
|
9
|
Electric grease main lubrication system
|
Liubian
|
|
10
|
Balance cylinder manual lubrication pump
|
Ishan
|
|
11
|
Gas source processing two parts, pressure regulating valve
|
SMC
|
|
12
|
Main motor
|
SIEMENS（≤37kW),Er Lan（≤37kW)
|
|
13
|
Programmable Controllers PLC
|
Mitsubishi
|
|
14
|
Integration panel (including electronic cam)
|
DUCH
|
|
15
|
touch screen
|
Kunluntongtai
|
|
16
|
Preset counter (electronic cam built-in)
|
DUCH
|
|
17
|
AC contactor
|
Schneider
|
|
18
|
Hands button
|
Fuji Electric
|
|
19
|
Switch, open air, switching power supply
|
Schneider
|
|
20
|
Mold lighting
|
Guangzhou Otenn
|
|
21
|
Second off the detection switch
|
Schneider
|
|
22
|
Bolts, screws and other fasteners
|
Taiwan Gem-Year
|
|
23
|
Blowing (blowing) device 1 group
|
Jiangsu CAAP
|
|
24
|
Copper rail
|
Special alloy copper
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
