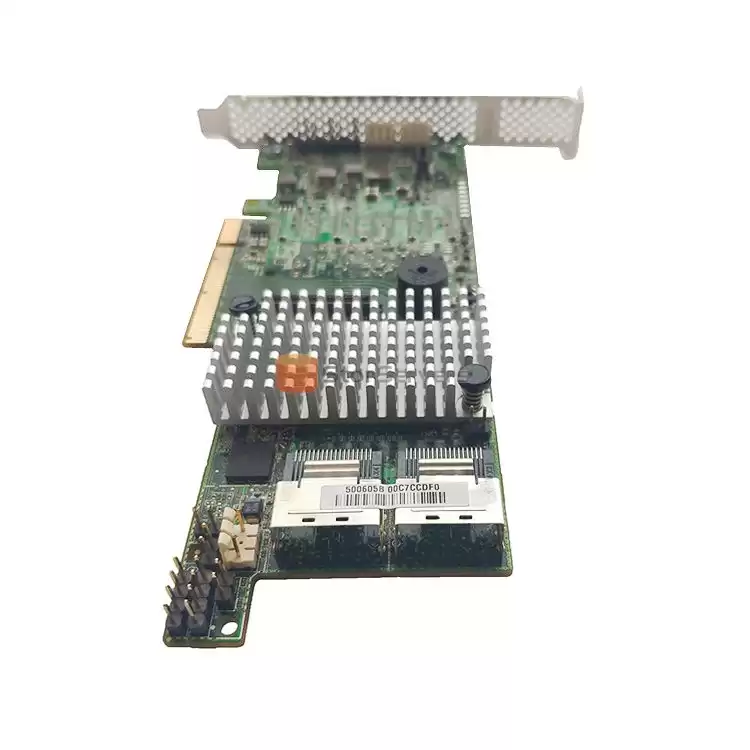

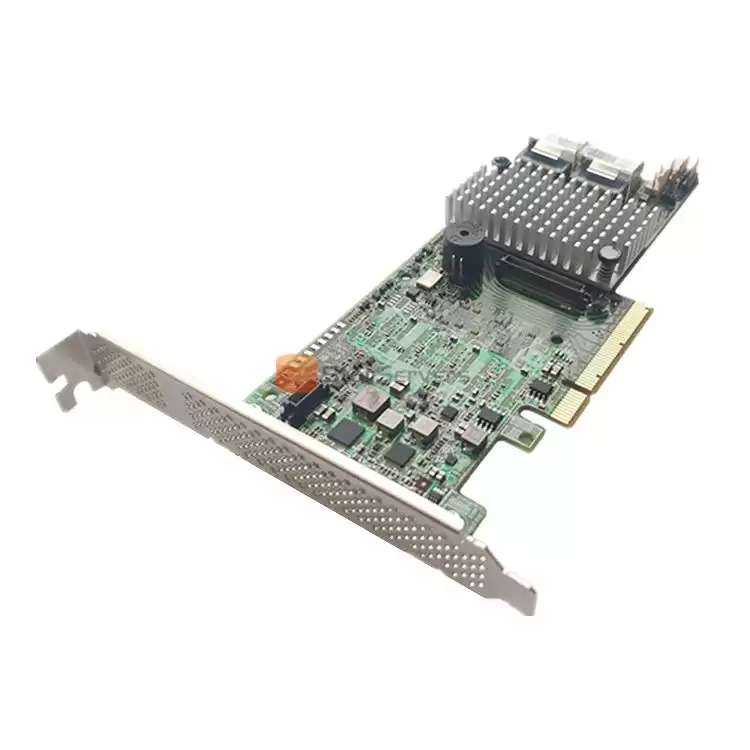

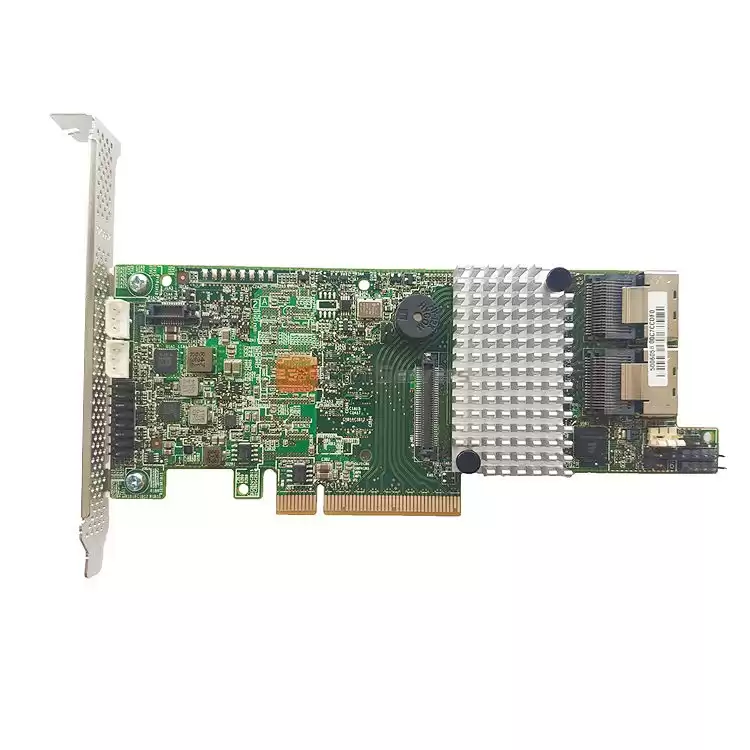

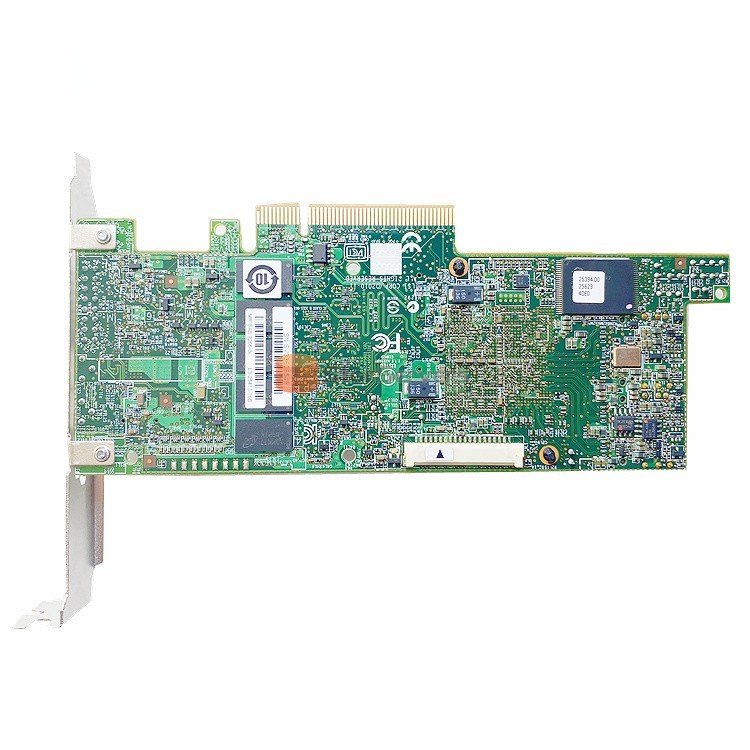

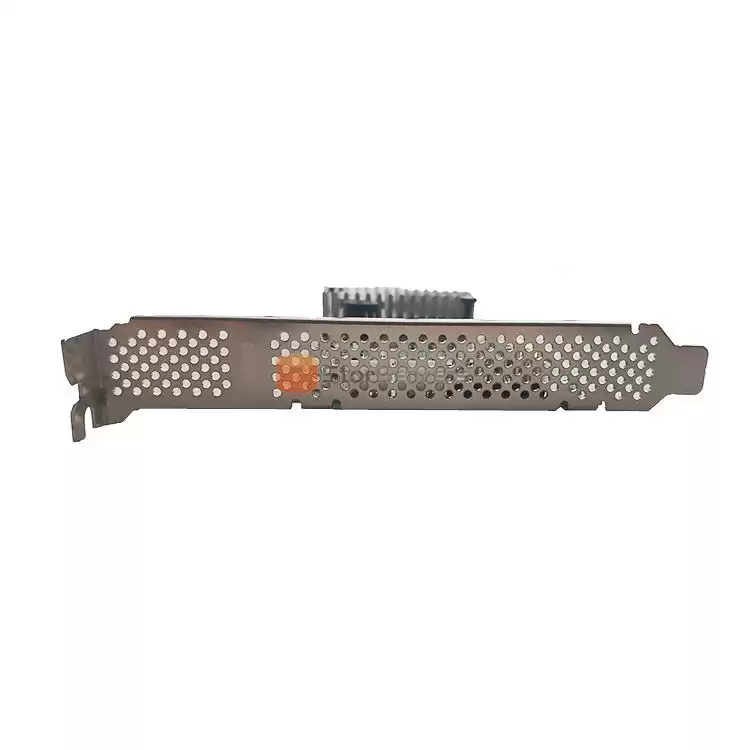

LSI SAS 9266 8i L5-25413-16 LSI00295 6GB/s RAID controller
Key Features
■ Eight Internal 6Gb/s SATA+SAS ports
■ Two Mini-SAS internal connector (SFF8087)
■ LSI SAS 2208 Dual- core 6Gb/s ROC
–x2 800MHz PowerPC Processors
■ 1GB DDRIII cache memory
■ RAID Levels 0, 1, 5, 6, 10, 50 and 60
■ Support for NAND flash or BBU cache protection solution
Key Advantages
■ Unmatched RAID performance
■ Helps users realize potential of solidstate storage deployments
■ CacheVault technology option for greener, lower total cost cache protection (LSICVM01)
■ Heat-tolerant battery backup option (LSIiBBU09)
Specification
| Model |
LSl 9266-8i |
| MPN |
L5-25413-16 |
| OPN |
LSI00295
|
| Connectors |
Two Mini-SAS SFF8087 Internal connector (side mount) |
| Device Support |
Up to 128 SATA and/or SAS hard drives and SSDs |
| Data Transfer Rates |
Up to 6 Gb/s per port |
Cache Memory
|
1 GB 1333MHz DDRIII SDRAM
|
| Host Bus Type |
x8 lane PCI Express 2.0 Compliant |
| l/0 Processor/SAS Controller |
LSI SAS 2208 Dual-Core RAID on Chip (ROC) |
| RAID levels |
0，1，5，6，10，50，60 |
Physical Dimensions
|
MD2 Low profile (6.6” X 2.536”)
|
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
