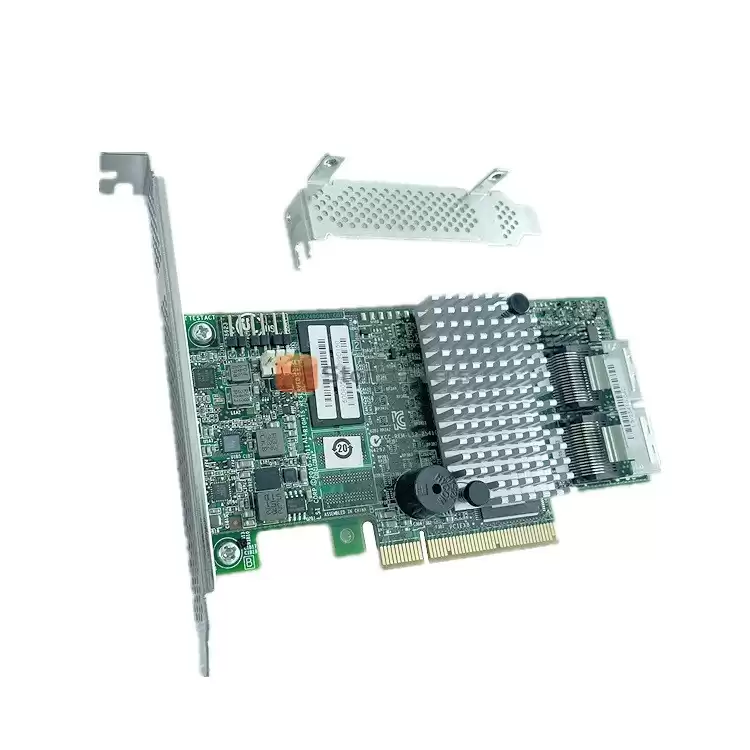

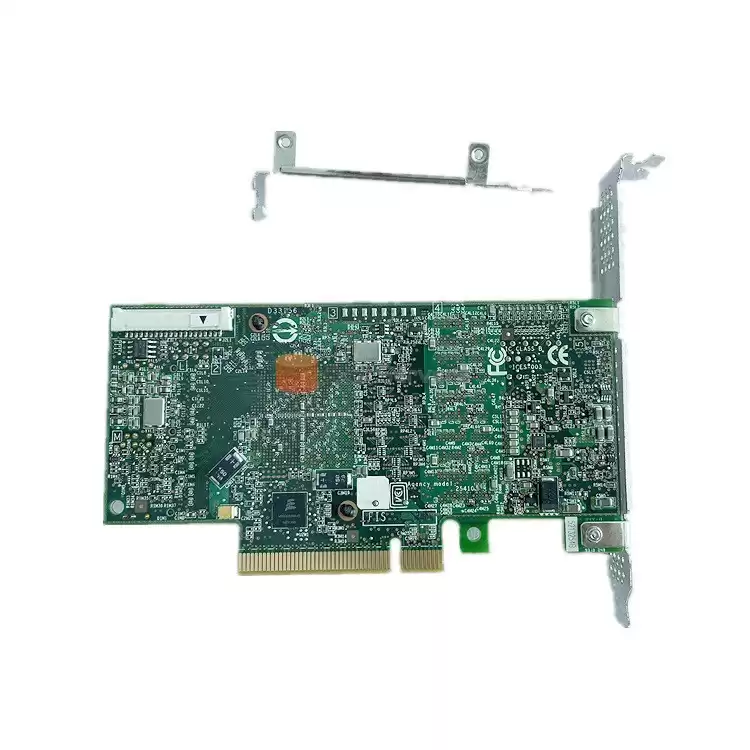

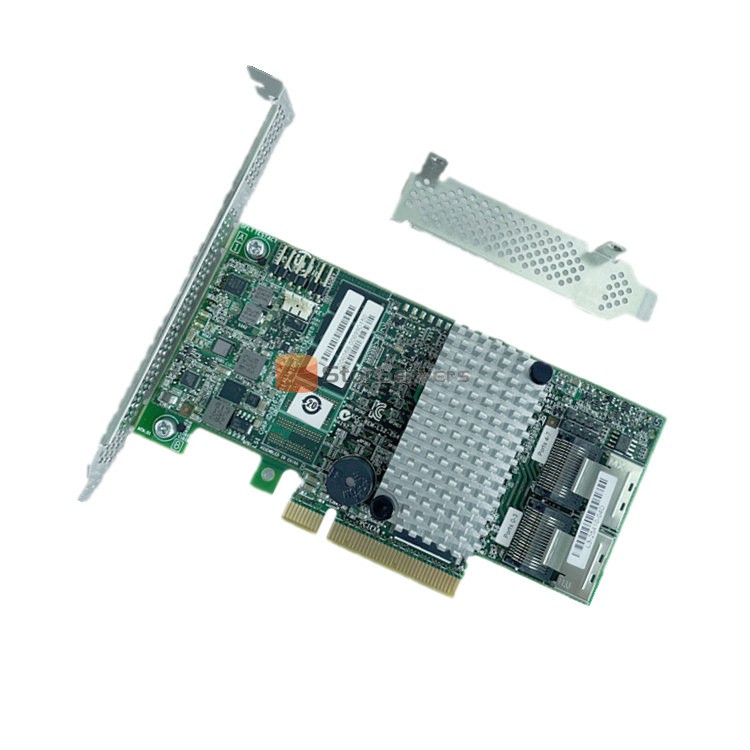

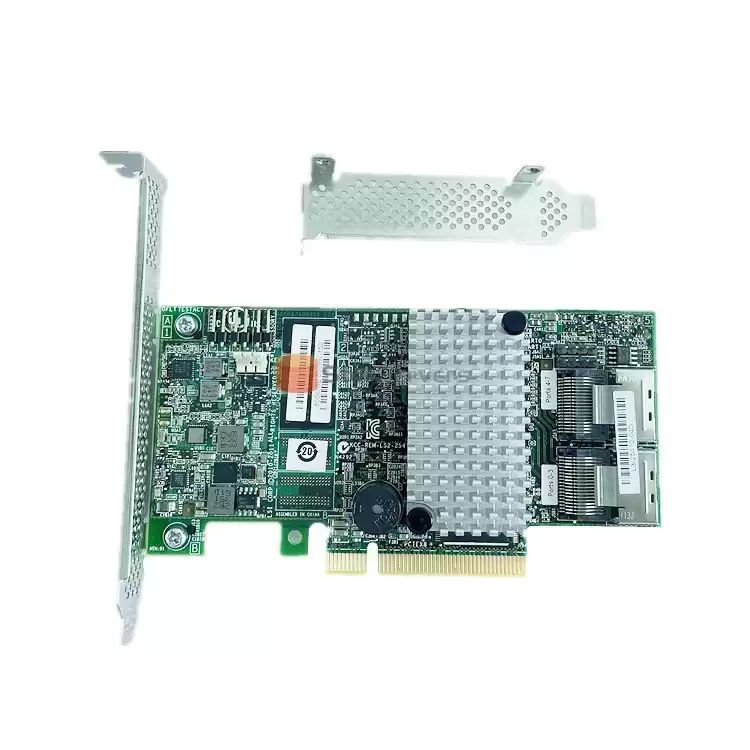

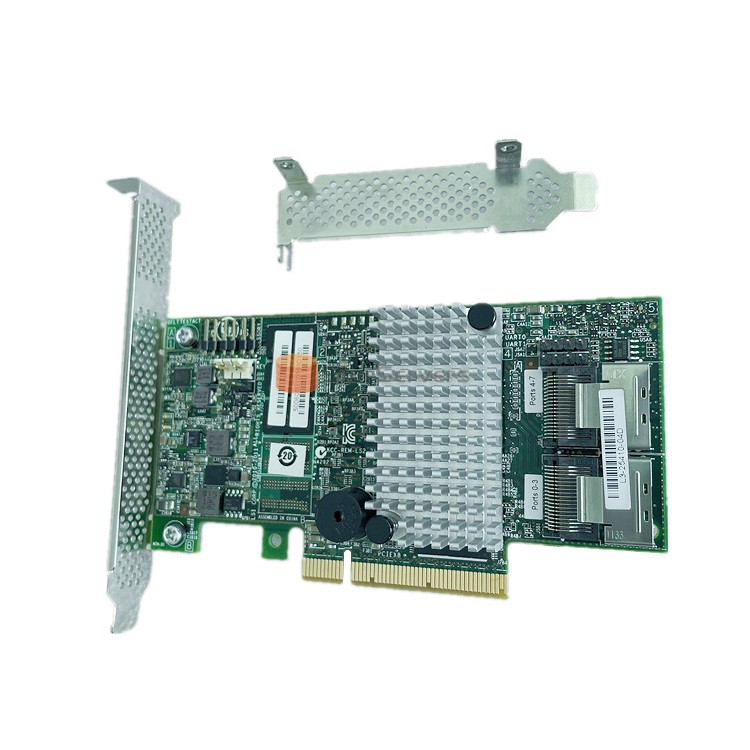

LSI SAS 9267-8i 6GB/s RAID controller card
Product Overview
■ The MegaRAID SAS 9267-8i RAID controller is a PCI-Express® 3.0, low-profile RAID controller that offers a 6-Gb/s transfer rate.
■ The controller uses 1GB of DDR3 1333MHz memory (64-bit data and 8-bit ECC) or an optional 512MB of DDR3 1333MHz memory (32-bit data and 8-bit ECC).
■ In addition, it controls eight internal SAS/SATA ports through two SFF-8087 mini-SAS 4i internal connectors.
■ The MegaRAID SAS 9267-8i RAID controller connects to a remote LSI intelligent Battery Backup Unit 09 (LSIiBBU09).
■ The LSIiBBU09 unit protects the integrity of the cached data on the RAID controller for up to 48 hours (depending on the derated retention time selected) in case of a complete AC power failure or a brief power outage.
Specification
| Model |
LSl 9267-8i |
| Connectors |
Two Mini-SAS SFF8087 Internal connector |
| Device Support |
Up to 128 SATA and/or SAS hard drives and SSDs |
| Data Transfer Rates |
Up to 6 Gb/s per port |
Cache Memory
|
1 GB 1333MHz DDRIII SDRAM
512MB 1333MHz DDRIII SDRAM
|
| Host Bus Type |
x8 lane PCI Express 3.0 |
| l/0 Processor/SAS Controller |
LSI SAS 2208 Dual-Core RAID on Chip (ROC) |
| RAID levels |
0，1，5，6，10，50，60 |
Physical Dimensions
|
MD2 Low profile (6.6” X 2.536”)
|
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
