High PF 0 10v dimmable 12v led driver 80 watt 2 in 1 type in junction box

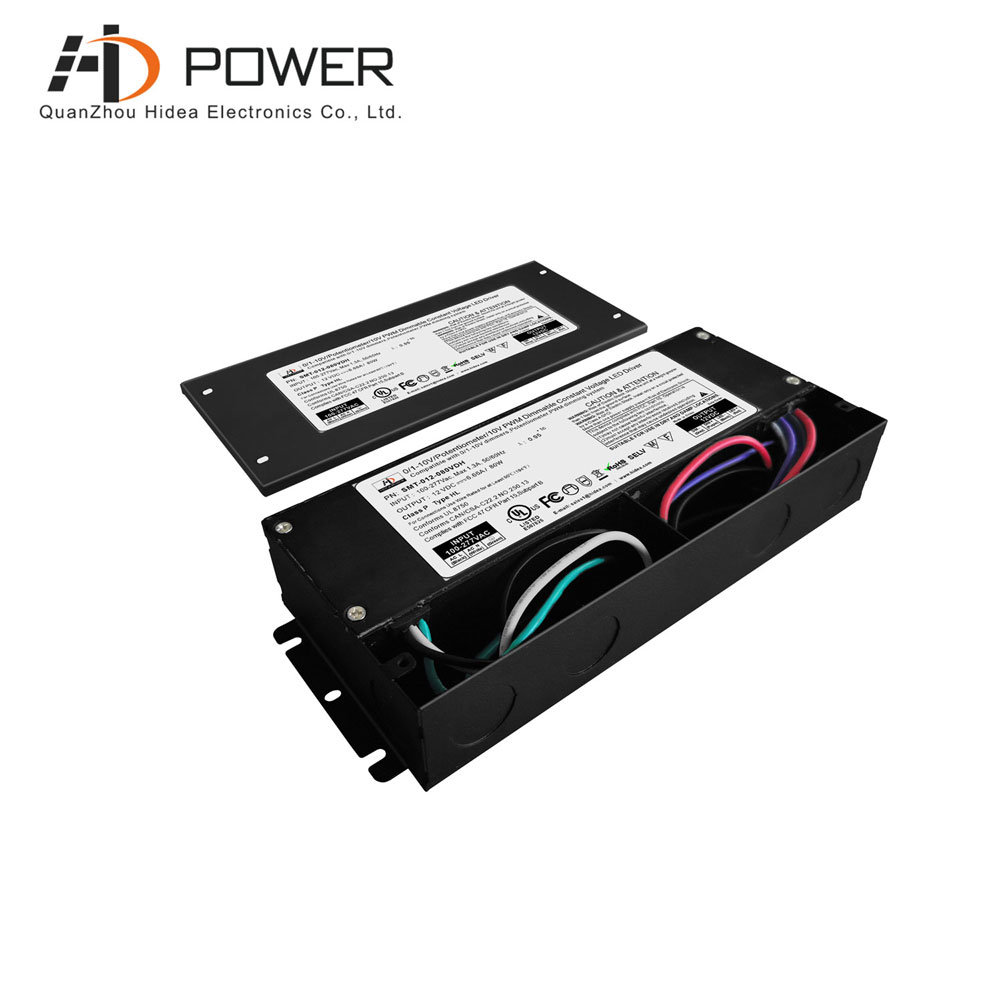

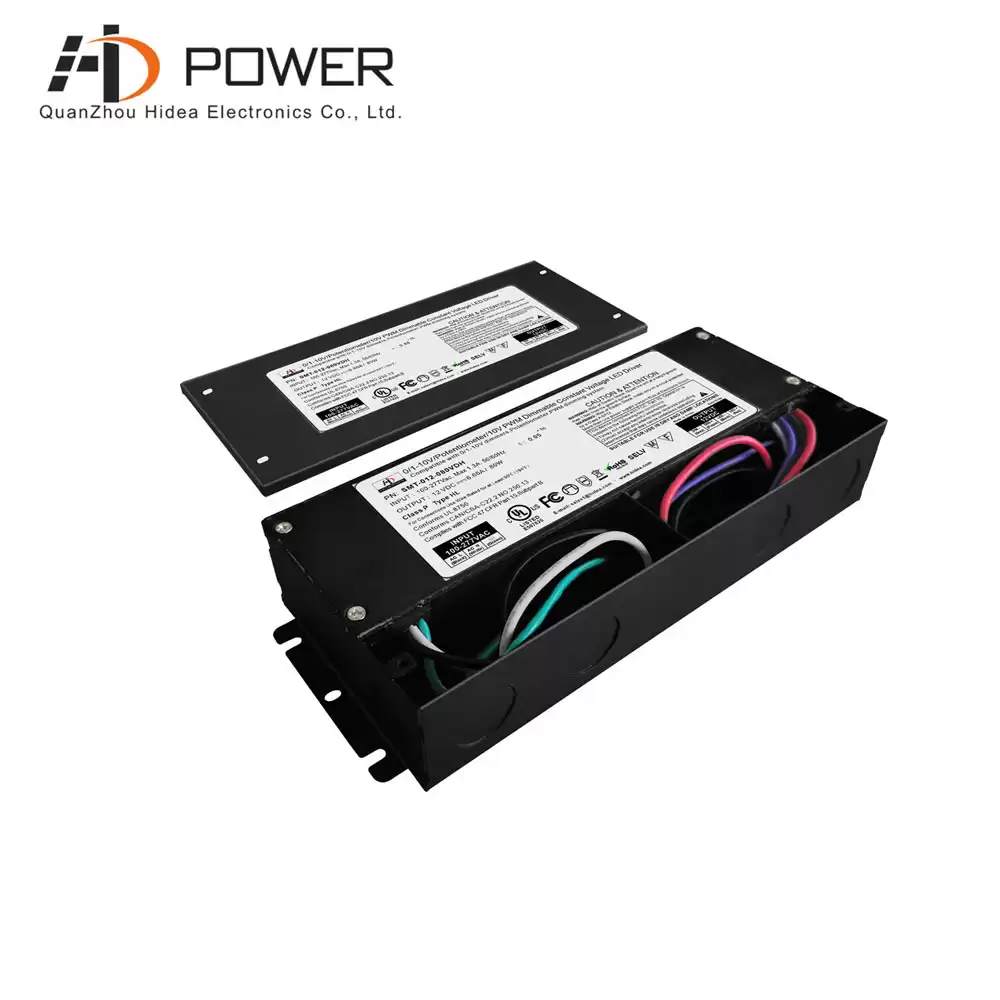

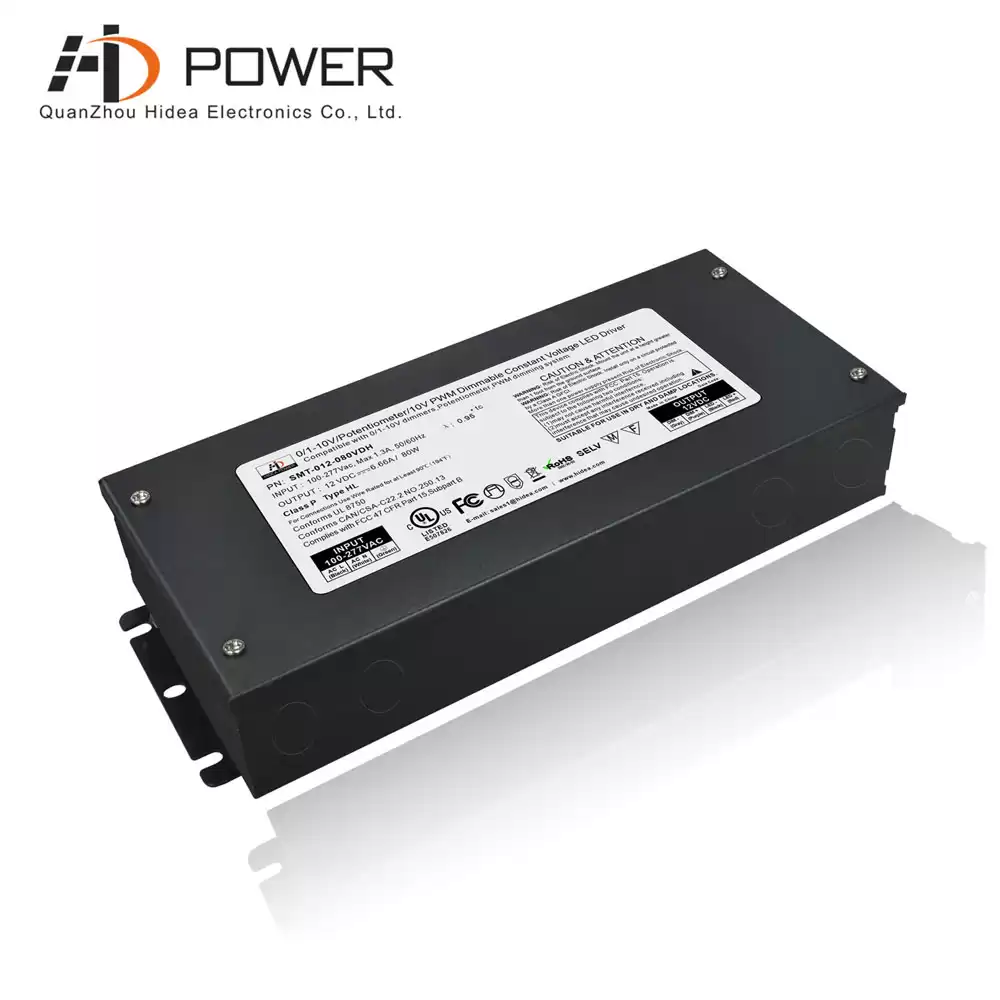

Smarts led driver 80 watt is designed with junction box for dry and damp location. The compact size and standard strain relief 22mm makes it popular in commercial/home projects. AQ lighting strips light can be matched with that.


  • Warranty7 Years
  • CertificationUL/CUL
  • Weight1300g
  • Size220*93*41mm
  • Working ModeConstnat Voltage LED Driver
  • Shape & SizeJ-BOX Driver
  • Output Voltage12/24Vdc
  • Output Power(Watt)80W
  • Input Voltage100-277Vac
  • Dimming Mode0-10V Dimming

The 80w dimmable led driver is compatible with 0 10v smart dimmer. The driver feature in input voltage (100-277VAC  and come in 12 VDC &24VDC voltage output, a perfect way for you to dim a full dimming range.


  Specification

model SMT-012-080VDH (1.0 version)
SMT-012-080VDHV2 (2.0 version)
SMT-024-080VDH (1.0 version)
SMT-024-080VDHV2 (2.0 version)
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Rated current 6.66A 3.33A (class 2 type)
Rated power 80W 80W
Input Voltage Range 100~277V AC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.95/110V , PF≧0.95/277V
THD(Typ.)@ full load <20%
Full Load Efficiency(Typ.) 86%@120VAC   88%@277VAC
AC Current(Typ.) 1.3A @110VAC
Inrush Current (Typ.) 18A, 50%, 1.6ms
Leakage current ﹤0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120% constant current limiting, auto-recovery
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight 1.3Kg (1.0 version)
Size 1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H)
packing 330*280*176mm  /  10PCS/CTN 385*335*200mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

  Compatible Light Type

The 0 10v power supply has the function of cooling by free air convection, which keeps the power supply running  efficiently.

For each driver, 80%-90% is suggested. Under the circumstances, the driver remain long lifetime and better performance. GLLS Leon light shows good result with that.
