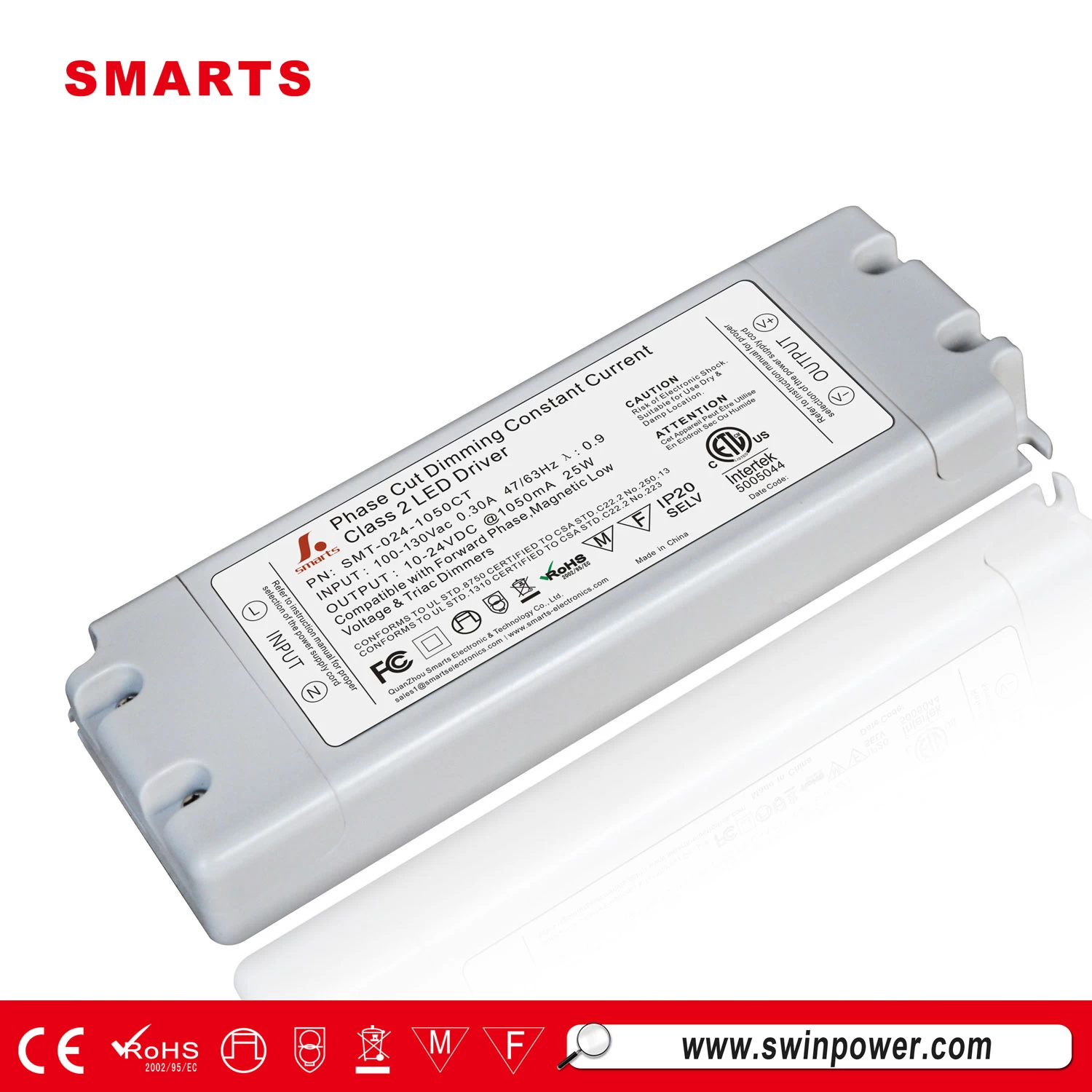

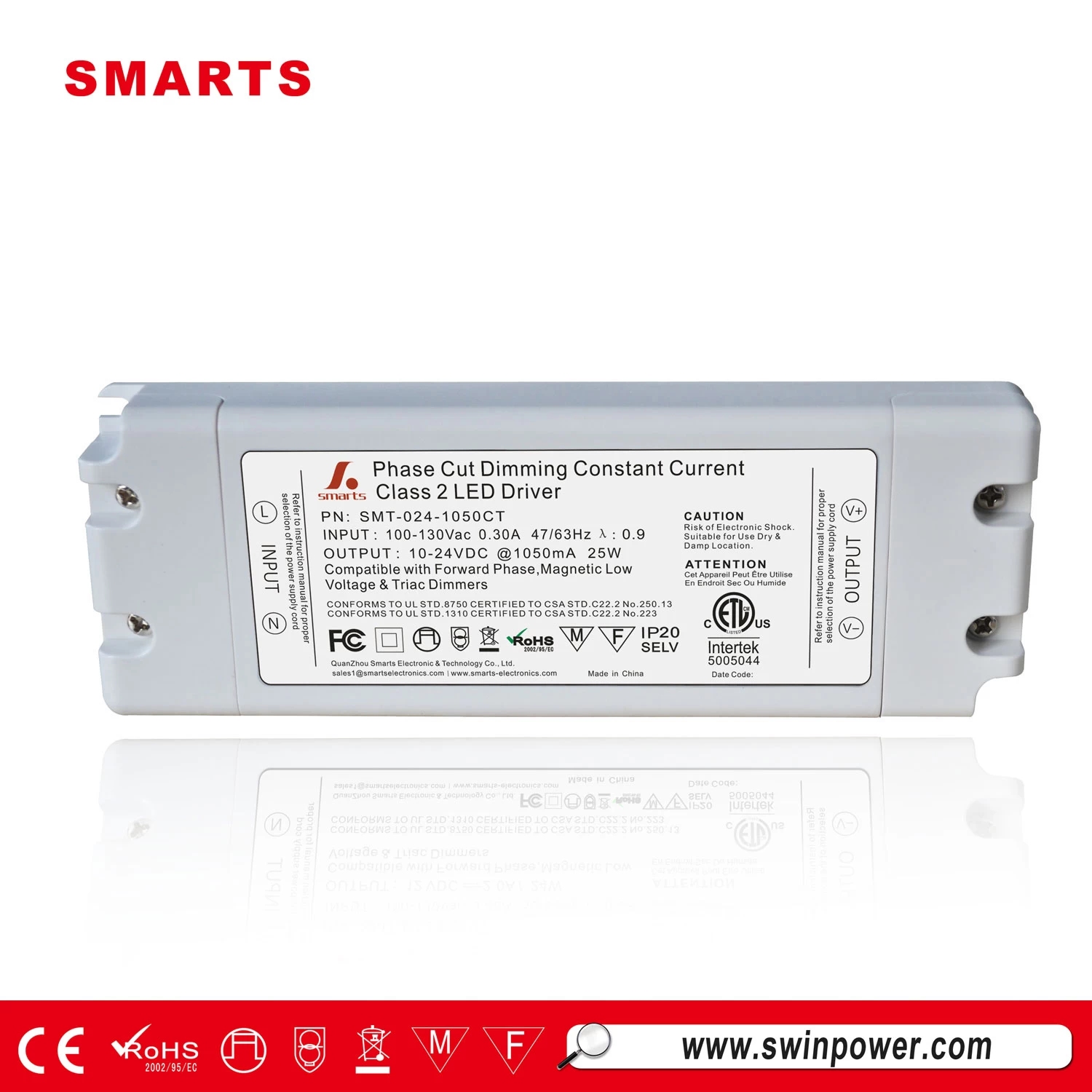

high pfc led driver constant current triac 1050ma dimmable led driver
High efficiency,save energy ,protected environment, assure LED stability long lift and light efficiency by constant voltage dimmable led driver constant current.
Specifications
-
I/P:90-135V/170-265, 47~63Hz
-
Ambient temp.:-20 degree~40 degree full load
-
Efficiency > 88%
-
PFC> 0.9
-
size: 140*45*28mm
-
RippleI & Noise (max.) : 150mVp-p
-
Voltage Tolerance : ±5%
-
Line Regulation : ±1%
-
Load Regulation : ±2%
-
Setup, Rise Time : 500ms, 120ms / 230VAC
-
3 years warranty
Product parameters
|
Model
|
SMT-090-0350CT
|
SMT-048-0500CT
|
SMT-036-0700CT
|
SMT-024-1050CT
|
|
Output
|
DC Current
|
350mA
|
500mA
|
700mA
|
1050mA
|
|
|
Current Accuracy
|
±5%
|
|
|
Voltage Range
|
50-90V
|
30-48V
|
20-40V
|
10-24V
|
|
|
Rated power
|
30W
|
30W
|
25W
|
25W
|
|
Input
|
Voltage Range
|
170～250VAC/(90-130VAC For North America Markets )
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor （Typ.）
|
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
|
|
|
Full Load Efficiency（Typ.）
|
85%
|
86%
|
85%
|
85%
|
|
|
AC Current（Typ.）
|
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
|
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over voltage
|
≦270VAC
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN-61347-1-2
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
0.34Kg/pcs
|
|
|
Size
|
180*60*34mm
m
mmm（L*W*H）
|
|
|
packing
|
324*298*176mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
1. 3.Tolerance:includes set us tolerance,line regulation and load regulation .
|
What is the constant current led driver?
Constant current LED drivers are designed for a designated range of output voltages and a fixed output current (mA). LEDs that are rated to operate on a constant current driver require a designated supply of current usually specified in milliamps (mA) or amps (A). These drivers vary the voltage along an electronic circuit which allows current to remain constant throughout the LED system.
