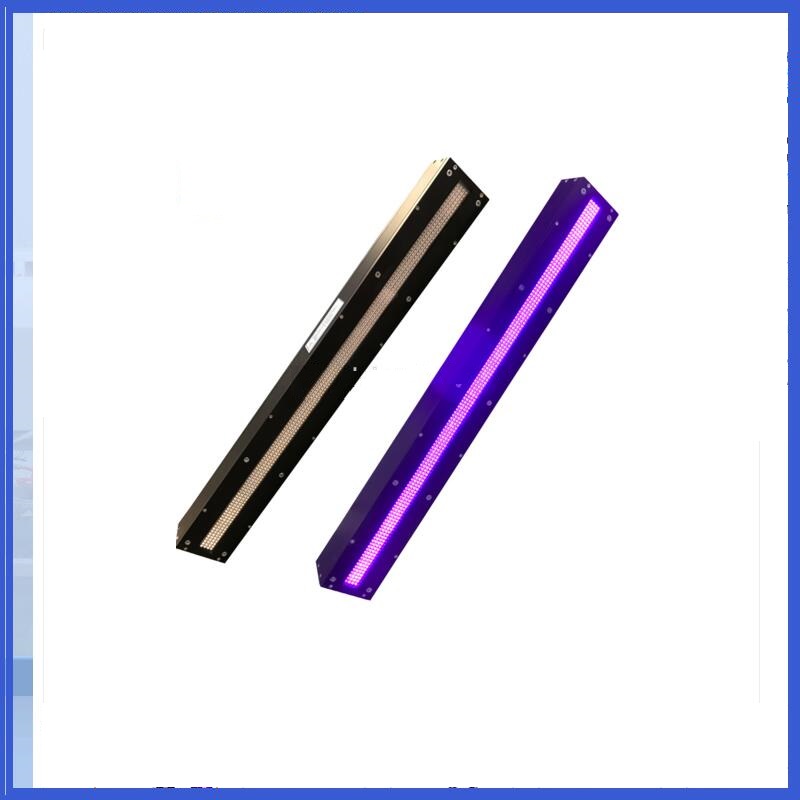

UV LED Curing System Customized UV LED Dryer for Printing Screen and Printing Dryer 395nm

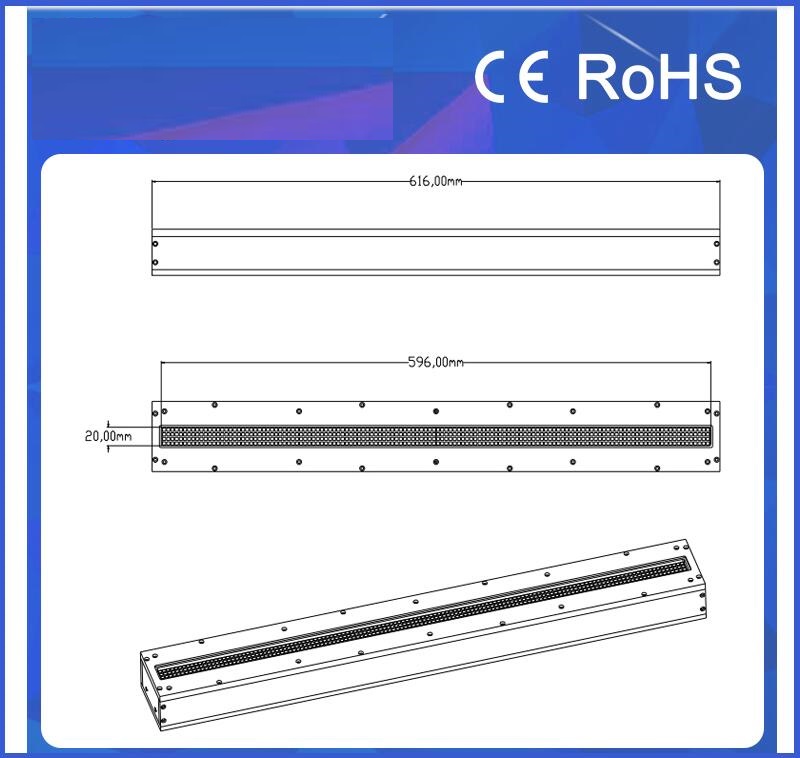

Curing Area of NEW High intensity 395nm light source UV LED Linear Curing system is 600*20mm and its Wavelength is 395nm.



Customized Offset Printer UV LED Curing Systems is 395nm.

Curing Area of NEW High intensity Linear 395nm UV LED Offset Printing Curing Machine is 600*20mm and its Wavelength is 395nm.


About more information of Offset Printer UV LED Curing System, please contact : 1651063690jennifer@gmail.com  Jennifer


UV LED 60020UV LED Dryer for Printing MachineUV LED Screen Printing Dryer 395nm

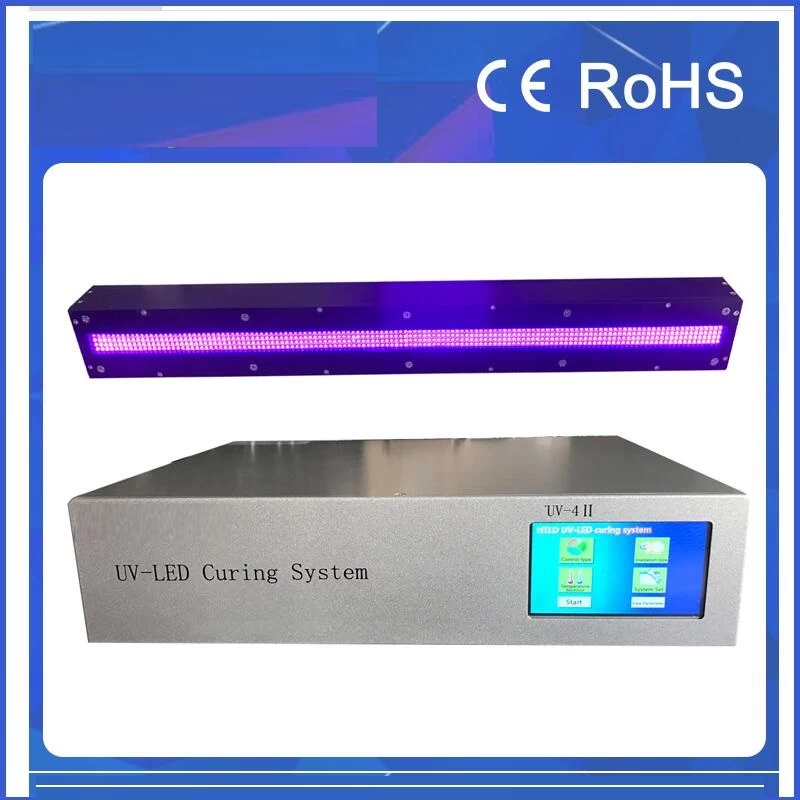

Technical Data of the Retangular LED UV Exposure System Controller for Screen Printing :

Channel

1

The size of controller

L384*W284*H90mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

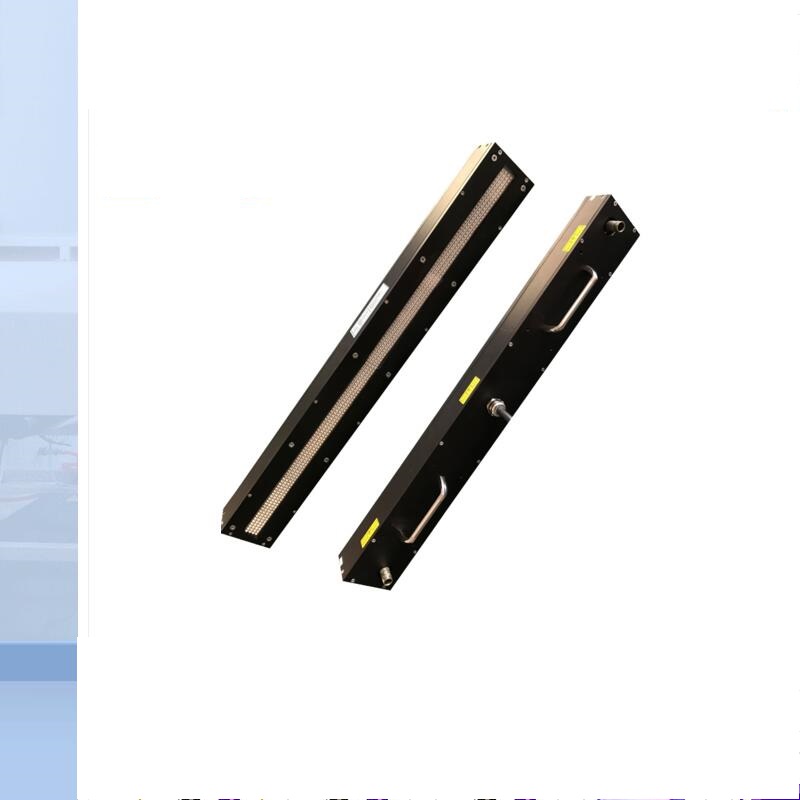

Irradiation Head Specification of LED UV Exposure Source for 3D Printing :

Model

SPC-S528-20X600-395

Setting Specification

700mA  Constant Current

Cooling Method

Water Cooling

Control

UV-4Controller, Channel Alone Control

Curing Area

Length 20mm; Width:600mm

Irradiation Distance

10-15mm

UV LED Curing Head

Wavelength

395nm

Peak Irradiance

18W/cm2

Uniformity

±5~8%
