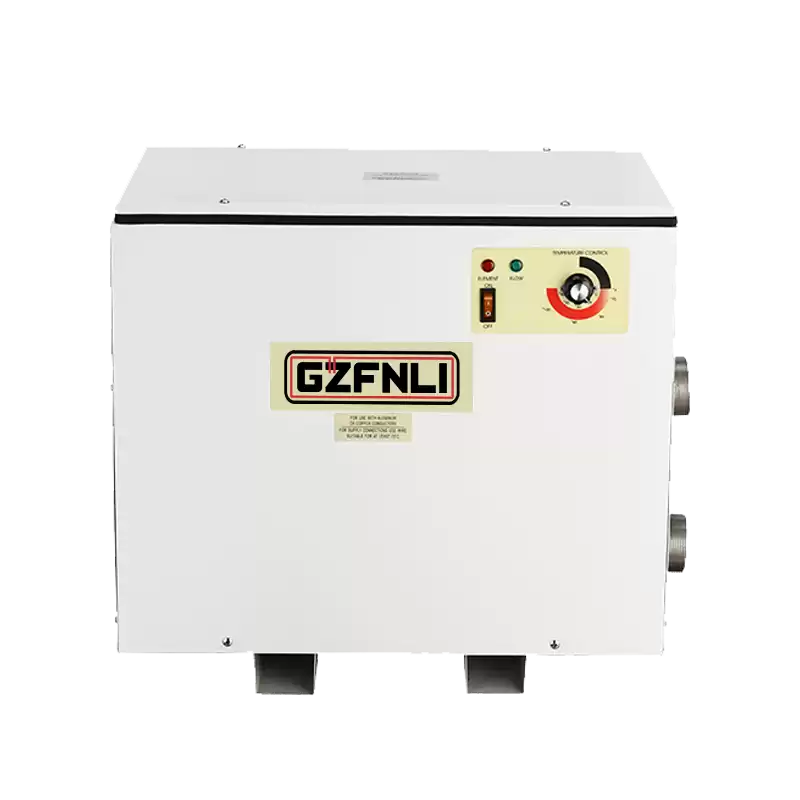

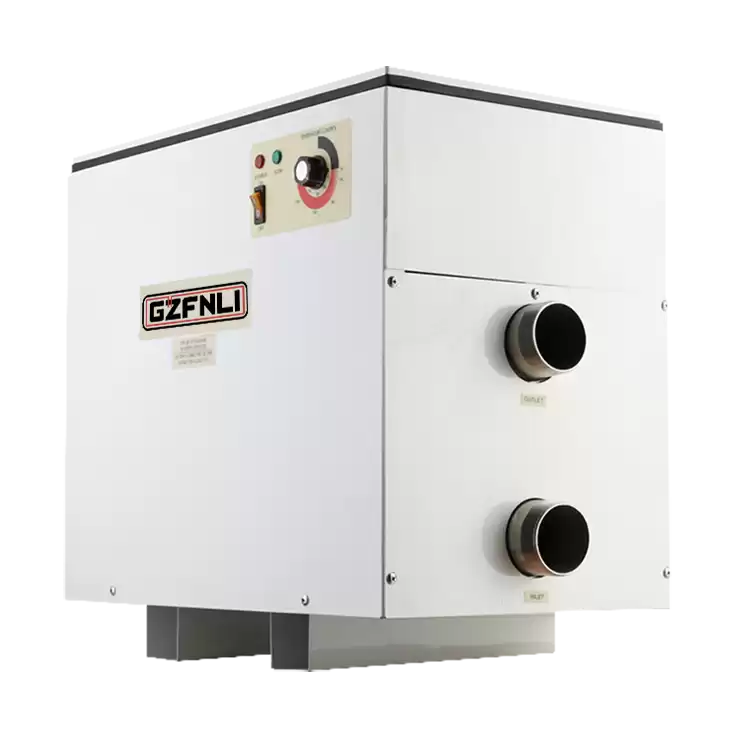

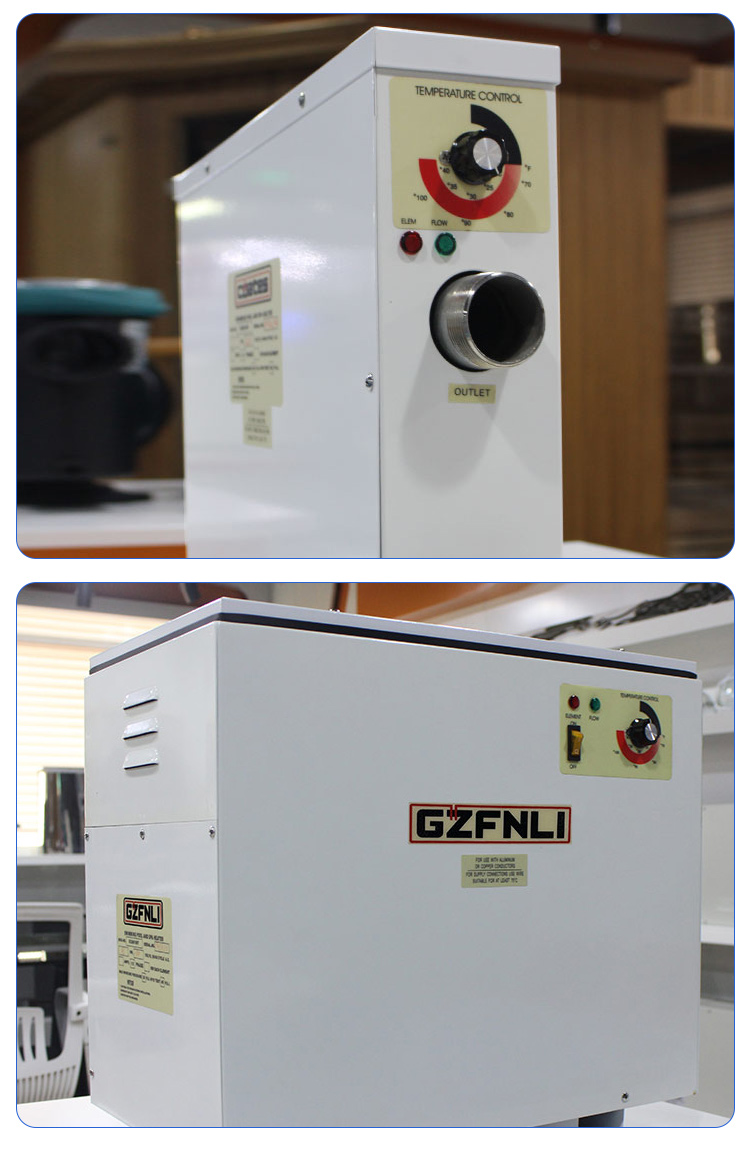

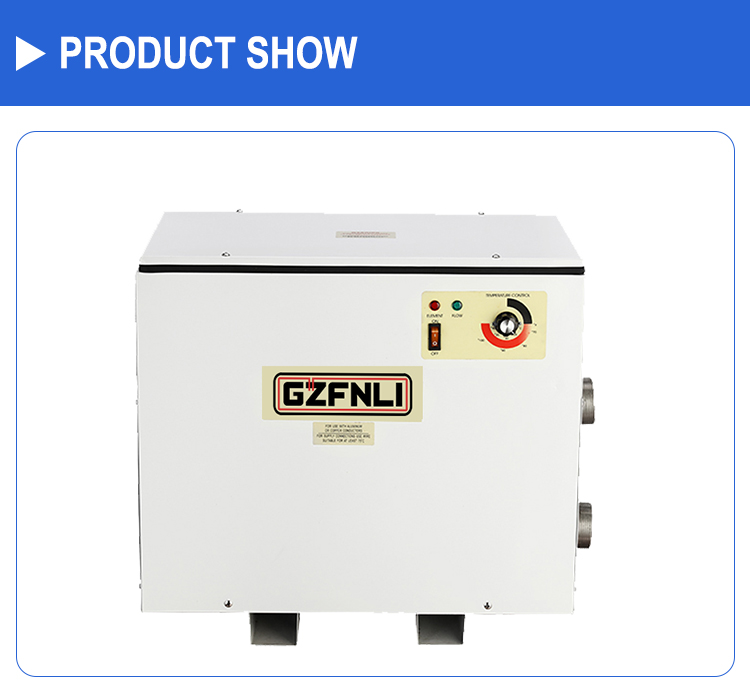

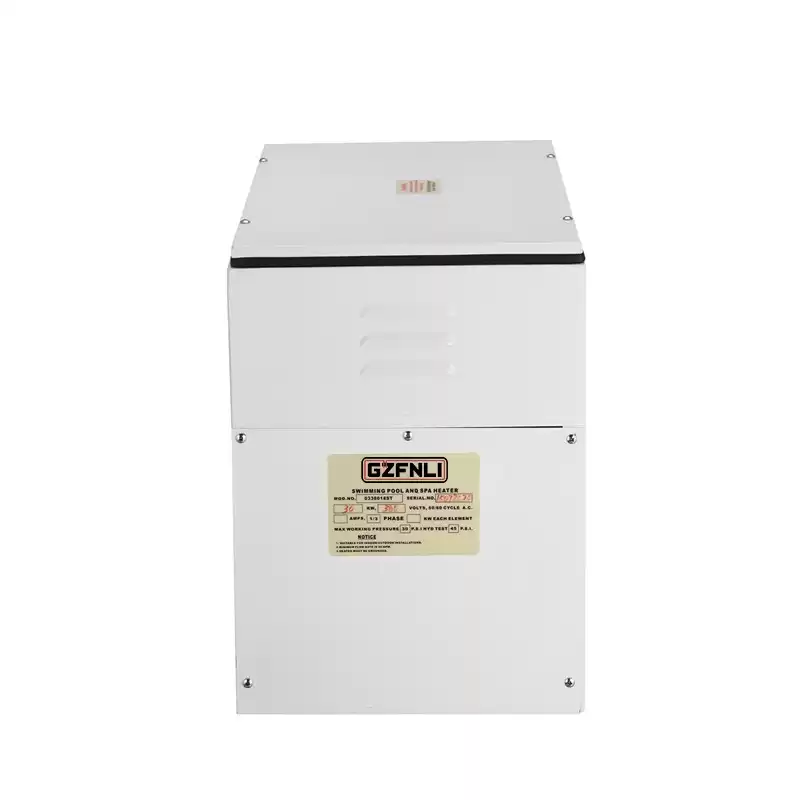

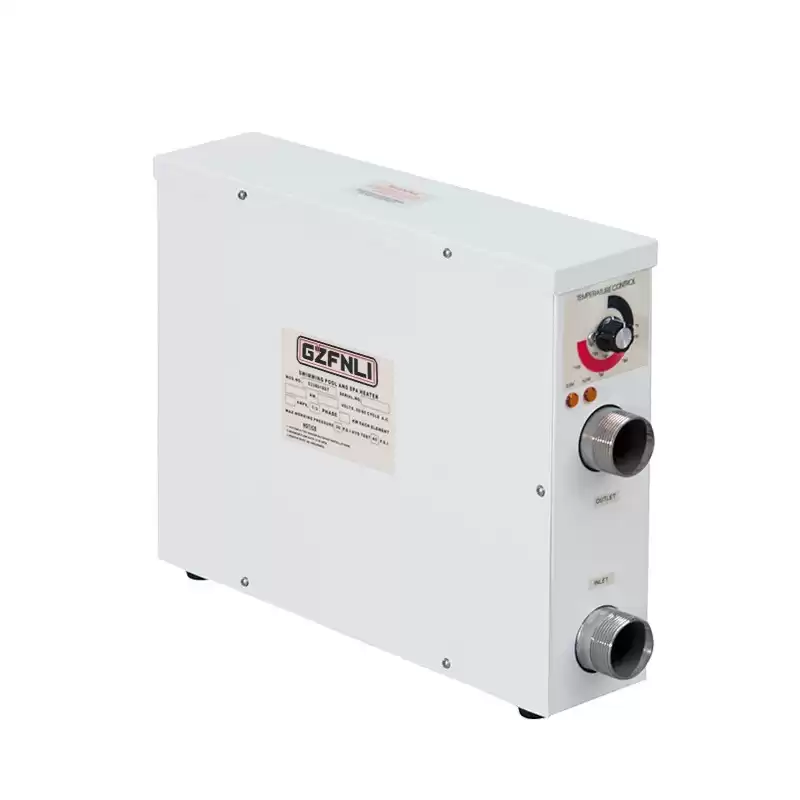

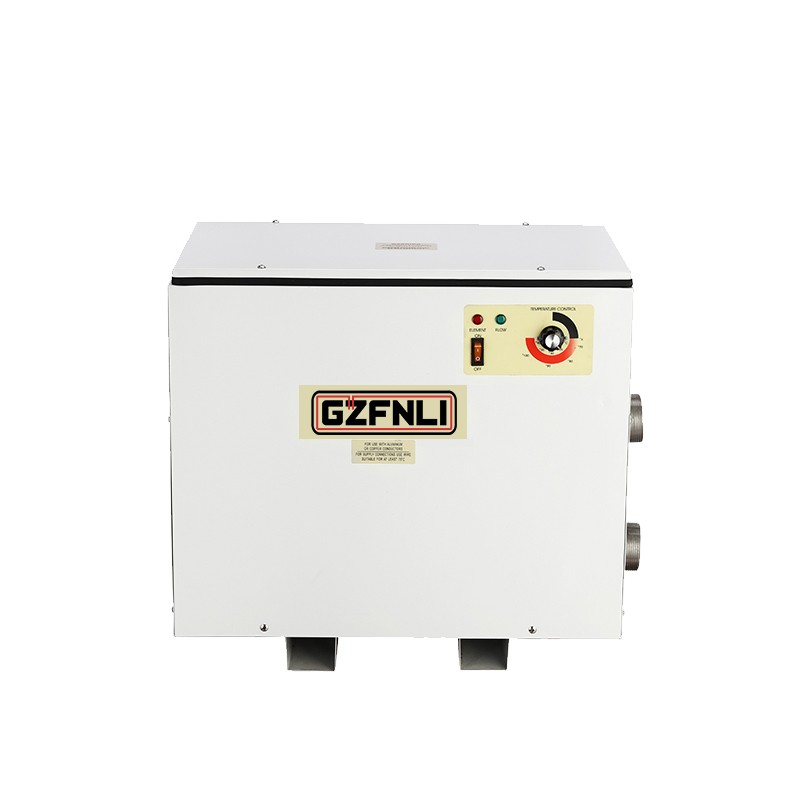

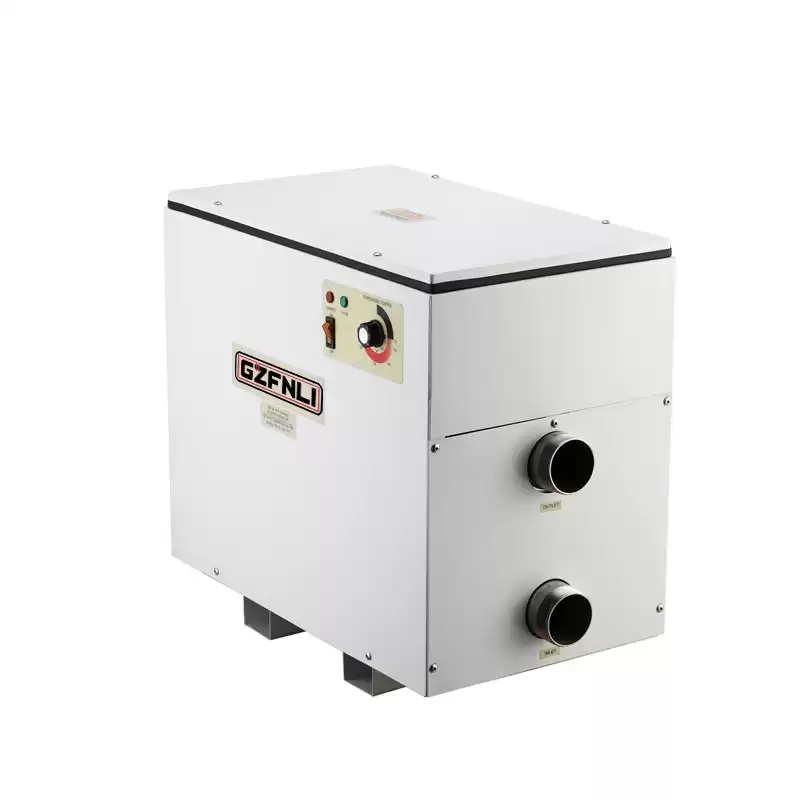

High Quality 18KW 380V Pool Rotary Tape Water Heater
Swimming pool heater is a kind of equipment that consumes electrical energy and absorbs the energy in the air to convert it into several times of electrical energy to heat the water of swimming pool. The water flow through the heater should beat least 15 GPM but should not exceed 70 GPM. Higher flow may danage the heater. Fanlan rotary type water heater is safe and reliable, when the water level is lower than the original setting, the heater system will automatically cut off the power.
Application:
swimming pool
hot spring pool
Massage bathtub
Villa Pool

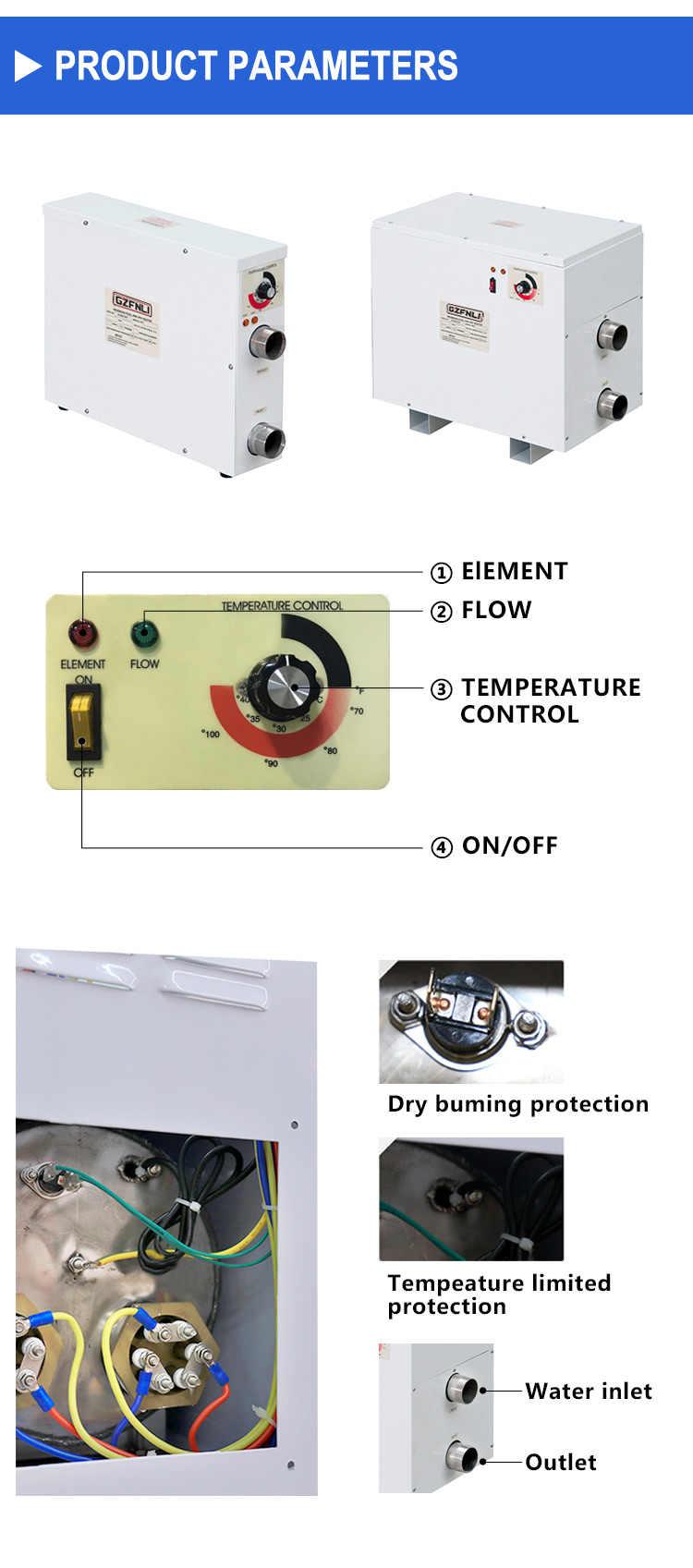

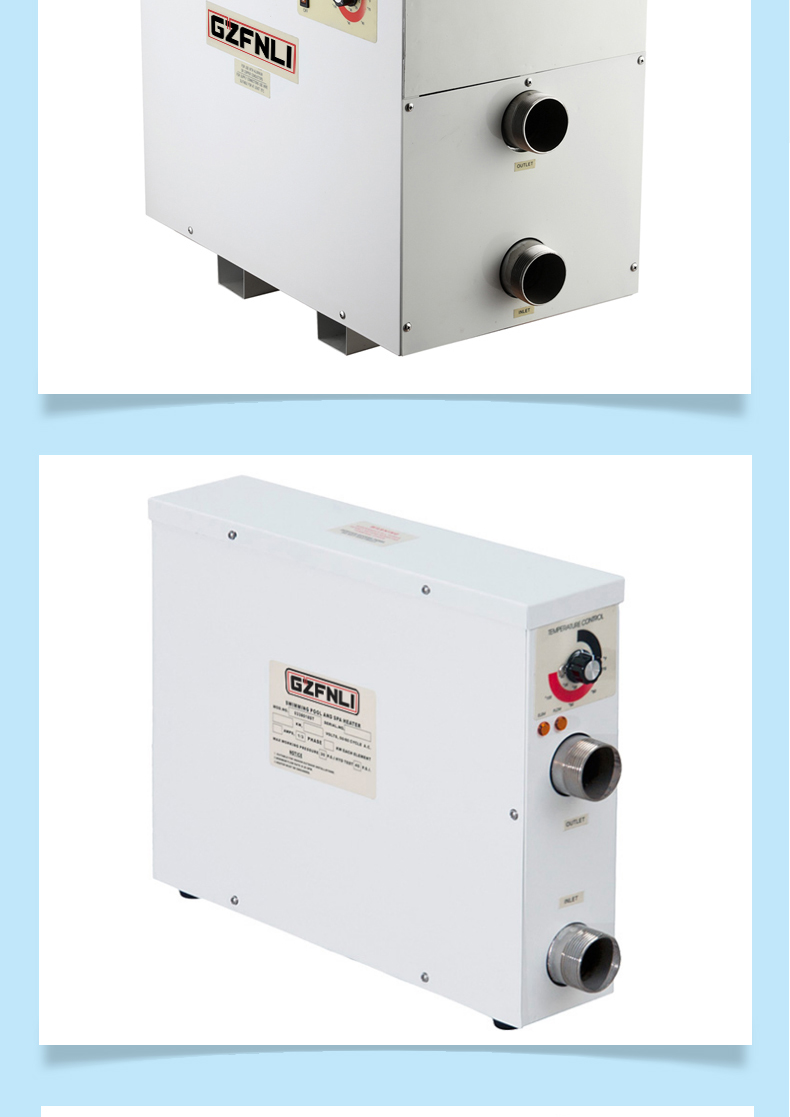

Rotary Water Heater Parameter:
| Item No. |
Voltage(V) |
Power(KW) |
Length(mm) |
Width(mm) |
Height(mm) |
| H-55 |
220 |
5.5 |
490 |
100 |
380 |
| H-55 |
380 |
5.5 |
490 |
100 |
380 |
| H-90 |
220 |
9 |
490 |
100 |
380 |
| H-90 |
380 |
9 |
490 |
100 |
380 |
| H-110 |
220 |
11 |
490 |
100 |
380 |
| H-110 |
380 |
11 |
490 |
100 |
380 |
| H-150 |
220 |
15 |
490 |
100 |
380 |
| H180 |
220 |
18 |
490 |
100 |
380 |
| H-180 |
380 |
18 |
490 |
100 |
380 |
Attention:
The water heater needs to be used with the corresponding size of the pump, if the pump does not match the water heater, the flow is too small, the heating tube dry burn resulting in damage.
1. Operation order: first open the pump, then open the water heater; shutdown is the first off the heater, wait a little while (according to the heater power size, 10 seconds - 1 minute) and then close the pump.
2. Reliable leakage protection equipment must be installed, must be installed and commissioned by the ruling electrician, and must be regularly inspected and maintained every month.
3. One year warranty for the whole machine, except for man-made and wearable parts.
4. Do auxiliary heating with better results, direct heating with more powerful machines.
5.5KW-15KW water heater with pump flow "5 cubic meters / hour"
18KW-36KW water heater with pump flow "10 cubic meters/ hour"
40KW-60KW water heater with pump flow "15 cubic meters/ hour"
