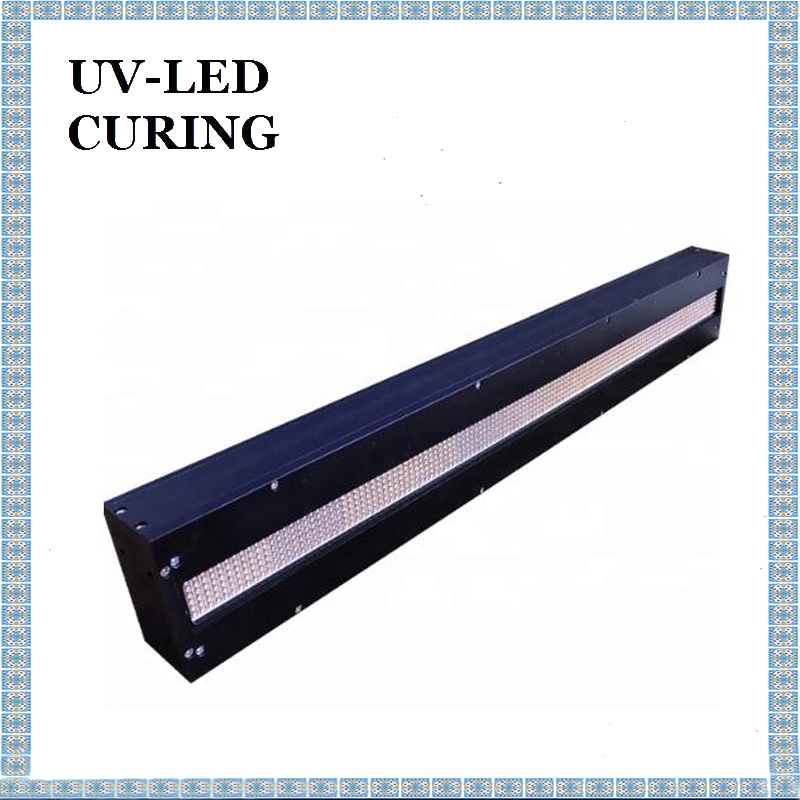

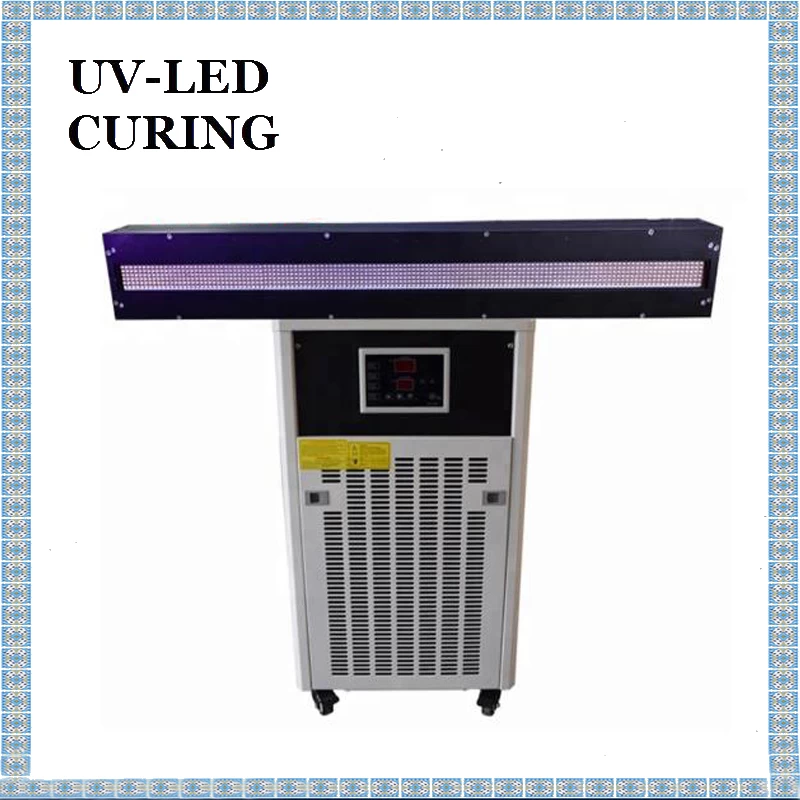

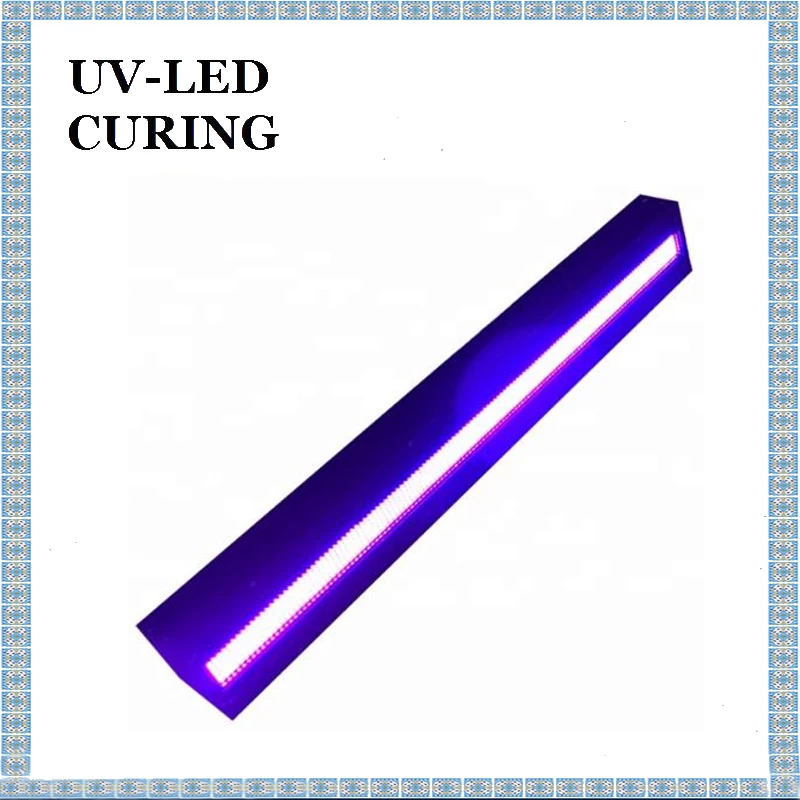

High Quality UV LED Lamp Curing System has 365nm 395nm 405nm, water cooling, 600*30mm emitting window size.
Quick Details of Linear Irradiation UV Exposure Machine for UV Printing :
|
Type
|
UV LED
|
|
Model Number
|
UV-LED CURING-II
|
|
Chip Material
|
AlGaInP
|
|
Emitting Color
|
Blue
|
|
Luminous Intensity
|
Max. 20W/cm^2
|
|
Luminous Flux(lm)
|
30-40lm
|
|
Optical Attenuation(%)
|
10
|
|
Power
|
0.1W
|
|
Power Dissipation
|
2000
|
|
Viewing Angle(°)
|
55
|
|
Color Rendering Index(Ra)
|
100
|
|
Color Temperature
|
Ultraviolet
|
|
Operating Temperature(℃)
|
-10 - 50
|
|
Storage Temperature(℃)
|
-10 - 50
|
|
Place of Origin
|
Guangdong, China (Mainland)
|
|
Brand Name
|
UV-LED CURING
|
|
Certification
|
CE, RoHS
|
|

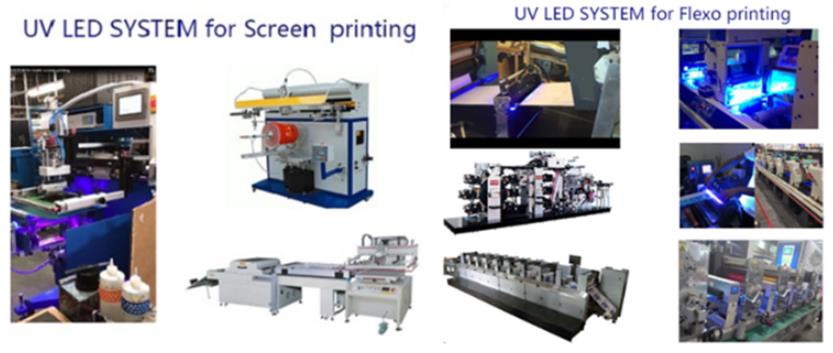

Application
|
Printing
|
|
Wavelength
|
395nm
|
|
Product name
|
200w High Power UV LED
|
|
Item name
|
UV LED Head
|
|
Warranty
|
1 Years
|
|
Main Parts
|
Controller
|
|
Product Type
|
High Power COB UV LED
|
|
Cooling Method
|
Air Cooled
|
|
Wavelength
|
395nm / 405nm
|
Packaging & Delivery of High Quality 395nm UV Lightsource Systems Curing UV Glue :
Packaging Details : Standard export cartons or processed wooden case according customer's request.
Delivery Time : 25 days after payment
Technical Data of Low Temperature 405nm UV Paint Curing Machine Controller :
|
Type
|
XYUV-4II
|
|
Channel
|
One
|
|
The size of controller
|
L304*W284*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and
humidity
|
Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S)
|
|
Setting operation
|
Using the operating switch is set,Power key parameter switch,RS-232
|

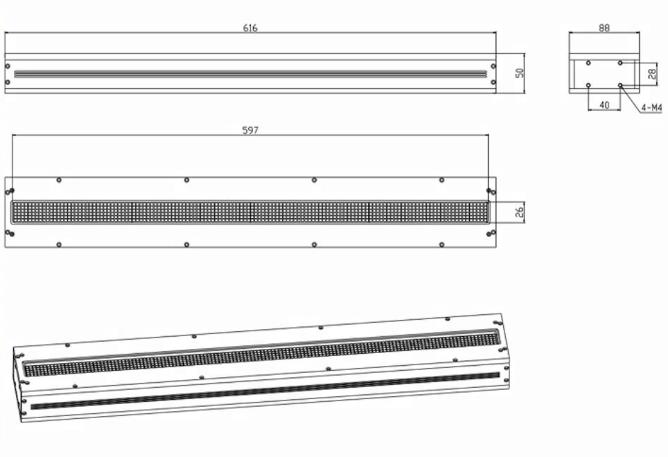

Technical Data of High Performance UV LED Curing Systems for Bonding :
|
product model
|
emitting window size
|
wavelength
|
cooling method
|
peak irradiation
|
irradiation distance
|
|
UV-LED CURING-S792-600x30
|
600X30mm
|
395nm
|
water cooling
|
16000mw/cm²
|
10-30mm
|
