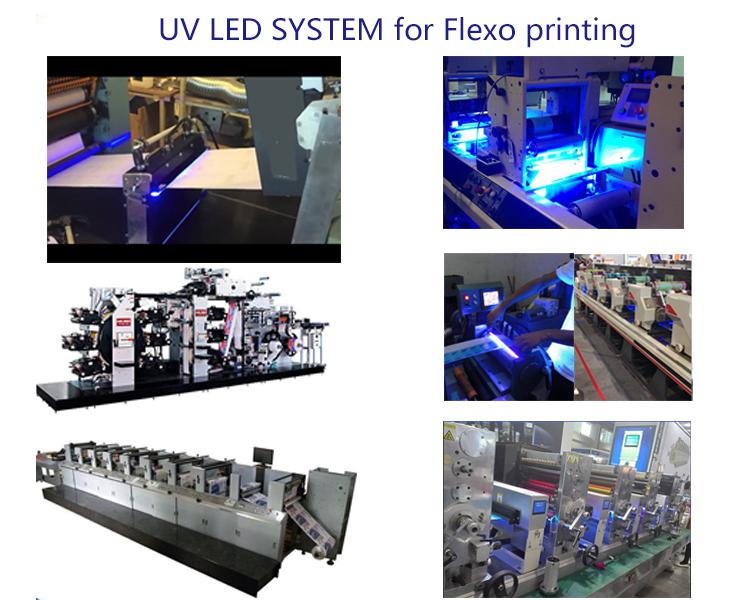

High Power UV LED Curing Equipment for UV Coating can apply for Adhesive and Coating. UV LED for Adhesive, Electronics ( Micro Speakers, LCD,LCM,Lens camera and etc), Medical Industrial, Flexo.Screen printing.offset printing and Narrow web printing etc. UV LED for Coating, Woodproducts, Automotive , Industrial etc, UV LED for Printing.
Quick Details of Industrial Specilized UV LED Curing System for Offset Printing :
|
Type
|
UV Curing machine
|
|
Automatic Grade
|
Semi-Automatic
|
|
Place of Origin
|
Guangdong, China (Mainland)
|
|
Brand Name
|
DSX
|
|
Model Number
|
DSX-264*20*260
|
|
Voltage
|
220V/50Hz
|
|
Power(W)
|
500W-1000w
|
|
Weight
|
12kg
|
|
Certification
|
CE Certificate, RoHS
|
|
Warranty
|
One Year
|
|
After-sales Service Provided
|
Overseas third-party support available
|
|
Application
|
letterpress label printer.flexo printing
|
|
Wavelength
|
395nm 405nm
|
Technical data of Linear Type LED UV Curing Lamp for Flexo Printer :
|
product model
|
eimitting window size
|
wavelength
|
cooling method
|
peak irradiation
|
irradiation distance
|
|
UV-LED CURING-S264-20x260
|
20X260mm
|
395nm
|
water cooling
|
14000mw/cm²
|
5mm
|
Advantages of Ultraviolet UV LED Curing Light for Printer Ink Curing :
Replace the mercury lamp!
Extra-long life: 25000h~30000h
Energy saving: save 80% electrical energy than Mercury lamp
Multiple control modes : Constant current, pedal control,intelligent optical and manual modes
Photoelectric induction, instant on/off, no preheating required.
No mercury, No Ozone, eco-friendly
Cold light source, low temperature
