High Quality Roller Shutter Door Machine

Shutter Door Roll Forming Machine have fly cutter function.



Roller Shutter Door Roll Forming Machine(Taiwan Type)


Click Here To View The Video


shutter door roll forming machine

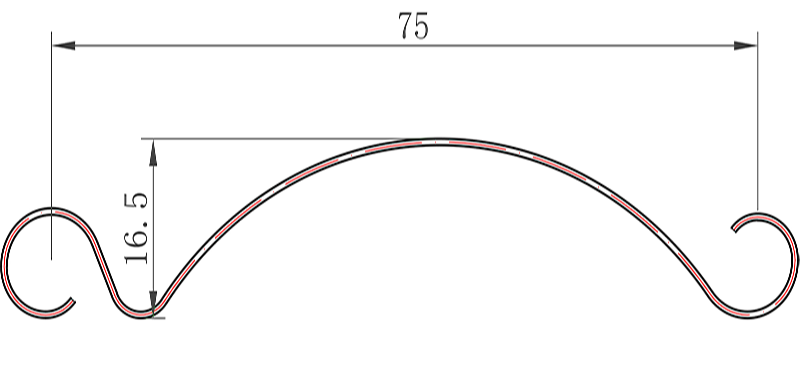

Profile


shutter door roll forming machine


Material

Material Thickness: 0.5-0.8mm;0.8-1.2mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :245-345Mpa

Work Follow

DecoilerFeed Guide DeviceRolling Forming SystemLeveling Device →Hydraulic Not Stop Cutting DeviceExit Rack


roller shutter door roll forming machine

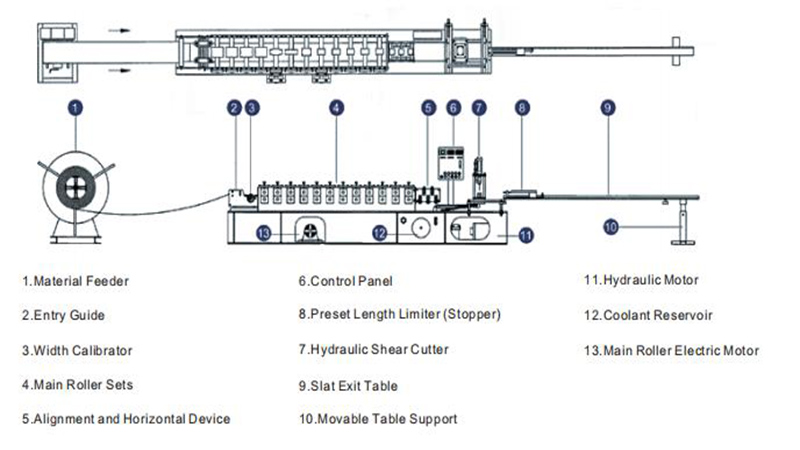

Machine Components

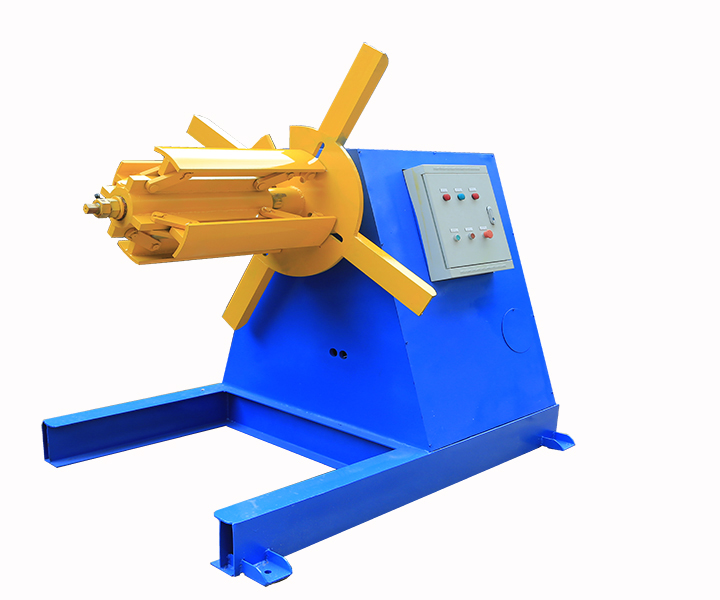

1) 5 Ton Hydraulic Decoiler: one set

Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, motor:3KW, frequency speed control
Oil pump motor:3KW
Add automatic feeding power and self-stop device





2) Feed Guide Device

A left and right guiding device at the main entrance of the machine. During work,Raw materials on both sides of the plate the enter into the machine by the left and right guiding device,make the raw materials and roll forming system to maintain the correct position. The guiding position can be adjusted by the manual screw mechanism,and the left and right can be adjusted independently.

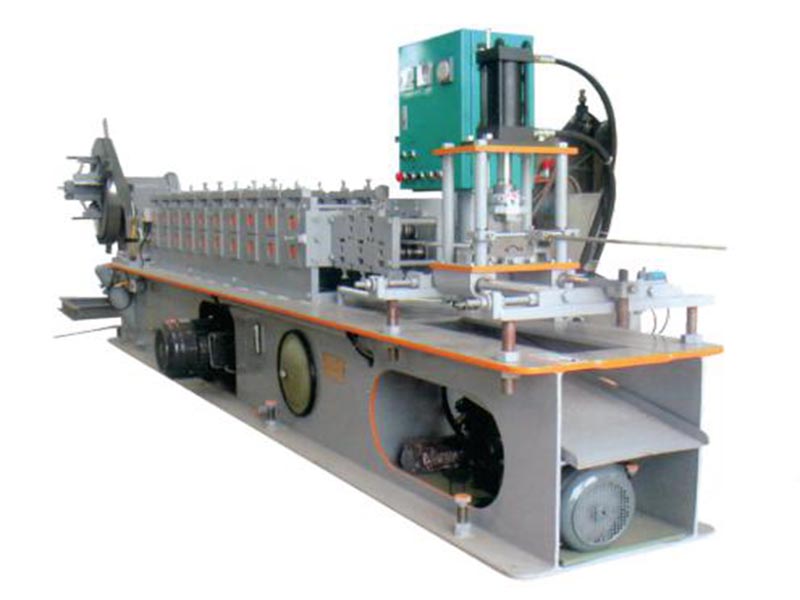

3) Main Machine

body frame made from H600 type steel by welding
Side wall thickness: Q235 t20mm
Rollers manufactured from GCr15(=EN31 Steel),CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф60mm,precision machined
Gear/Sprocket driving,about 14-step to form
Main Motor(Polaroid brand)=7.5KW,Frequency speed control
Speed redcucer motor:K series
Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)
Chain size: one inch with 18 teeth
All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Real forming speed 0-20m/min(Not include cutting time and punching time


4)Leveling Device&Post Not Stop Hydraulic Cutting Device(Include Punching)

Leveling device will make the product more beautiful
Punching and hydraulic cutting device is not stop produce to inprove the product speed
The device can press LOGO on the web
Hydraulic motor: 4KW ;Cutting pressure: 0-16Mpa
Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station


5) PLC Control System

Control The Quantity And Cutting Length Automatically

Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


roller shutter door roll forming machine



6)Exit Rack

Un-powered, Four units,with rollers on it for easy movement

4 units * 3m= 12m




After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.


Packing Style



INQUIRY

Contact us for all information about the product


click here to leave a message

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
