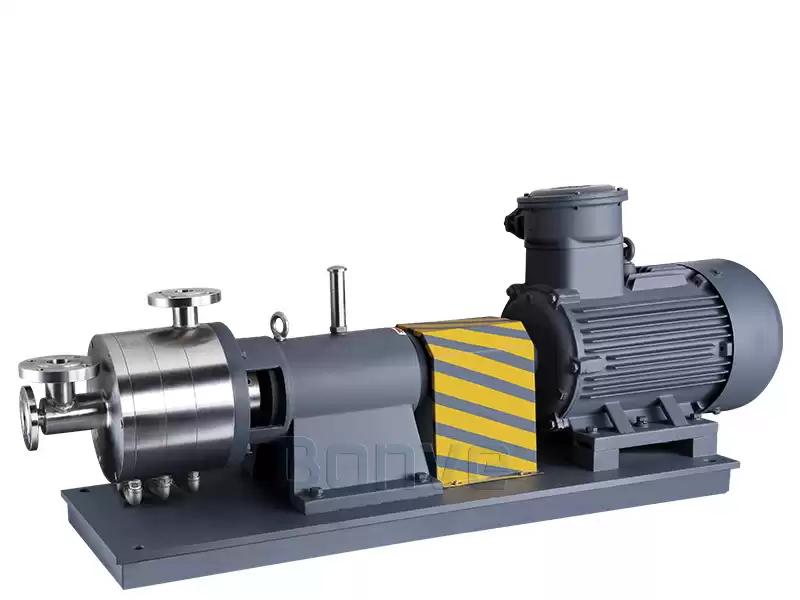

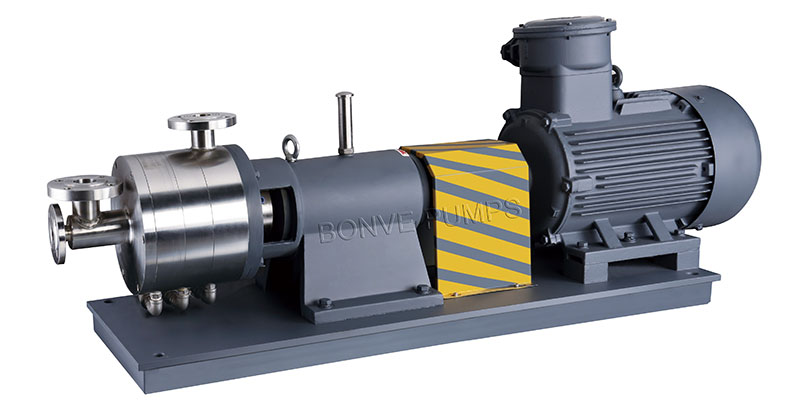

High shear homogenizing mixing pump for detergents

Bonve homogenizing emulsifying pump, fully mixing and dispersing the slurry before powder spraying, effectively solves the problem of powder spraying and material blocking, greatly improves product quality, and creates greater value for customers.





The washing powder slurry contains various media such as surfactants, phosphates, sodium sulfate, fluorescers, enzymes, etc., which are made into powder after mixing and powder spraying. The traditional process is to use a high-pressure pump to hit the powder spraying tower. During the powder spraying process, nozzle blockage often occurs, resulting in uneven color of the powder and inconsistent quality of different batches of products. Bonve homogenizing emulsifying pump, fully mixing and dispersing the slurry before powder spraying, effectively solves the problem of powder spraying and material blocking, greatly improves product quality, and creates greater value for customers.


The main ingredients of laundry detergent include surfactants, thickeners, preservatives, flavors, pigments, water, etc. In the traditional production process, the preservatives are first added to the water and stirred, and then other raw materials are gradually added, mixed by stirring, and then added to thicken The whole process takes a long time and is low in efficiency. Bonve homogenizing emulsifying pump can not only quickly realize the mixing and homogenization of various materials, but also effectively prevent foaming, save time and cost, and effectively increase production capacity.



WORKING PRINCIPLE



Inline homogenizer


The main parts are stators and rotors. At centrifugal and fluid forces created by rapid turning of the rotors, the stators exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.



PRODUCT lINE: FHM1 AND FHM3 SERIES

Bonve homogenizing mixers pump are mainly devided into 2 series based on different numbers of rotor and stator, working types. (The pump with 2-stage rotor and stage can be made too)


FHM1 series with single stage rotor and stator

FHM1 series is equipped with one set multi-layer stator and rotor. Required to be used in the cyclic processing of medium and small batch production. For short distance transmission, homogeneous and emulsion.


FHM3 series with three stage rotors and stators

FHM3 series is an extension of the FHM1 series. The working chamber is composed of three-stage rotor and stator. For applications that require greater and quicker homogenizing and emulsifying, FHM3 is used. It can be used in the cyclic processing of medium and large-scale production.



High shear homogenizers



MAIN TECHNICAL PARAMETERS: FHM1

Model

Electrical Power

(kW)

Rotation Speed

(r/min)

Capacity

(m3/h)

Discharge pressure

(Mpa)

Diameter of

inlet/outlet

FHM1/165 7.5/11 2900 0-10 0.15 DN50/40
FHM1/185
11/15 2900
0-15 0.15 DN65/50
FHM1/200
15/18.5 2900
0-20 0.15 DN80/65
FHM1/220
22/30 2900
0-30 0.15 DN80/65
FHM1/240
30/37 2900
0-50 0.15 DN100/80
FHM1/260
37/45 2900
0-60 0.15 DN125/100
FHM1/300
45/75 2900
0-80 0.15 DN125/100


MAIN TECHNICAL PARAMETERS: FHM3

Model

Electrical Power

(kW)

Rotation Speed

(r/min)

Capacity

(m3/h)

Discharge pressure

(Mpa)

Diameter of

inlet/outlet

FHM3/165 18.5 2900 0-10 0.30 DN50/40
FHM3/185
30 2900
0-20 0.30 DN65/50
FHM3/200
45 2900
0-30 0.30 DN80/65
FHM3/220
55 2900
0-40 0.30 DN80/65
FHM3/240
90 2900
0-60 0.30 DN100/80
FHM3/260
132 2900
0-100 0.30 DN125/100
FHM3/300
160 1400
0-120 0.30 DN150/125


Remarks:

1. Abovedates are tested by water. For product with poor liquidity or require a higher discharge pressure, Bonve lobe pump is advised to be installed before the homogenizer for transferring.

2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.

3. Motor matched is Siemens, ABB or equivalent brand. Normal type with 3ph/380V/50Hz as standard.

4. MOC: SS316 as standard, SS304, 316L and others as optional.  150°C (302°F) anti-heat seal.

5. Bonve reserves the right to change specifications without prior notification.



APPLICATIONS


high speed homogenizer

Refined chemistry: Pigment, dyestuff, plastic auxiliaries, textile auxiliaries, adhesives, resin emulsion, hot melt adhesive, sealing compound, glue, pulp, finishing agent, surface active agent, carbon black disperse, adhesive-proof agent, mold release agent, defoaming agent, fluorine cleaning agent, polishing agent, leather auxiliaries, pigment paste, wax emulsion, bactericide, coagulant, etc.
Petrochemistry: Lubricant, heavy oil emulsion, diesel oil emulsion, modified asphalt, catalyzer, wax emulsion etc.
Biology & Pharmaceuticals: Injection, antibiotic, medical emulsion, medical paste, health products, mini-capsule emulsion, cell breaker, etc.
Paint & ink: Printing ink, paint, emulsion paint, building coating, nanometer coating, photocureable coating, coating auxiliaries, carbon black disperse, print ink, glaze, bentonite, etc.
Farm chemicals: Pesticide, herbicide, medicinal butter, fertilizer, pesticide adjuvant, etc.
Nanometer materials: Disperse and dis-aggregation for nanometer medium, etc.
Food stuff industry: Juice, jam, ice-cream, milk products, food addictive, tea drink, chocolate, bean milk, essence, milk, etc.
Consumer chemistry: Fluid detergent, skim cream, lip paste, face foam, silicon lio emulsion, household essence, skin care, cosmetics, etc.

Paper making: Pulp, filling, fry strength agent, wet strength agent, sizing agent, filtering agent, anti-foaming agent spreading, water treatment chemicals, etc.



WORKING PROCESS

For various processes, different equipment is used to match and optimize the combination, so that the systemachieves the best working effect. The common process flow diagram is as follows:

high shear mixer



SELECTION GUIDELINE

Your industry/application
Processed medium’s name
Medium’s feature  Sanitary  (   )  Corrosive  (   ) Poisonous (   )
Medium’s proportion

 Liquid % ____    Density____   Viscosity____ PH value____

 Solid % ____     Solid size ___

Processing requirement

 Mixing dissolving   (   )      Dispersed suspension     (   )

 Emulsification         (   )      Homogeneity                  (   )

 Reaction                 (   )     Powder liquid mixing        (   )

Working type

 Continuous circulation work  (   )

 Batch type                              (   )

Working temperature

Particle size

 Before processing ____

 After processing   _____

Handling capacity required

Delivery head/pressure required

Vessel's dimension

Existing pipe size and connection type

The existing process equipment  and the existing problems
