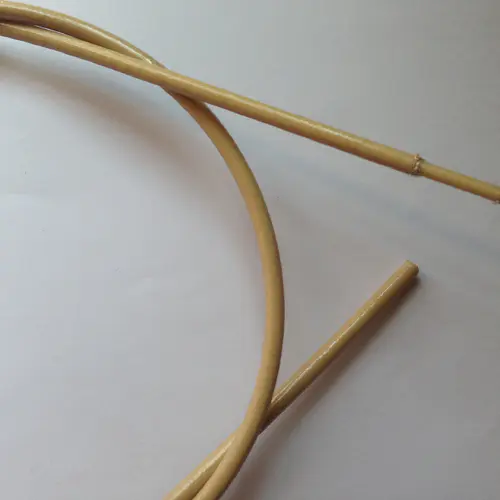

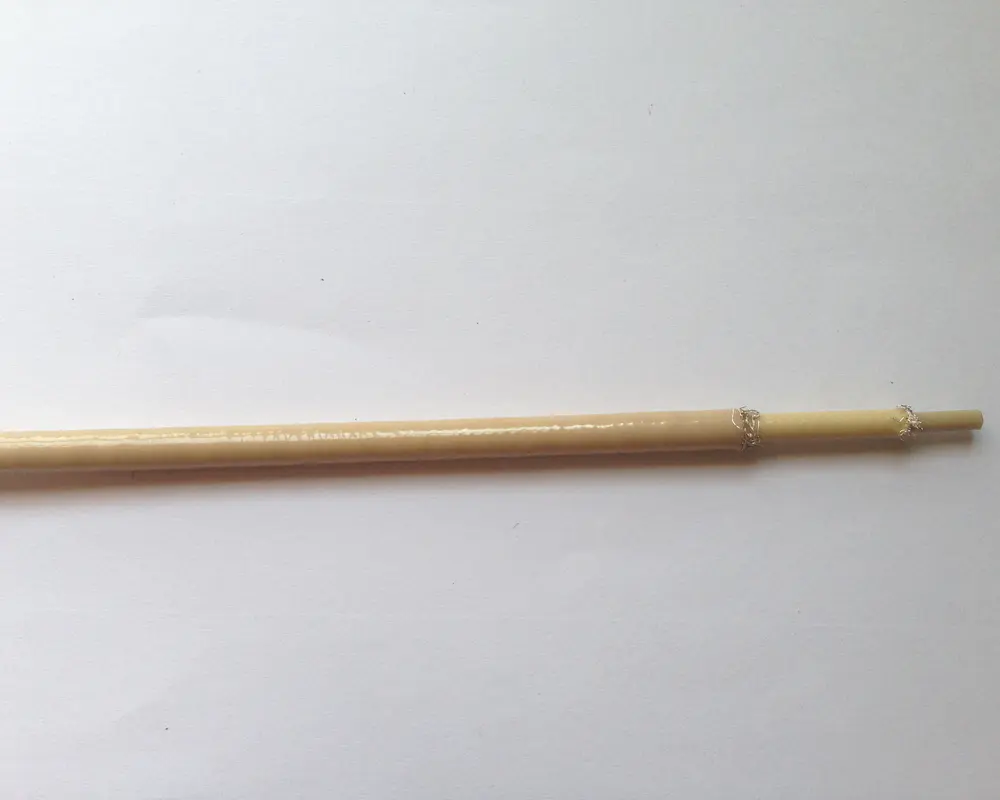

CITCABLE: Radiation resistant PEEK High temperature superscreened coaxial cable
PEEK insulated wires with Silver-plated or Nickel-plated conductors
Key Features
Halogen free and low toxicity
Excellent radiation resistance
PEEK cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion
Construction Conductor Tin Plated Copper (TPC) Silver Plated Copper (SPC) Silver Plated Copper Covered Steel (SCCS) Copper Covered Steel (CCS)
Dielectric PEEK Frequency range Up to 200 MHz
Screen Multi-layered composite braids and foils
Sheath PEEK
Vp 56%
Colour code Natural Sheath Natura
Key Properties
• High continuous operating temperature 500°F (260°C)
• Outstanding abrasion resistance
• Excellent dielectric strength
• Exceptional chemical resistance
• Protects against corrosion Technical Notes
• Can be spliced using PEEK Annealed, solid, round bare copper wire and others
