High Temperature Resistant Transformer Bobbin EFD25

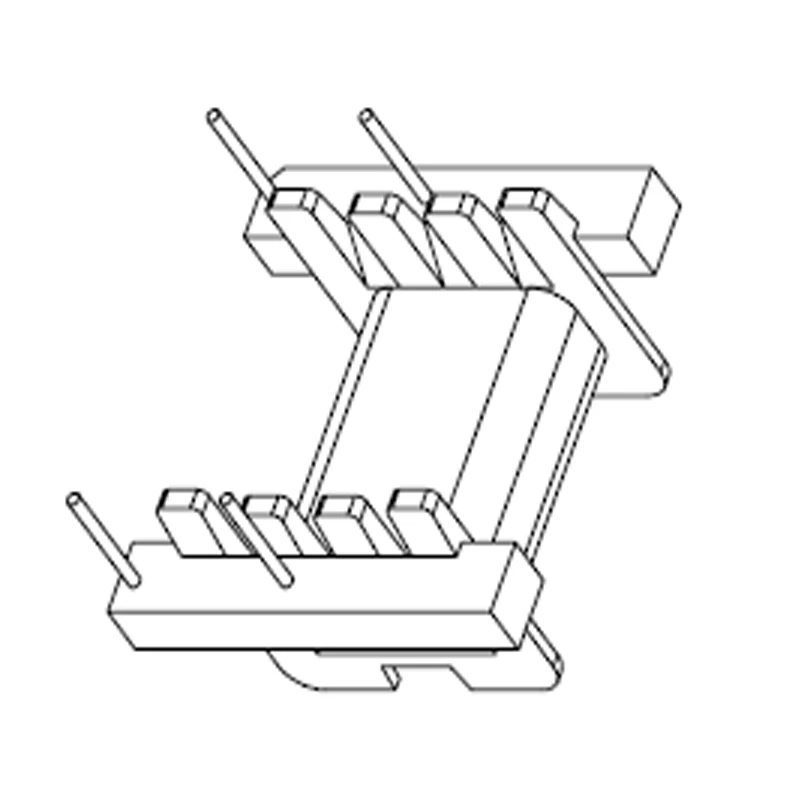

High quality transformer bobbin EFD25. 5+5 pins EFD25 horizontal bobbin. Bobbin Size=26.0mmX25.1mmX16.0mm. Parallel distance=22.8mm. Pin pitch=5mm. PC40 material ferrite cores. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.



ISO9001 factory, we skilled at producing and selling series bobbins, such as EE/EI,EFD,PEE,EDR,EPC,EF,UU,ETPQ,RM,EER/EC,ETD bobbins, we can supply matched soft magnetic cores. Samples can be sent in 5 days. If you are interested in our parts, welcome to contact us.


Quick Details

Part No: MCT-EFD2524

Brand Name: MCT

Material: Phenolic PM9820

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: High Temperature Resistant Transformer Bobbin EFD25

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

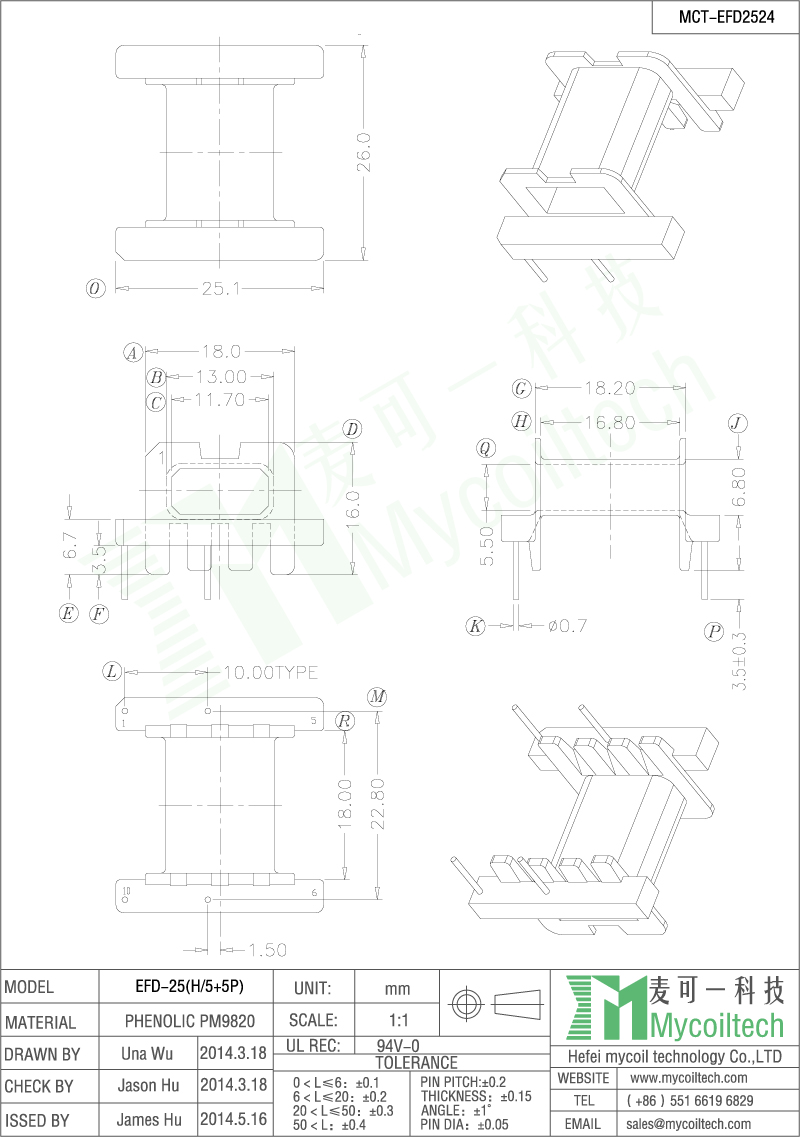

Product Specification

Lead free bobbins EFD25
