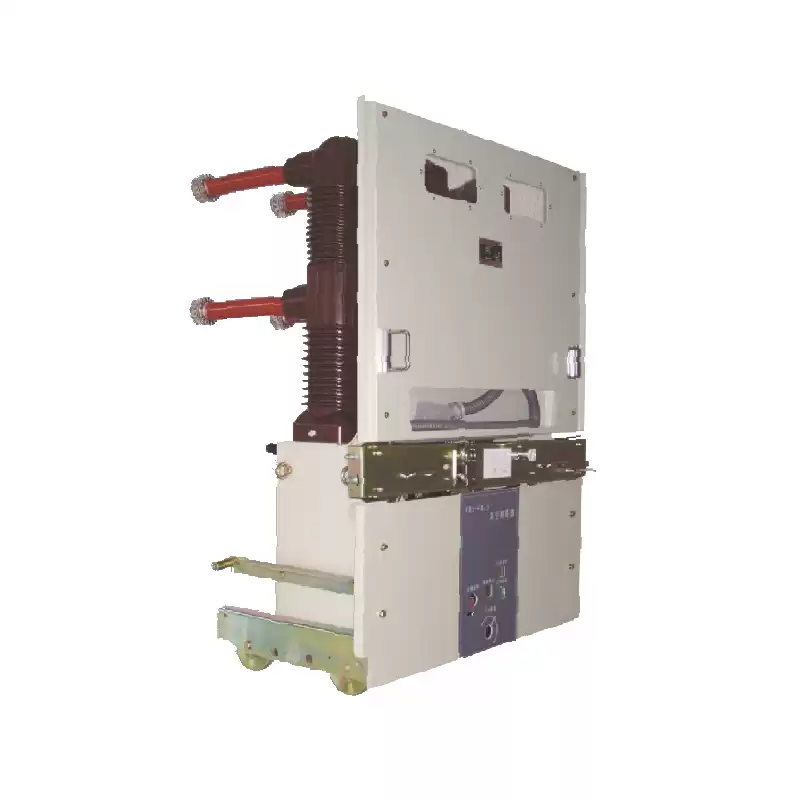

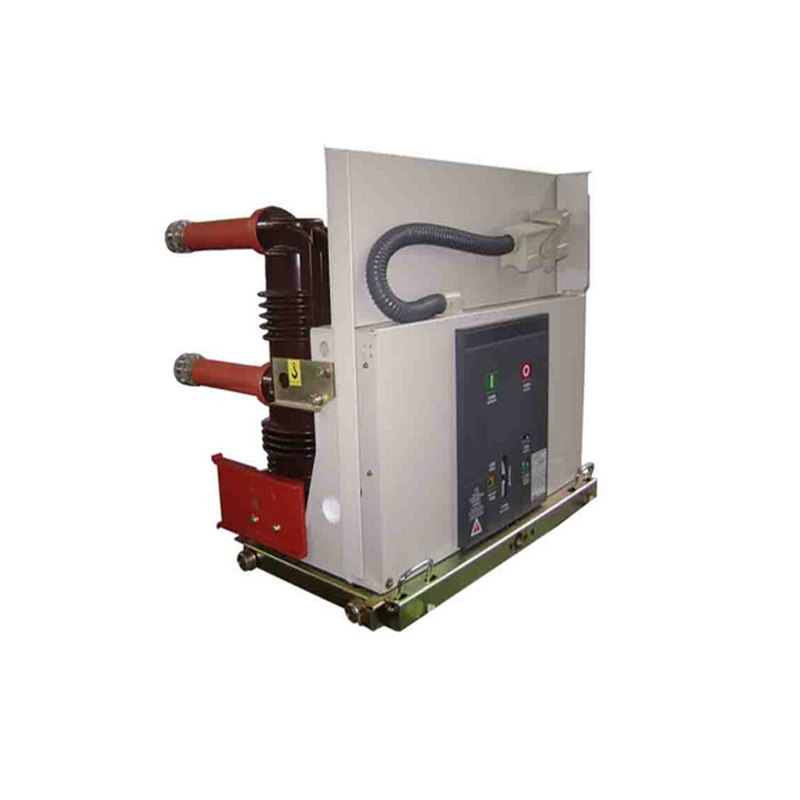

More than 20 years of operation has proved that indoor vacuum circuit breaker VB5 type and its series of products have quite superior advancement and reliability. VB5 vacuum circuit breaker is suitable for indoor switch system with air insulation. As long as it is within the normal operating conditions and the technical parameters of the circuit breaker, the VB5 vacuum circuit breaker can meet various operations of the power grid under normal or accident conditions, including closing and breaking short-circuit currents.
VB5 vacuum circuit breaker is suitable for indoor switching systems with air as insulation. type vacuum circuit breaker can satisfy all kinds of operation of power grid in normal or accident state, including closing and opening short circuit current, as long as it is within the normal service conditions and the technical parameters of the circuit breaker.
VB5 vacuum circuit breaker has excellent performance in the case of frequent operation and short circuit current.Fully meet the requirements of automatic reclosing and has high operational reliability and service life.
1、Main electrical performance parameters：
|
NO.
|
Item
|
Unit
|
Data
|
|
1
|
Rated voltage
|
kV
|
40.5
|
|
2
|
Rated insulation level
|
1min
Power frequency withstand voltage (effective value)
|
kV
|
95
|
|
Lightning impact withstand voltage (peak)
|
kV
|
185
|
|
3
|
Rated frequency
|
Hz
|
50/60
|
|
4
|
Rated current
|
A
|
630
|
1250
|
2500
|
|
5
|
Rated short circuit breaking current
|
kA
|
25、31.5
|
|
6
|
Rated short-time withstand current( 4s)
|
kA
|
25、31.5
|
|
7
|
Rated peak withstand current
|
kA
|
63、80
|
|
8
|
Rated short-circuit making current
|
kA
|
63、80
|
|
9
|
Rated breaking current of capacitor bank
|
A
|
630（single）
|
|
10
|
Rated operation order
|
|
O - 0.3s - CO - 180s - CO
|
|
11
|
Breaking times under rated short-circuit
current
|
times
|
50
|
|
12
|
Secondary circuit (1 min) power frequency
withstand voltage
|
V
|
2000
|
|
13
|
Main circuit resistance(without plum blossom
contact)
|
μΩ
|
≤55（630A）≤50（1250A）≤45（2500A）
|
2、Mechanical characteristic parameter：
|
NO.
|
Item
|
Unit
|
Data
|
|
1
|
Distance
between contacts
|
mm
|
20
±2
|
|
2
|
Contact
stroke
|
mm
|
7.5±1.5
|
|
3
|
Moving and static contactor allows accumulated
wear thickness
|
mm
|
3
|
|
4
|
Average closing speed(8mm contactor close）
|
m/s
|
1.0-1.6
|
|
5
|
Average
opening speed(0~8mm stroke）
|
m/s
|
1.4-2.0
|
|
6
|
Opening
time
|
ms
|
20-65
|
|
7
|
Closing
time
|
ms
|
20-75
|
|
8
|
Three
- phase contactor opening and closing simultaneity
|
ms
|
≤2
|
|
9
|
Three
- phase contactor opening asynchronous
|
ms
|
≤2
|
|
10
|
Contactor
closing bounce time
|
ms
|
≤5
|
|
11
|
Contactor
opening bounce range
|
mm
|
≤2
|
|
12
|
Buffer
stroke
|
mm
|
13
± 1
|
|
13
|
Mechanical
life
|
times
|
30000
|
1. Altitude: ≤1000m.
2. Surrounding air temperature: upper
limit +40 ° C, lower limit -25 ° C (alpine region) and -1 ° C (general region).
3. Relative humidity of surrounding air:
when the maximum temperature is +40℃,
it is not more than 50%. When the temperature is low, it is allowed to have a
large relative humidity. Due to the change of temperature, it may occasionally
has condensation effect.
4. Outdoor wind speed shall not exceed
34m/s.
5. The slope of the ground shall not
exceed 3°.
6. The horizontal acceleration of the
earthquake shall not more than 0.4m/s, and the vertical acceleration shall not morn
than 0.2m/s;
7. The installation site shall be free
from fire, explosion, serious pollution, chemical corrosion and violent
vibration.
Note: if the actual conditions of use
cannot be met, please negotiation with the manufacturer.
