ADVANTAGES
Production in two or three strokes
Reducing of marks through spring loaded hold-down-device
Active components are hardened
High repeatability through integrated backgauge
Functional test and adjustment through test bends - with your sample sheets
SUITABLE FOR
Material thickness up to 4,0 mm

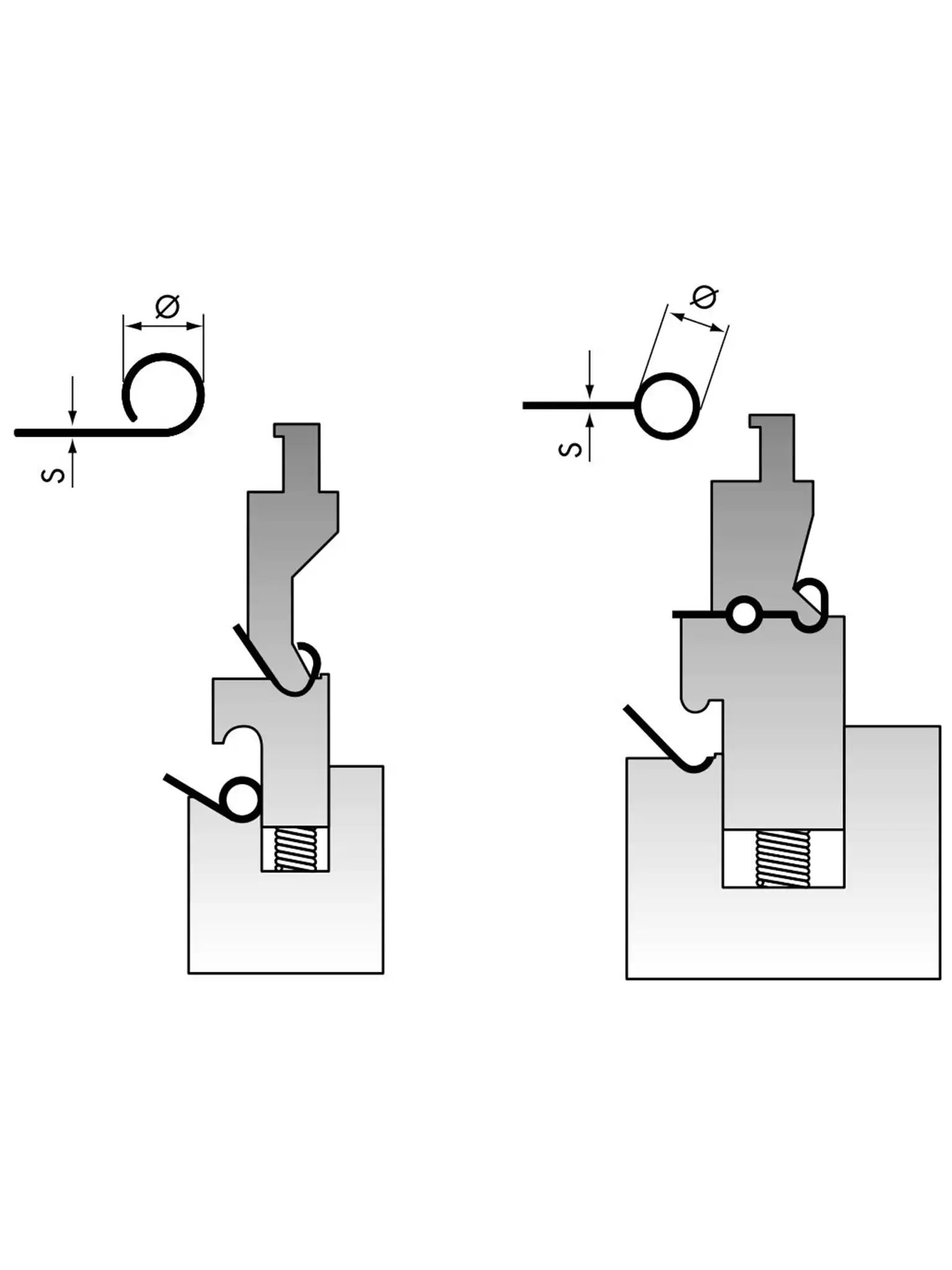

minimum inside Ø:
2,5 mm x material thickness for steel and aluminium
3,0 mm x material thickness for stainless steel
Other shapes and layouts are manufactured individually according to your specifications
INFORMATION
|
JM - Hinge Tools
|
|
|
Tooling system
|
JM - System Hinge Tools
|
|
Angle
|
85°、88°、90°
|
|
Radius
|
0.2mm、0.6mm、0.8 mm、1.5mm、3mm
|
|
Effective Height
|
66.5 mm
|
|
Load
|
1000 kN/m max.
|
|
Material
|
C45、42CrMo, 650 - 800 N/mm²
|
|
Length and weight
|
835mm/11.1kg、415mm/5.5kg
|
Quality And Precision
▶Optimum materials
▶42 CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
TOOL LENGTHS
PUNCHES/TOP-TOOLS

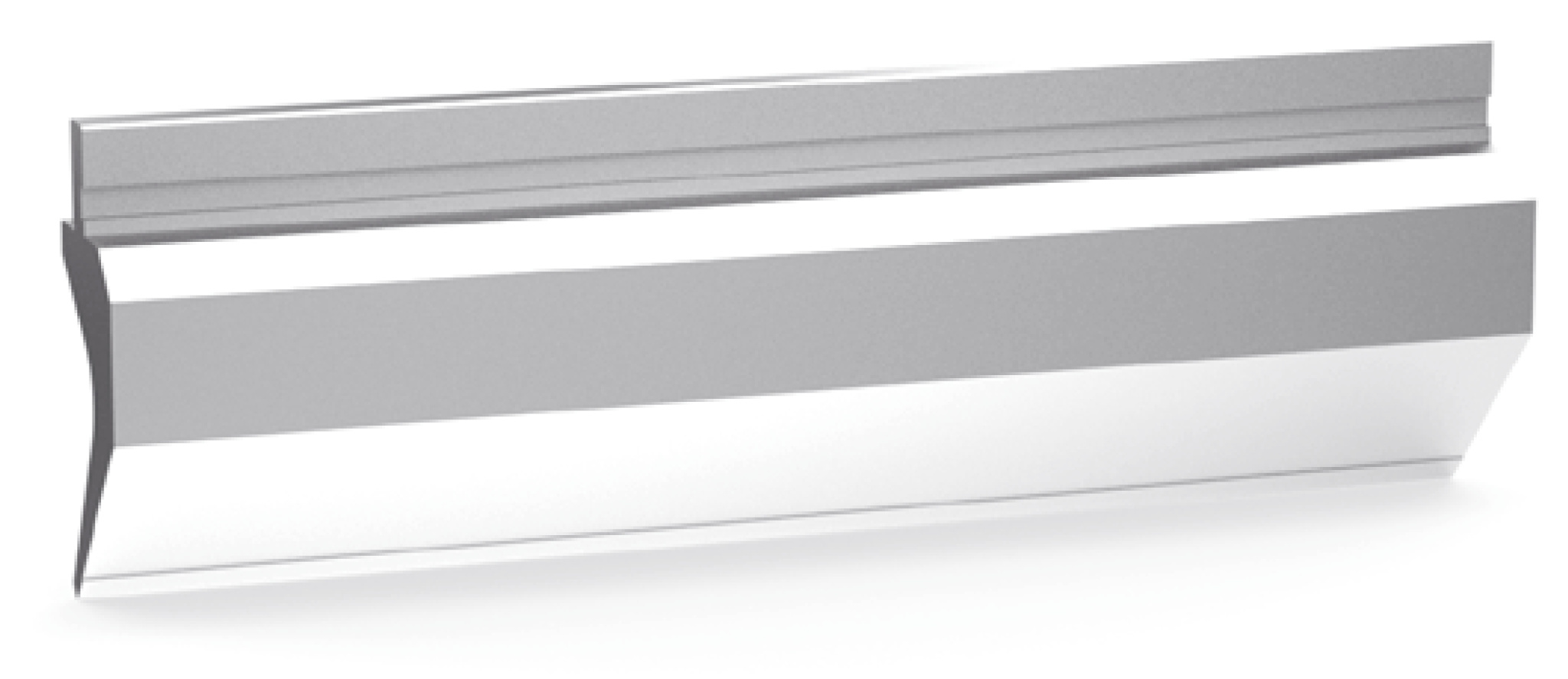

835 mm

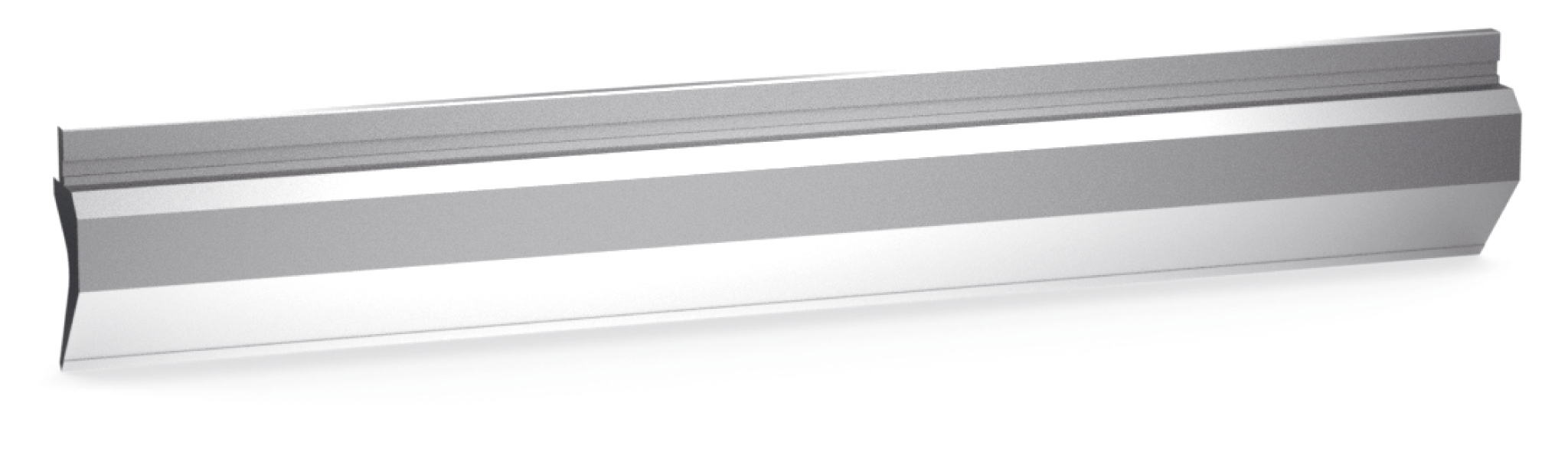

415 mm

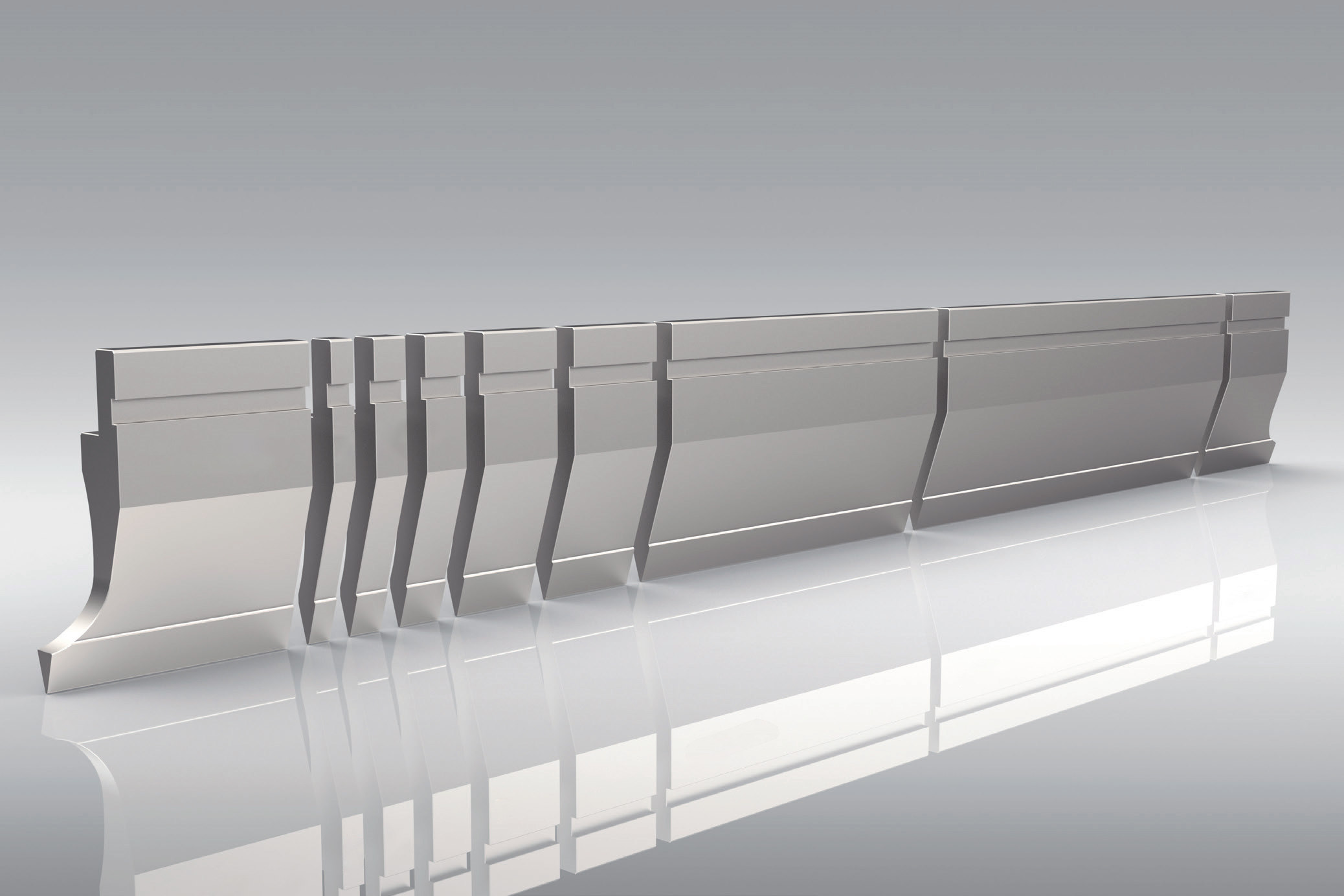

835 mm sectionalized
▶ 9 Segments with horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 10, 15, 20, 40, 50, 200, 300, 100 (right horn) = 835mm (set)
■ In addition to the above standard length, if you need to customize a special length, please explain.
