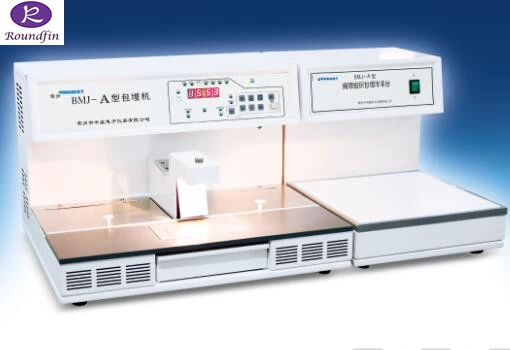

Histology Products Tissue embedding working station

with cold plate with capacity 3.2L

Model Number: RD-95

Feature:

---The machine adopts automatic control procedures, can be preset automatic startup of 7 days.

--The machine is composed of two modles,main console and cold plate. It is independent design,can put the position left to-right or right to -left

---The largre working surface allows user processing 250 tissues at the same time.

---With manual operation and pedal switch for the operator to choose

---Five independent temperature control system, including paraffin cylinder, flowing paraffin mouth.

---The working surface, save cylinder and tweezers  storage cylinder temperature from ambient to 99 degrees Celsius temperature control within the scope of arbitrary adjustable

Perfect Design:

---Two big save cylinder and tweezers  storage cylinder

---LED light for embedding space

---With paraffin recycle tank

---Paraffin flowing speed can be adjust by user

--Easy to operate and clean

Technical Specification:

-- Model: RD-95

-- Working temperature: From ambient to 90 centigrade

--Cold plate refrigeration temperature:From ambient to -20 centigrade

--Wax cylinder volume: 3.2L

--Cassettes/molds tray: 0.9L

--Nominal supply voltage:220V/50HZ or 110V/60HZ

--Maximum power draw: 1000VA

--Main Console Dimensions: 560 x 500 x 400mm

--Cold Plate Dimensions:340 x 500 x 400mm

--Weight: 40kgs
