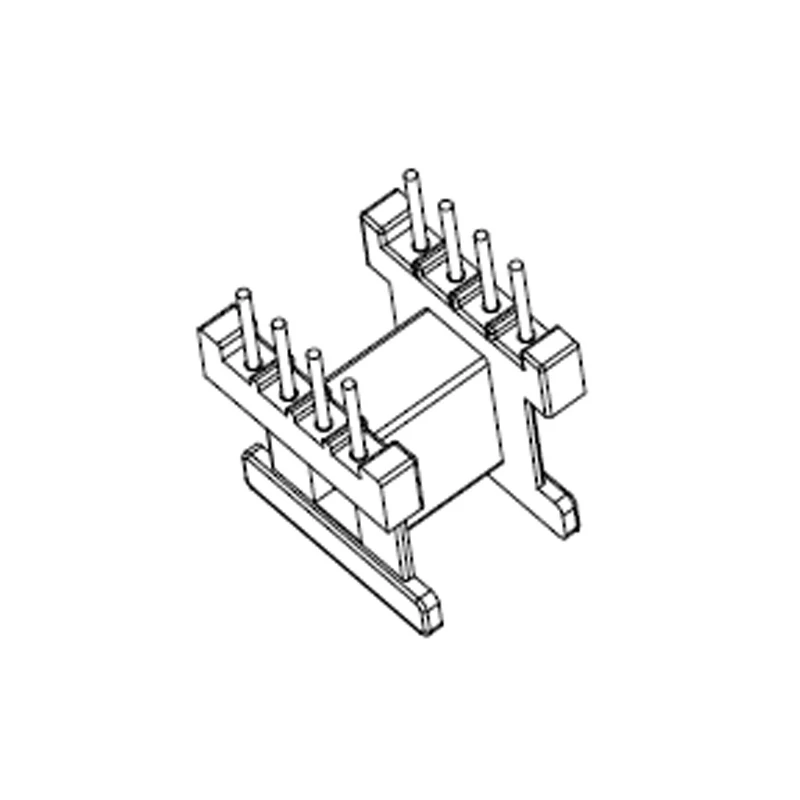

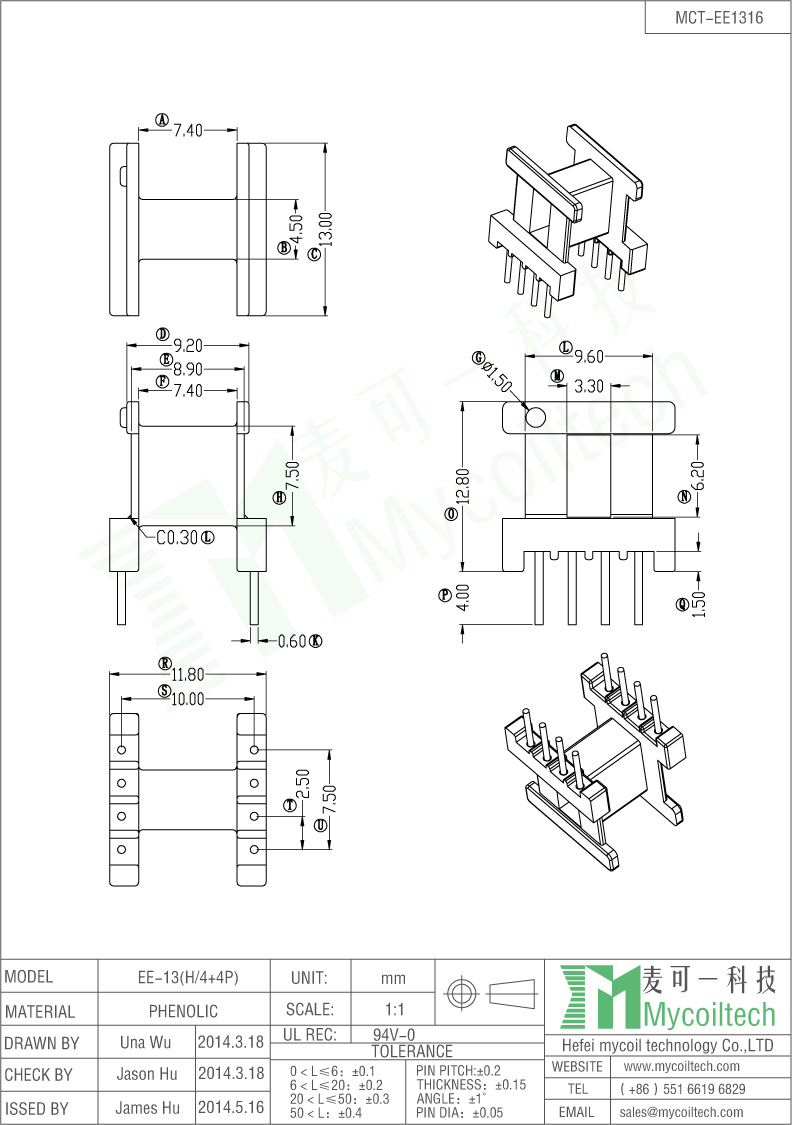

Horizontal Bobbin EE13 Transformer Bobbin Dip Type


4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0
Pin Pitch=2.5mm Parallel Distance=10mm

Size=13mmX11.8mmX12.8mm







We have been in this field for more than 10 years,our mainly market is north American and Europe,big discount now ,any requests send us email.


Quick Details

Place of Origin: Hefei,China(Mainland)

Custom Made: Available

Material:Phenolic

Part Number:MCT-EE1316(H4+4P)

Brand Name: MCT

Color: black

Certification: ISO9001,ROHS,CE

Packing: Carton,can be customized

OEM: Available

Lead Time: 25 days after payment

Logo: Can be customized

MOQ: Any quantity


Part Information

Product Name: Horizontal Bobbin EE13 Transformer Bobbin Dip Type .

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5


Product SpecificationHorizontal Bobbin EE13 Transformer Bobbin Dip Type
