Horizontal Bobbin ER28 6+6 Pins Bobbin For Ferrite Core

6+6 pin ER28 horizontal bobbin. Single slot ER28 transformer bobbin. Bobbin Size=29mmX28.2mmX24.3mm. Pin Pitch=5mm. Parallel distance=25mm. PA66 material bobbin. We can make bobbin tooling. DIP bobbin. UL REC:94V-0



Popular high frequency transformer bobbins, ER28 6+6 pins horizontal bobbin, we can send free samples in 5 days, custom design available.


Quick Details

Part No: MCT-2833

Brand Name: MCT

Material: PA66

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Horizontal Bobbin ER28 6+6 Pins Bobbin For Ferrite Core

Product Range: Transformers, inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

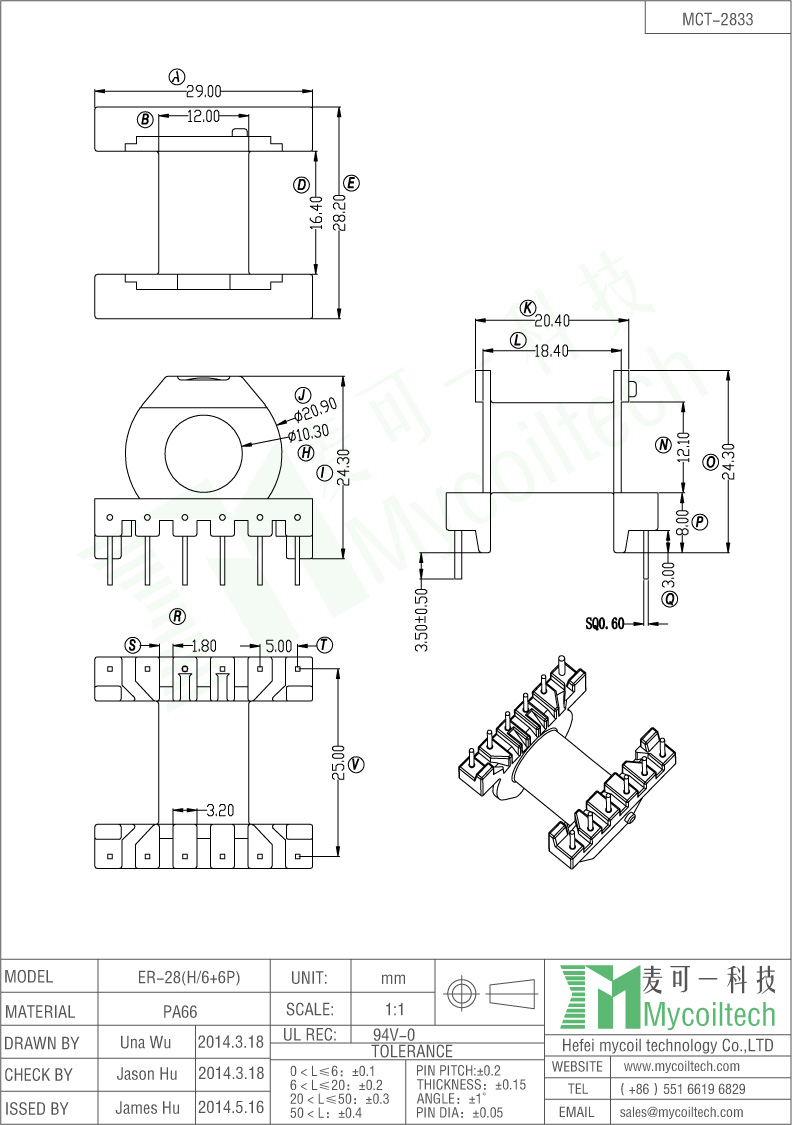

Product Specification

ER28 horizontal bobbin factory
