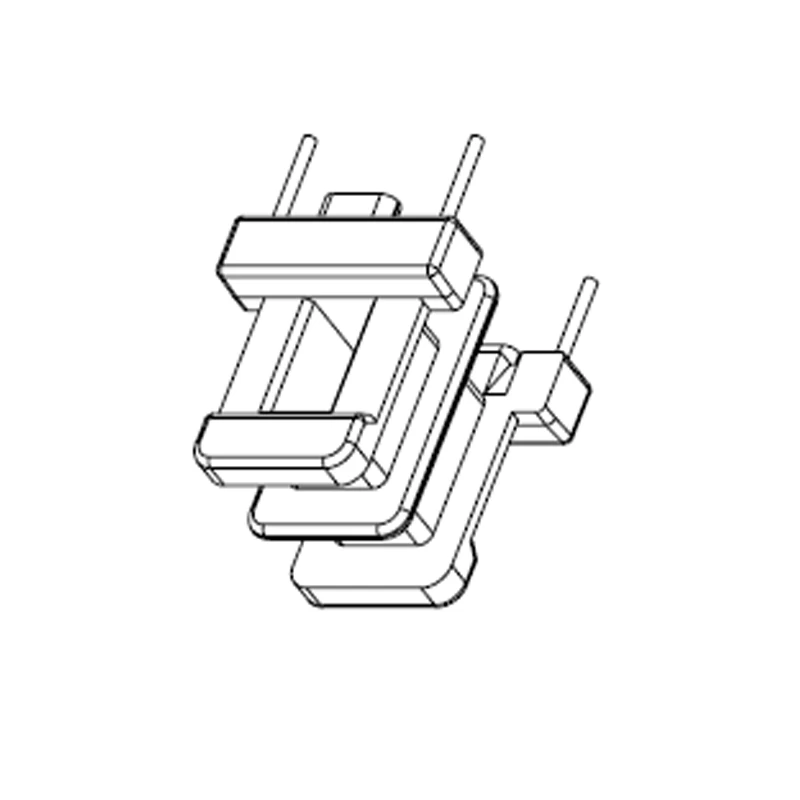

Horizontal EE10 Transformer Bobbin, with 2+2 Pin Double Slots

2+2 Pins Double Slots Bobbin,Horizontal Phenolic Bobbin

Pin pitch=7.5mm Parallel Distance=9mm
Size=11.1mmX10mmX10.5mm,UL REC:94V-0



CE/RoHS certified MCT electronic components manufacturer, direct sale high quality EE10 transformer bobbin, contact us now!



Quick Details

Place of Origin: Hefei,China(Mainland)



Custom Made: Available



Material: PA66

Part Number: MCT-EE1020(H2+2P2F)



Brand Name: MCT



Color: Black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: Horizontal EE10 Transformer Bobbin, with 2+2 Pin Double Slots

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: power supply transformers, toroidal inductors, DC-DC converters, high-frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Lily Yu

Email: sales003@mycoiltech.com

Skype:   live:sales003_125

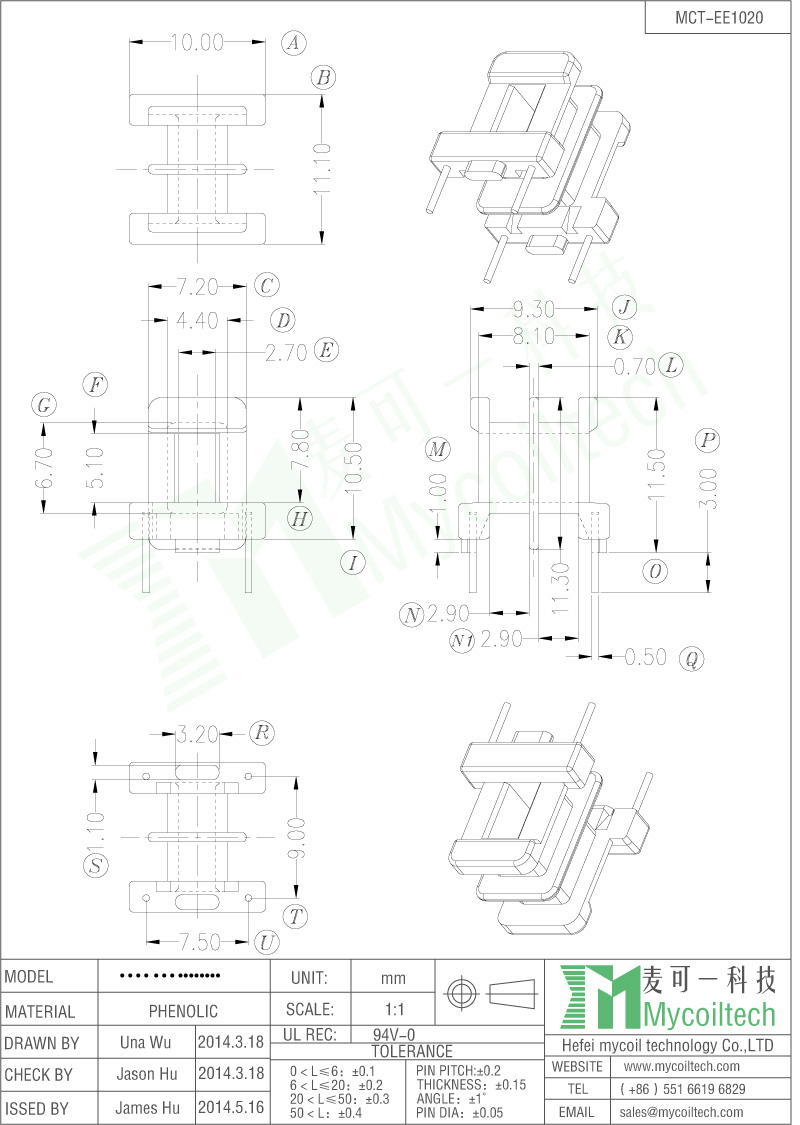

Product Specification

EE10 electronic transformer bobbin supplier
