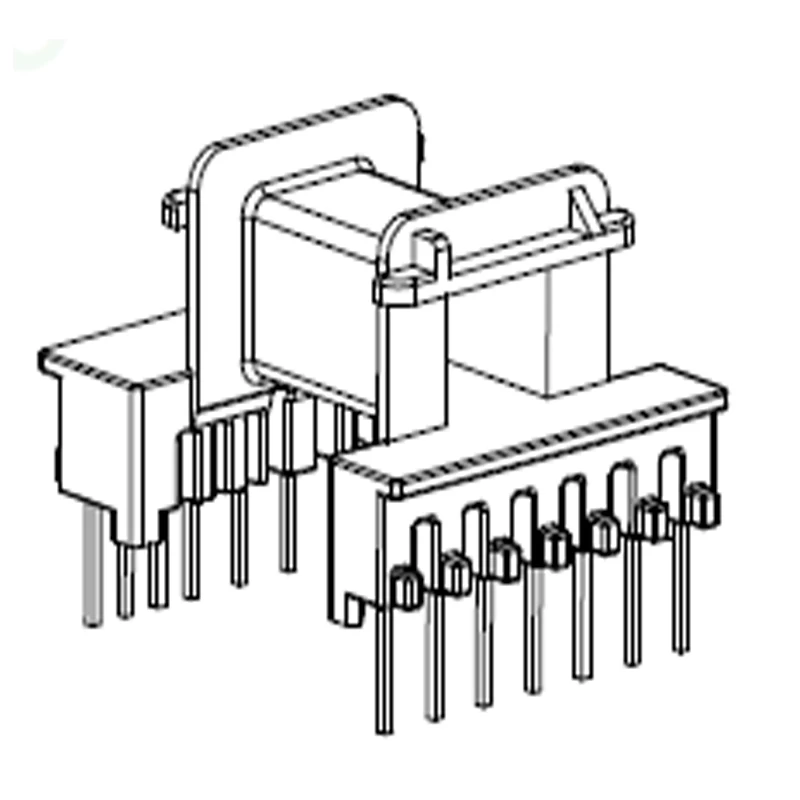

Horizontal EE25 Choke Coil Bobbin 8+7 Pin

EE25 8+7 pin horizontal transformer bobbin. EE25 single slot transformer bobbin. Parallel Distance=25.8mm. Pin Pitch=3.8mm. Size=31.5mmX25.8mmX20mm. Phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.



Competitive price horizontal 8+7 pin EE25 transformer bobbin, we custom-made for customers according to customers' dimension requirement.


Quick Details

Part Number: MCT-EE2517

Brand Name: MCT

Material: Phenoilc

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: Horizontal EE25 Choke Coil Bobbin 8+7 Pin

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

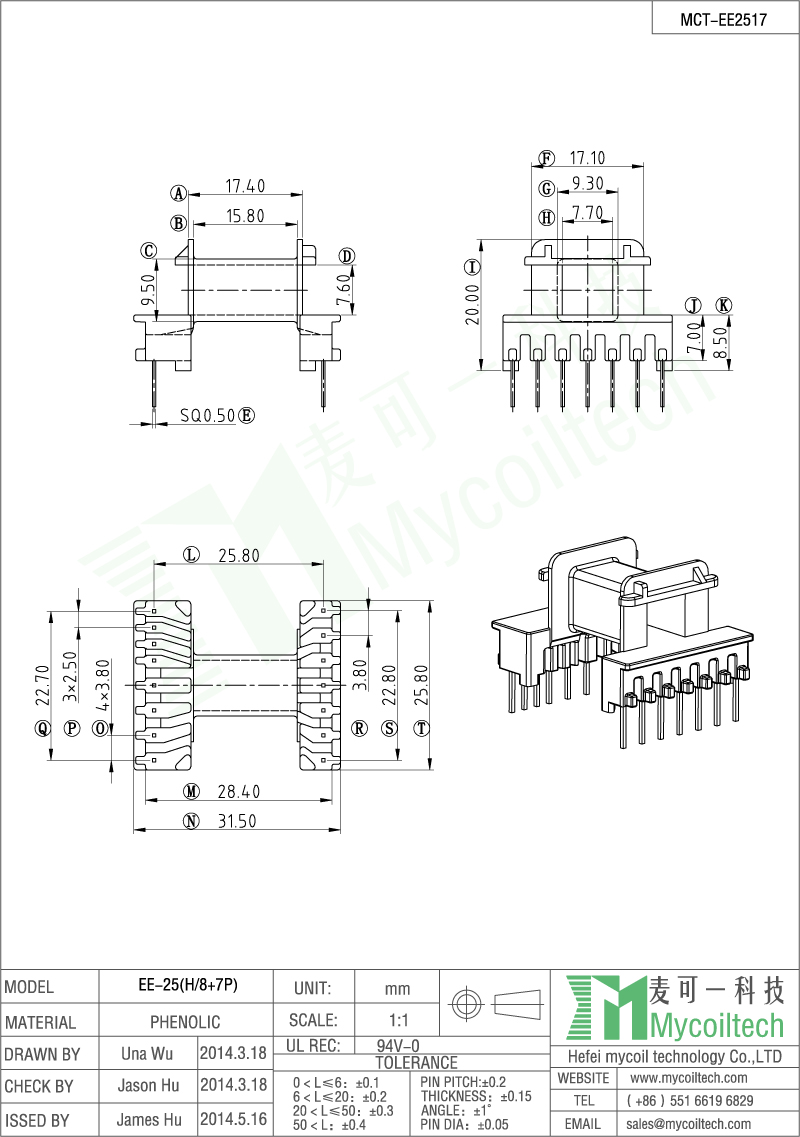

Product Specification

EE25 horizontal 8+7 pin transformer bobbin
