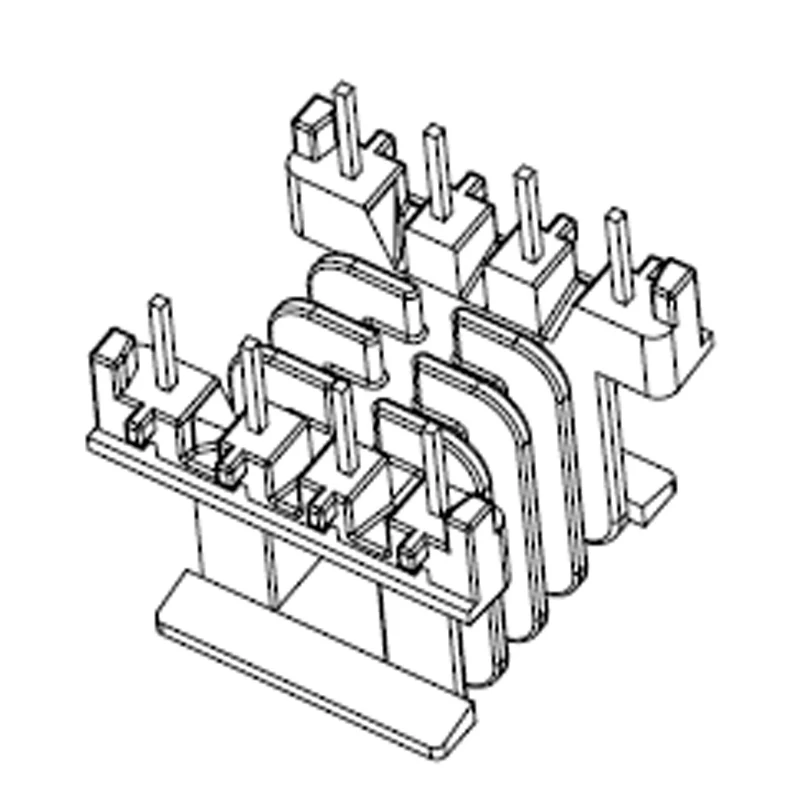

Horizontal EF20 4+4 Pins Transformer Bobbin Four Slots

4+4 pins four slots EF20 bobbin. EF20 horizontal power transformer bobbin. Bobbin Size=21mmX20.8mmX18.4mm. Parallel Distance=15mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.



2018 latest China EF20 multi section transformer bobbin, low price and high quality, accept small order, if you have any requests, welcome to contact us.


Quick Details

Part No: MCT-EF2019

Brand Name: MCT

Material: PET, Nylon

Color: White, Black, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Horizontal EF20 4+4 Pins Transformer Bobbin Four Slots

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

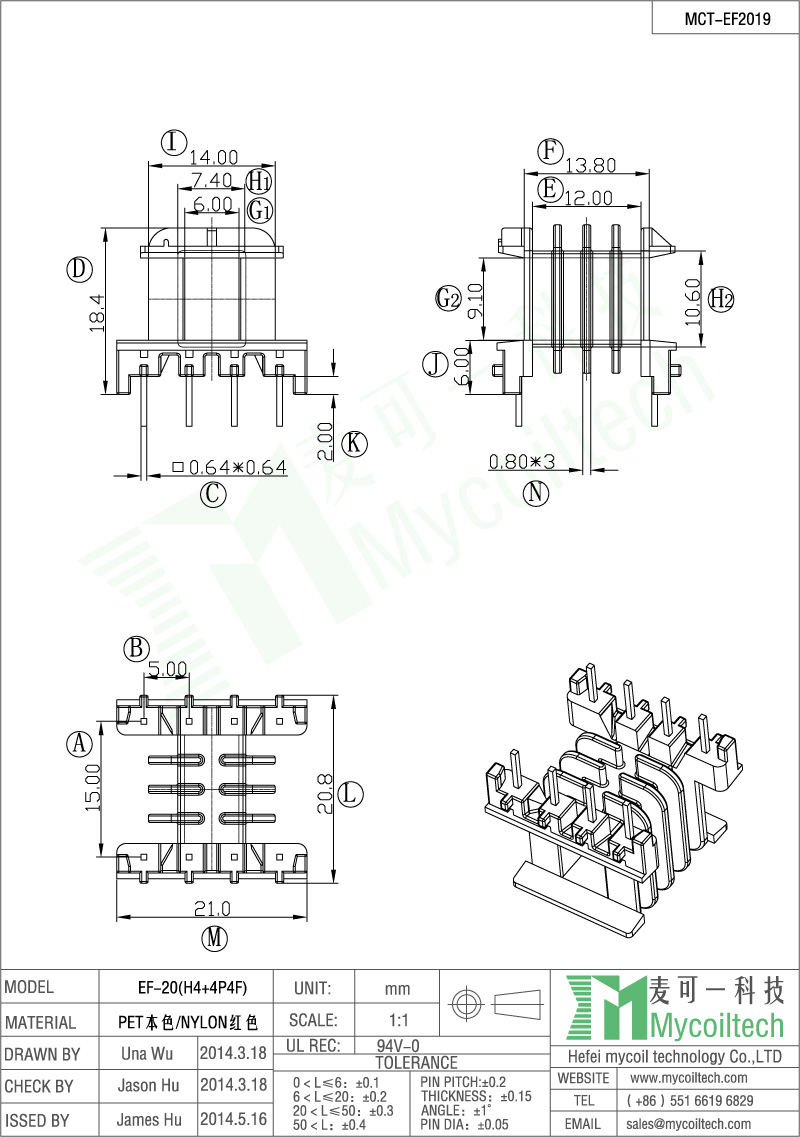

EF20 4+4 pin four slots transformer bobbin
